Description

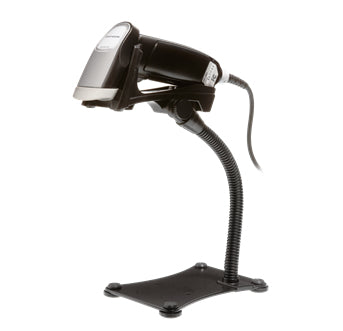

2D, CMOS, 752 x 480 pixels, USB HID, Black, w / Stand
The OPI3601 has already seen considerable success within our key market areas of Healthcare for wristband scanning and Retail for scanning of data matrix codes on retail produce and mobile phone barcodes for e-ticketing and coupon redemption.
Description
The OPI3601 is our new class leading 2D Imager based barcode scanner. Specifically designed to be one of the smallest and lightest handheld scanners available in the market today.The OPI3601 has already seen considerable success within our key market areas of Healthcare for wristband scanning and Retail for scanning of data matrix codes on retail produce and mobile phone barcodes for e-ticketing and coupon redemption.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Codablock, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Tilt reading angle | 0 - 360° |
| Sensor type | CMOS |
| Scanner type | 2D |
| Pitch reading angle | -50 - 50° |
| Optical sensor resolution (W x H) | 752 x 480 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 2.0 |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| Keys quantity | 1 keys |
| Housing material | ABS synthetics |
| Built-in display | No |
| Product colour | Black |
| Certification | CE, FCC, VCCI, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1 |
| Buzzer | Yes |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 1 keys |
| Housing material | ABS synthetics |
| Product colour | Black |
| Certification | CE, FCC, VCCI, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1 |
| Power | |
| Power consumption | 350 mA |
| Power source type | DC |
| Input voltage | 6 V |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 112 mm |
| Height | 137 mm |
| Weight | 80 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Keys quantity | 1 keys |
| Housing material | ABS synthetics |
| Built-in display | No |
| Product colour | Black |
| Certification | CE, FCC, VCCI, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1 |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
