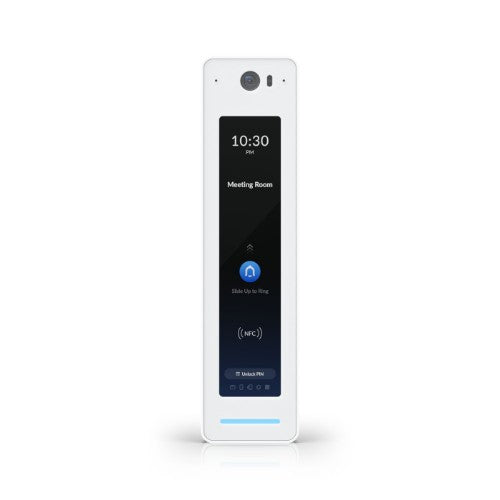

Description
160 x 40.4 x 40.55 mm, 136 g, IP55, RJ45, BLE 4.2, NFC, 48V DC
Key Features
- Unlock using an NFC card or UniFi Identity mobile app
- Doorbell to unlock, triggering the intercom with a video of a visitor
- Video works at ADA-compliant mounting height
- PIN unlocking on the screen
- Connects to UniFi Access Hub using PoE
- IP55 rain resistance (-10 to 40° C)
Description
Empower employees with a wide variety of unlock options suitable for any weather conditions.Specifications
| Technical details | |
|---|---|
| RFID frequency | 13.56 MHz |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Basic access control reader |
| Authentication type | Access chip/card |
| Fingerprint reader | No |
| Contactless working distance | 3 cm |
| Certification | CE, FCC, IC |
| Access code reader | No |
| Access chip/card reader type | Contactless |
| Access chip/card reader | Yes |
| Product colour | White, Black |
| Housing material | Aluminium, Glass, Polycarbonate (PC) |
| International Protection (IP) code | IP55 |
| Near Field Communication (NFC) | Yes |
| LED indicators | Status |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Display | |
| Built-in display | Yes |
| Camera | |
| Total megapixels | 12 MP |
| Maximum image resolution | 4000 x 3000 pixels |
| Front camera | Yes |
| Front camera type | Single camera |
| Performance | |
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Speaker power | 1.5 W |
| Ports & interfaces | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| PC connected | No |
| Contactless working distance | 3 cm |
| Near Field Communication (NFC) | Yes |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 48 V |
| Power consumption (max) | 6 W |
| Weight & dimensions | |
| Width | 40.5 mm |
| Weight | 136 g |
| Height | 160 mm |
| Depth | 40.4 mm |
| Packaging content | |
| Mounting bracket(s) included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Certification | CE, FCC, IC |
| Image sensor | |
| Total megapixels | 12 MP |
| Maximum image resolution | 4000 x 3000 pixels |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
