Description
AN600, LGA1700/1200/1151/1150/1155, AM5/AM4, 4-pin PWM, LED, 628 g

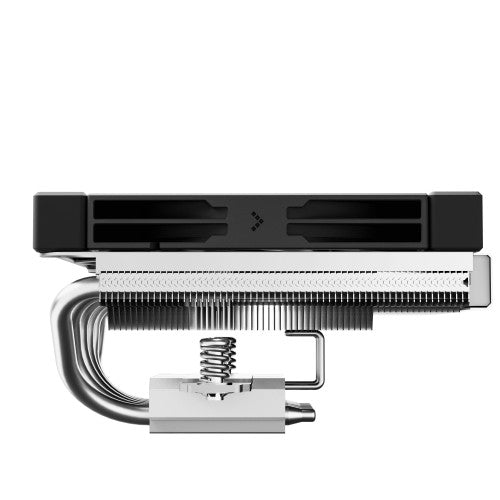

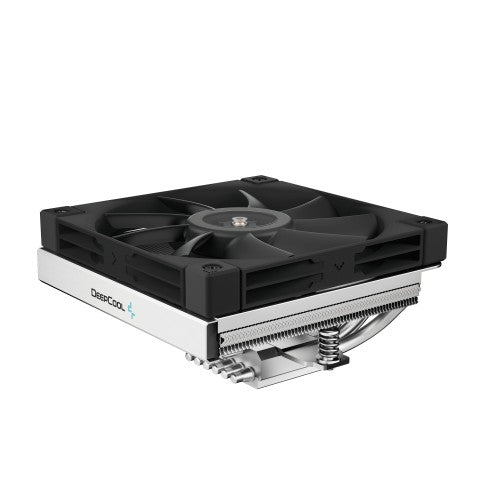

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL

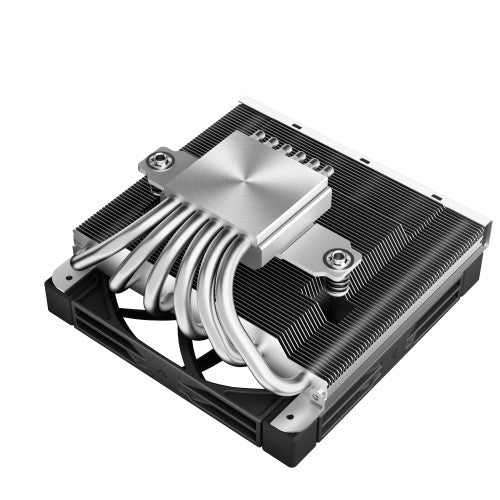

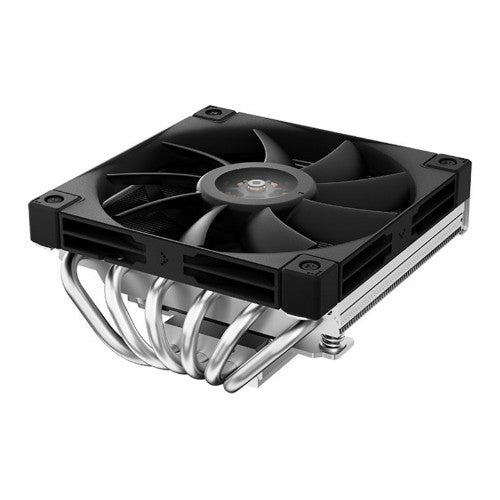

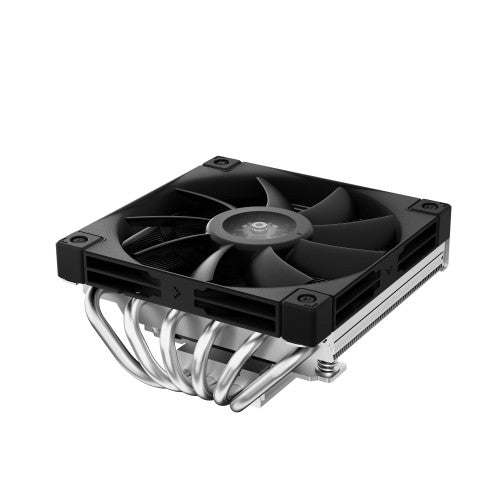

Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER

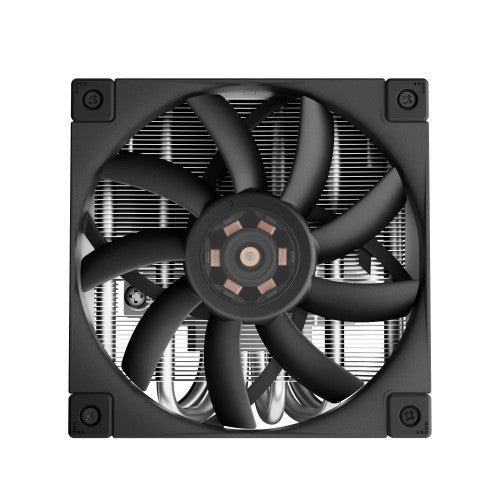

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.
SIMPLIFIED SUPPORT
The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Description
AN600The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.
AN600
Top Flow Low Profile Cooler
KEEPING THINGS COOL
Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.
MORE THAN A CPU COOLER
Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6-phase fan motor ensures all of this is accomplished while staying under 24.2 dB(A). A low-noise adapter cable is included.
SIMPLIFIED SUPPORT
The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.
Specifications
| Performance | |
|---|---|
| Suitable location | Processor |
| Fan connector | 4-pin |
| Thermal Design Power (TDP) | 180 W |
| Number of heat pipes | 6 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 61.56 cfm |
| Maximum air pressure | 1.97 mmH2O |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Number of fan blades | 9 |
| Fan noise level (max) | 24.2 dB |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 1850 RPM |
| Design | |
| Fan connector | 4-pin |
| Number of heat pipes | 6 |
| Number of fans | 1 fan(s) |
| Illumination colour | White |
| Product colour | Aluminium, Black |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Radiator material | Aluminum |
| Technical details | |
| Thermal Design Power (TDP) | 180 W |
| Number of heat pipes | 6 |
| Heat pipes diameter | 6 mm |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
| Maximum airflow | 61.56 cfm |
| Maximum air pressure | 1.97 mmH2O |
| Number of fans | 1 fan(s) |
| Fan connector | 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Thermal Design Power (TDP) | 180 W |
| Fan power consumption | 3.24 W |
| Fan voltage | 12 V |
| Fan current | 0.27 A |
| Colour | |
| Product colour | Aluminium, Black |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 15 mm |
| Heat pipes diameter | 6 mm |
| Width | 122 mm |
| Depth | 120 mm |
| Height | 67 mm |
| Weight | 628 g |
| Radiator width | 12.1 cm |
| Radiator depth | 12 cm |
| Radiator height | 5.2 cm |
| Indication | |
| Illumination colour | White |
| Packaging data | |
| Package type | Box |

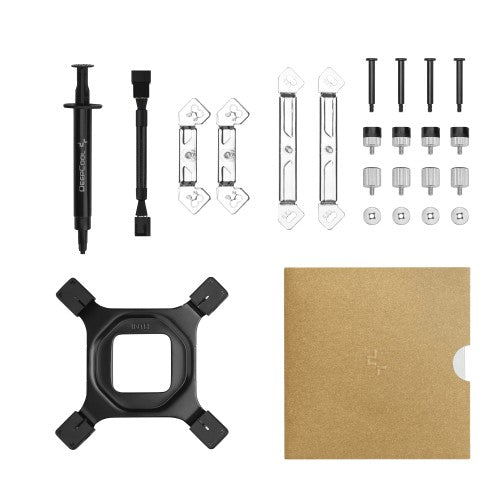

| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
