Description

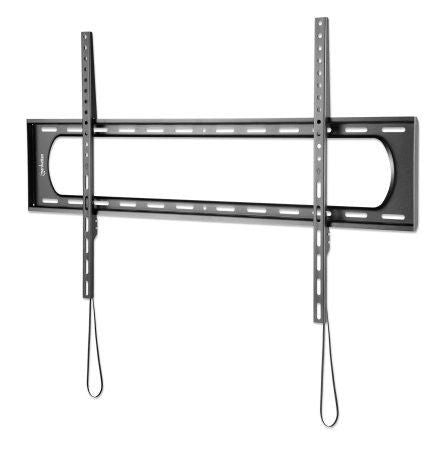

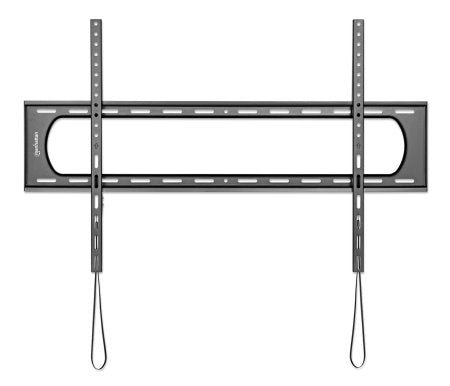

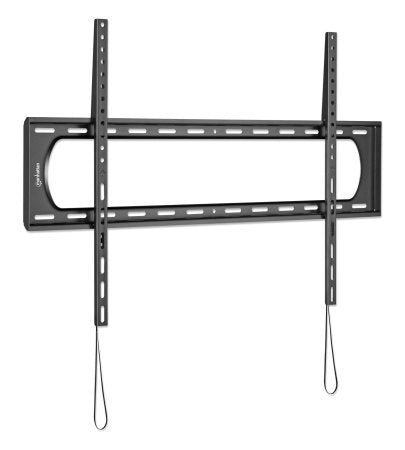

Wall Mount for TV & Monitors (Fixed Low Profile), For screens: 60" to 120", VESA compatability: all between 50x50 to 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 120kg, Black, LFD, Bracket
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This ultra-slim TV bracket extends only 35 mm (1.4 in.) from the wall. It's constructed of high-quality, powder-coated steel to fit flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one flat or curved 60" to 120" TV up to 120 kg (264 lbs.)
- Holds TV only 35 mm (1.4 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
- Ultra heavy-duty construction with 2 mm thick reinforced steel and powder coating
- Includes attachable bubble level

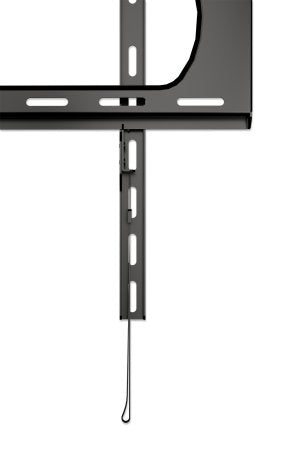

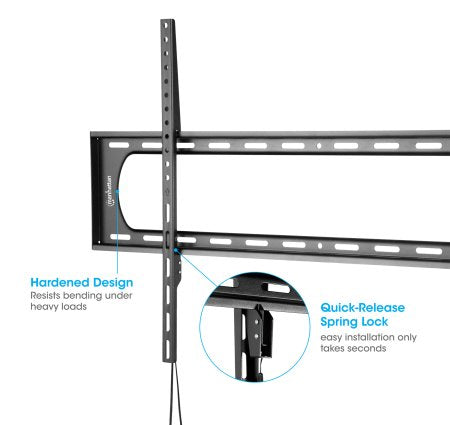

- Snap-in spring locks with release cords for easy installation or removal and additional safety
- Low-profile, fixed installation, ideal for home, office and commercial applications
- Meets VESA standards: 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600
Description
Slim Ultra Heavy-Duty XXL TV Mounting Bracket - strong mount for flush-as-possible big-screen TV installationsWhen viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This ultra-slim TV bracket extends only 35 mm (1.4 in.) from the wall. It's constructed of high-quality, powder-coated steel to fit flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 152.4 cm (60") |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 300,600 x 400,600 x 600,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600,1050 x 500,1100 x 100,1100 x 200,1200 x 400,1600 x 600 |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 900 x 600 mm |
| Maximum screen size | 3.05 m (120") |
| Maximum weight capacity | 120 kg |
| Technical details | |
| Product colour | Black |
| Mounting type | Wall |
| Orientation | Landscape |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 1005 mm |
| Height | 35 mm |
| Weight | 3.16 kg |
| Depth (max) | 62.5 cm |
| Packaging data | |
| Package weight | 3.72 kg |
| Quantity per pack | 1 pair(s) |
| Other features | |
| Mounting type | Wall |
