Description

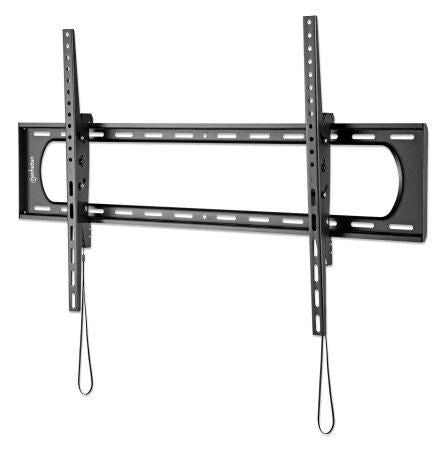

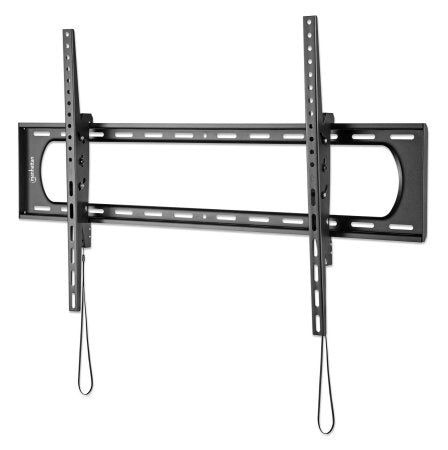

Wall Mount for TV & Monitors (Tilt), For screens: 60" to 120", VESA compatability: all between 50x50 to 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 120kg, Black, LFD, Bracket
This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless -10 to 10° tilt adjustment for optimized views. Constructed of 2 mm thick reinforced powder-coated steel, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one flat or curved 60" to 120" TV up to 120 kg (264 lbs.)

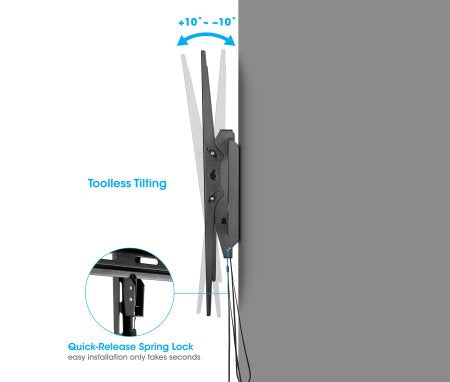

- Optimized views with +10° to -10° tilt and tool-free adjustment
- Ultra heavy-duty construction with 2 mm thick reinforced steel and powder coating
- Includes attachable bubble level

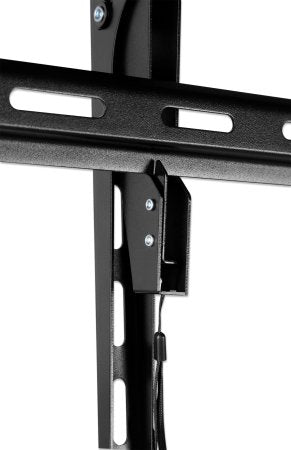

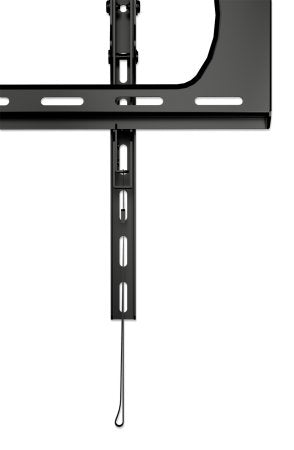

- Snap-in spring locks with release cords for easy installation or removal and additional safety
- Holds TV 80 mm (3.15 in.) from wall
- Meets VESA standards: 50x50, 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 400x400, 600x300, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 800x600, 900x600
Description
Ultra Heavy-Duty XXL Tilting TV Wall Bracket - adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glareThis tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless -10 to 10° tilt adjustment for optimized views. Constructed of 2 mm thick reinforced powder-coated steel, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 152.4 cm (60") |
| Panel mounting interface | 50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 300,600 x 400,600 x 600,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600,1050 x 500,1100 x 100,1100 x 200,1200 x 400,1600 x 600 |
| Minimum VESA mount | 50 x 50 mm |
| Maximum VESA mount | 900 x 600 mm |
| Maximum screen size | 3.05 m (120") |
| Maximum weight capacity | 120 kg |
| Ergonomics | |
| Tilt angle range | -10 - 10° |
| Tilt adjustment | Yes |
| Technical details | |
| Product colour | Black |
| Mounting type | Wall |
| Orientation | Landscape |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Manual | Yes |
| Weight & dimensions | |

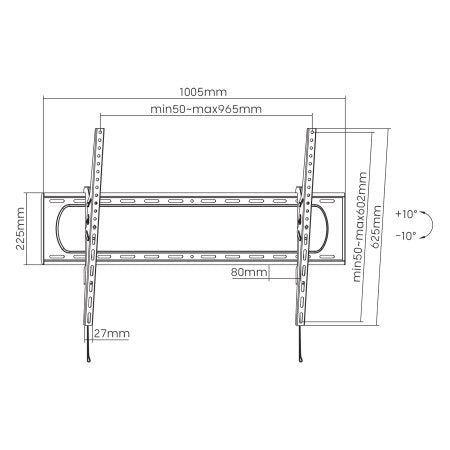

| Width | 1005 mm |
| Height | 80 mm |
| Weight | 4.29 kg |
| Depth (max) | 60.2 cm |
| Packaging data | |
| Package weight | 4.86 kg |
| Quantity per pack | 1 pair(s) |
| Manual | Yes |
| Other features | |
| Mounting type | Wall |
