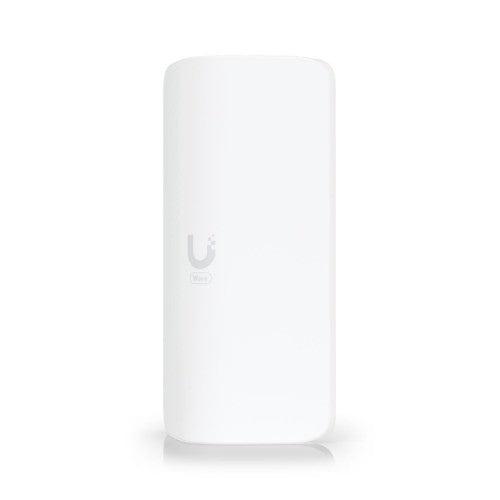

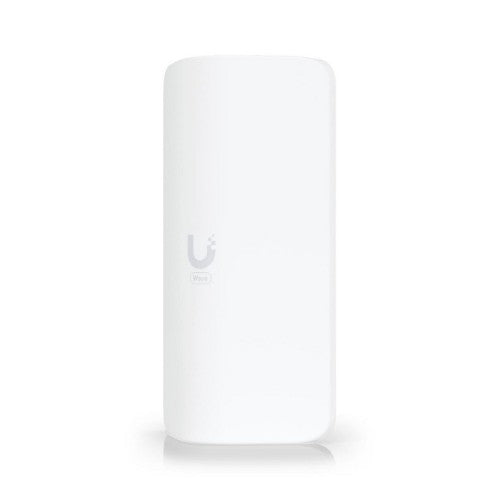

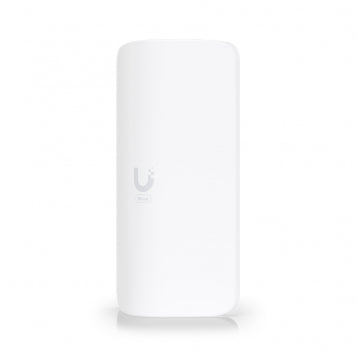

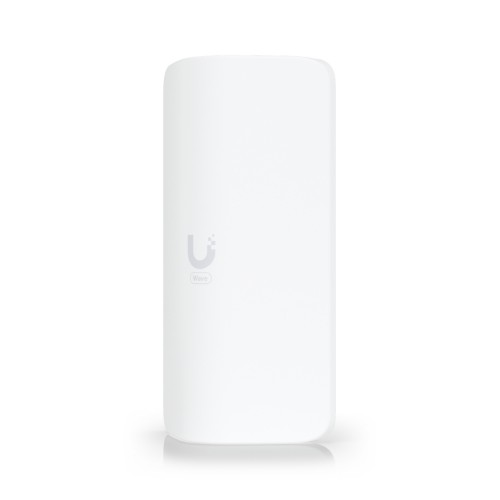

Wave AP Micro. Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
Description
The Wave AP Micro delivers 5 Gbps total throughput (2.5 Gbps duplex) and can connect up to 15 stations. It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connectivity and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
5000 Mbit/s |
| Antenna |
|---|
| Antenna gain level (max) |
20 dBi |
| Antenna type |
Internal |
| Wireless LAN features |
|---|
| Frequency band |
57 - 71 GHz |
| Antenna gain level (max) |
20 dBi |
| Antenna type |
Internal |
| Network |
|---|
| Number of users |
15 user(s) |
| Frequency band |
57 - 71 GHz |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Security algorithms |
AES, WPA2-PSK |
| Features |
|---|
| Product colour |
White |
| Reset button |
Yes |
| Processor model |
ARM Cortex-A53 |
| Processor frequency |
1.4 MHz |
| International Protection (IP) code |
IPX6 |
| LED indicators |
GPS, LAN, Link, Power |
| Internal memory |
512 MB |
| Power |
|---|
| Power consumption (max) |
24 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Management features |
|---|
| LED indicators |
GPS, LAN, Link, Power |
| Certificates |
|---|
| Certification |
FCC, IC, CE |
| Technical details |
|---|
| Product colour |
White |
| Internal memory |
512 MB |
| Weight & dimensions |
|---|
| Weight |
1.3 kg |
| Width |
284 mm |
| Depth |
156 mm |
| Height |
76 mm |
| Processor |
|---|
| Processor model |
ARM Cortex-A53 |
| Processor frequency |
1.4 MHz |
