Description
Active holder with cig-plug
Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.

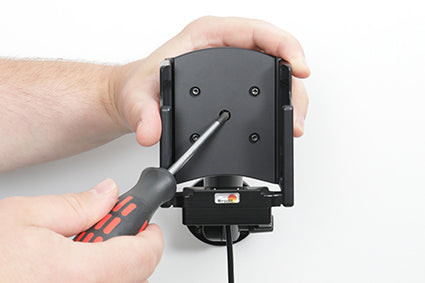

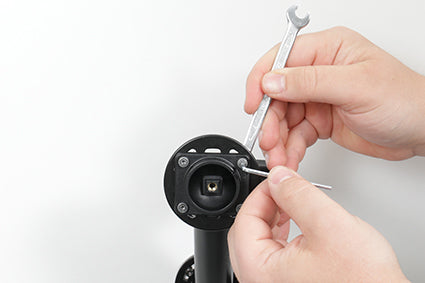

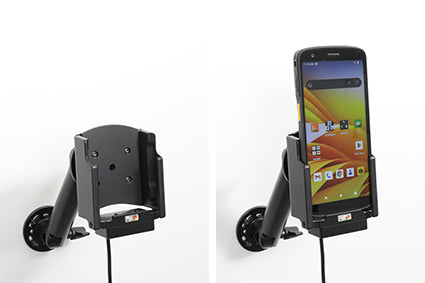

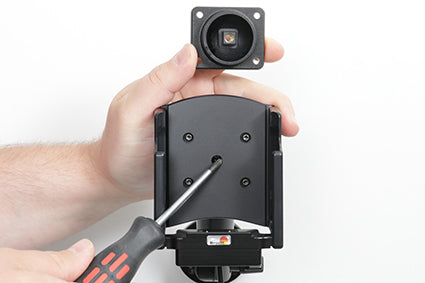

The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.
Description

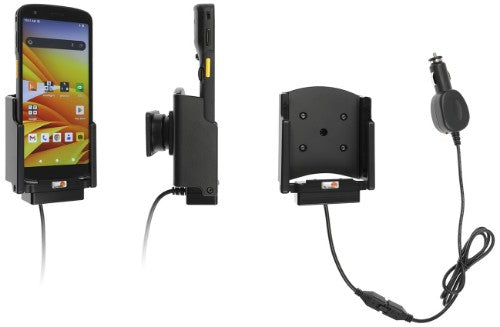

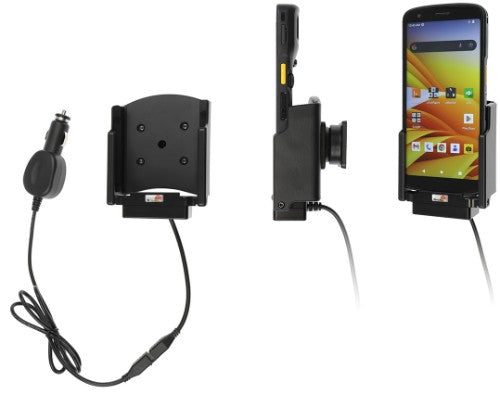

The active holder charges your battery when it is in the holder. The charging device connects to the unit automatically when you put the unit in the holder. The holder is attached onto a tilt swivel and can be adjusted in order to avoid light reflection. Connects to the vehicle's cigarette lighter socket, 12/24 Volt.Easy-switching system:
The easy-switching system enables you to upgrade the holder only, and keep the installed cables. It saves you a lot of time! When upgrading to a new device, you do not longer need to make a full installation. Same goes for maintenance in case of warranty or damage. You simply disconnect the holder from the charging cable via the Molex 6-pin quick connector, and then connect the new holder. The switch is done in a few seconds.
The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing, or switch between portrait and landscape mode. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden. Attach onto a Pedestal Mount or an ProClip mounting platform.
Specifications
| Design | |
|---|---|
| Device mount type | Screw mount |
| Mobile device type | Mobile computer, Mobile phone/Smartphone |
| Compatibility | Zebra TC27, TC22, HC50, HC20 |
| Type | Active holder |
| Proper use | Car/Indoor |
| Product colour | Black |
| Material | Acetal, Acrylonitrile butadiene styrene (ABS) |
| Country of origin | Sweden |
| Ergonomics | |
| Swivel angle | 360° |
| Tilt angle range | 0 - 17° |
| Built-in charger | Yes |
| Technical details | |
| Mobile device type | Mobile computer, Mobile phone/Smartphone |
| Compatibility | Zebra TC27, TC22, HC50, HC20 |
| Type | Active holder |
| Proper use | Car/Indoor |
| Product colour | Black |
| Material | Acetal, Acrylonitrile butadiene styrene (ABS) |
| Tilt angle range | 0 - 17° |
| Country of origin | Sweden |
| Built-in charger | Yes |
| Swivel angle | 360° |
| Power | |
| DC voltage range | 10 - 24 V |
| Built-in charger | Yes |
| Weight & dimensions | |
| Width | 81 mm |
| Depth | 65 mm |
| Height | 108 mm |
| Weight | 213 g |
