Description

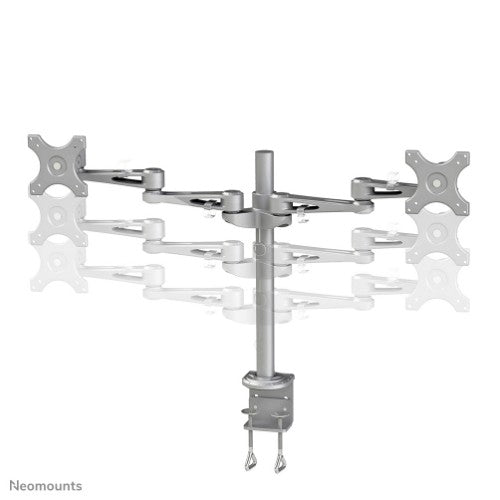

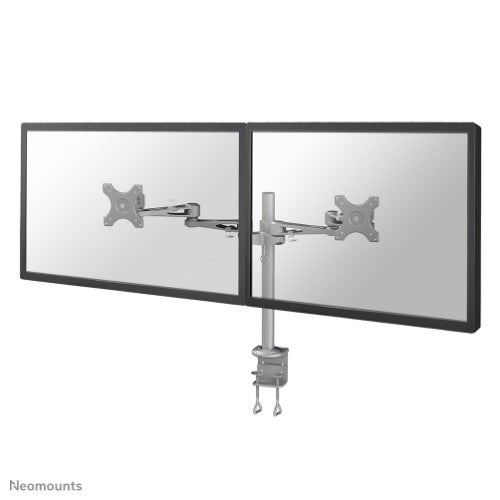

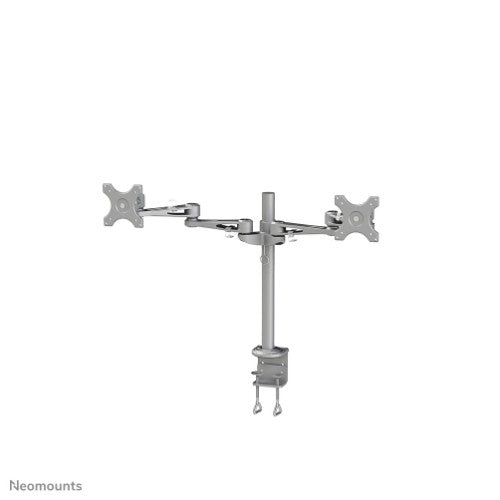

Neomounts FPMA-D935D Dual monitor arm - 14-27" - 0-6 kg/screen - silver

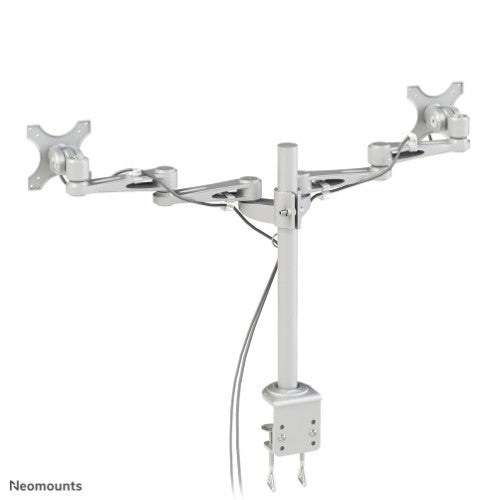

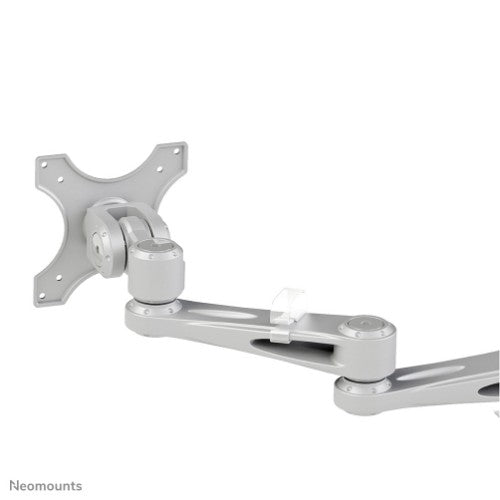

Neomounts versatile tilt (180°), rotate (360°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 50 centimetres. Depth adjustable from 12 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

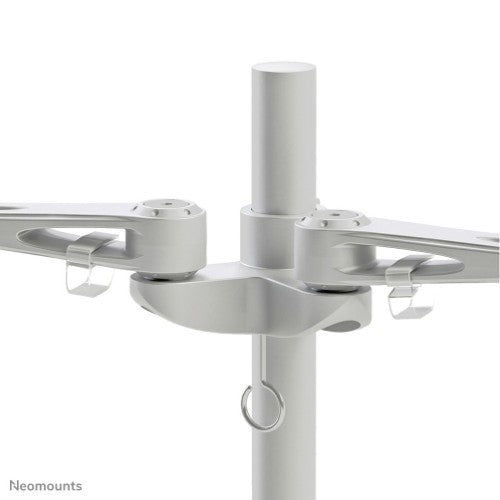

Neomounts FPMA-D935D has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts desk mount, model FPMA-D935D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp.Neomounts versatile tilt (180°), rotate (360°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 50 centimetres. Depth adjustable from 12 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D935D has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 6 kg |
| Desk thickness (min) | 3 cm |
| Desk thickness (max) | 9.7 cm |
| Minimum screen size | 35.6 cm (14") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |

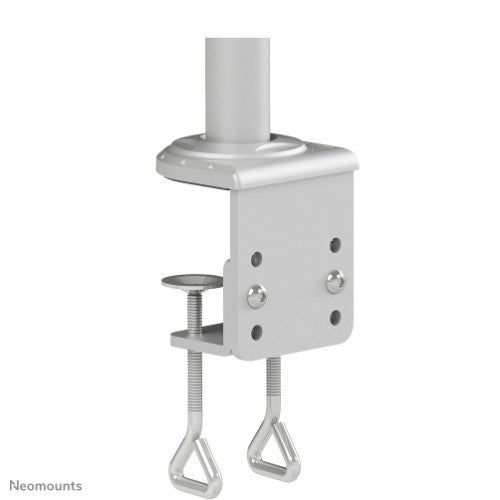

| Mounting | Clamp |
| Distance to the wall (min) | 12 cm |
| Distance to the wall (max) | 50 cm |
| Maximum screen size | 68.6 cm (27") |
| Ergonomics | |
| Cable management | Yes |
| Depth adjustment range | 120 - 500 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 500 mm |
| Remotely operated | No |
| Swivel angle | 180° |
| Tilt angle range | 0 - 180° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Silver |
| Housing material | Aluminium |
| Display | |
| Mounting interface | VESA 75x75mm - 100x100mm |
| Technical details | |
| Remotely operated | No |
| Mounting type | Desk |
| Distance to the wall (min) | 12 cm |
| Distance to the wall (max) | 50 cm |
| Product colour | Silver |
| Width adjustment range | 0 - 832 mm |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 832 mm |
| Depth | 514 mm |
| Height | 686 mm |
| Weight | 5.61 kg |
| Package width | 564 mm |
| Package depth | 230 mm |
| Package height | 118 mm |
| Package weight | 5.3 kg |
| Packaging data | |
| Package width | 564 mm |
| Package depth | 230 mm |
| Package height | 118 mm |
| Package weight | 5.3 kg |
| Other features | |
| Width adjustment range | 0 - 832 mm |
| Mounting interface | VESA 75x75mm - 100x100mm |
| Mounting type | Desk |
| Mounting | Clamp |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case width | 590 mm |
| Master (outer) case length | 265 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 12.7 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | Taiwan |
| Products per pallet (EU) | 60 pc(s) |
| Master (outer) case net weight | 11.9 kg |
| Harmonized System (HS) code | 83025000 |
