Description
Neomounts NEXT Lite DS60-425WH2 Dual monitor arm - 17-27" - 0-8 kg/screen - space saving T-Rex model - 100% plastic-free packaging - white
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425WH2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Description

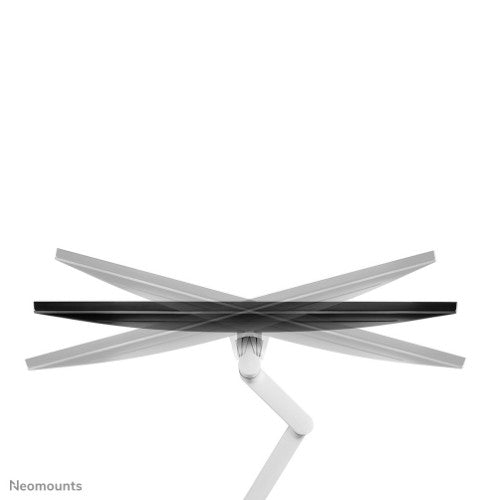

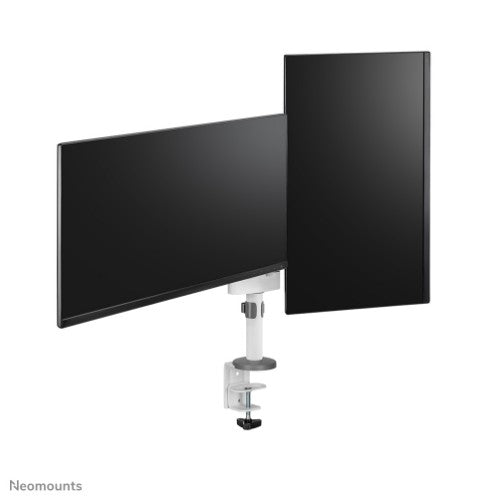

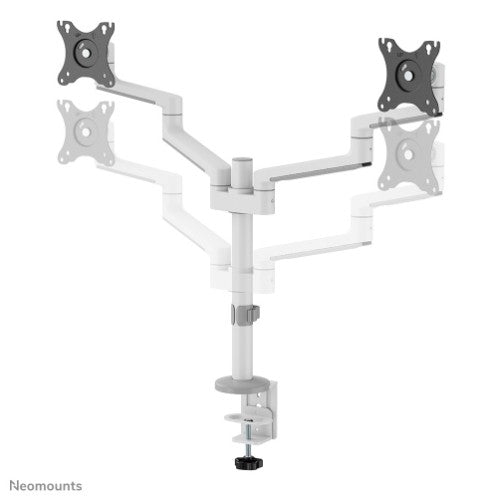

The Neomounts DS60-425WH2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425WH2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 12.8 cm |
| Distance to the wall (max) | 46 cm |
| Maximum screen size | 68.6 cm (27") |
| Clamp mount desk thickness (max) | 8 cm |
| Grommet mount desk thickness (max) | 4 cm |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 66 - 398 mm |
| Height adjustment | Yes |
| Height adjustment range | 295 - 607 mm |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -30 - 90° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Feet | Yes |
| Feet colour | Black |
| Swivelling | Yes |
| Design | |
| Product colour | White |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Accepts padlock | No |
| Technical details | |
| Mounting type | Desk |
| Distance to the wall (min) | 12.8 cm |
| Distance to the wall (max) | 46 cm |
| Product colour | White |
| Width adjustment range | 0 - 332 mm |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 888 mm |
| Depth | 460 mm |
| Height | 763 mm |
| Weight | 3.78 kg |
| Package width | 210 mm |
| Package depth | 105 mm |
| Package height | 440 mm |
| Package weight | 4.6 kg |
| Package net weight | 4.6 kg |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 105 mm |
| Package height | 440 mm |
| Package weight | 4.6 kg |
| Package net weight | 4.6 kg |
| Quantity per pack | 1 pc(s) |
| Clamp included | Yes |
| Packaging content | |
| Clamp included | Yes |
| VESA mount included | Yes |
| Other features | |
| Width adjustment range | 0 - 332 mm |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 220 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 455 mm |
| Master (outer) case gross weight | 18.4 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 84 pc(s) |
| Master (outer) case net weight | 15.1 kg |
| Harmonized System (HS) code | 7326909890 |
