Description

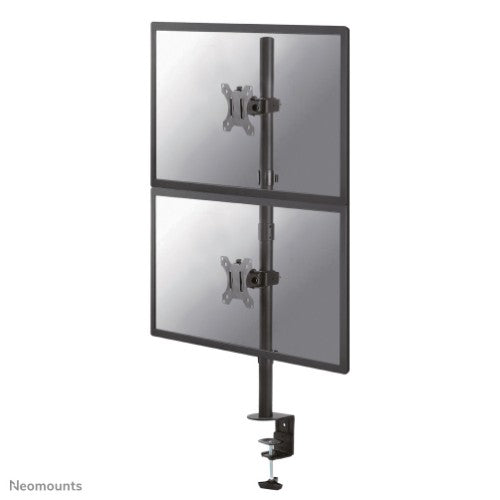

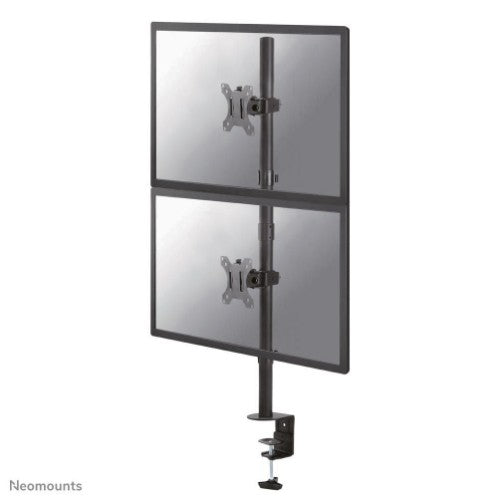

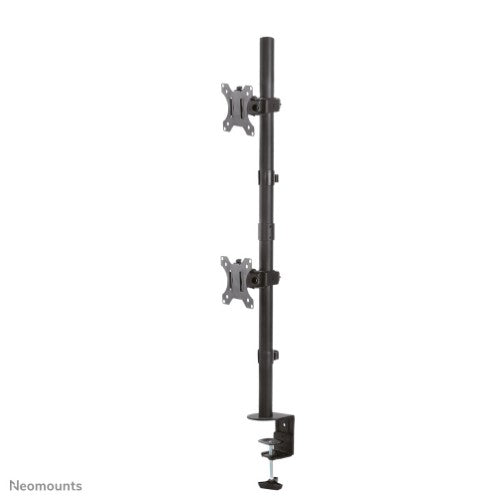

Neomounts FPMA-D550DVBLACK Dual monitor arm - 10-32" - 0-6 kg/screen - vertical installation - black

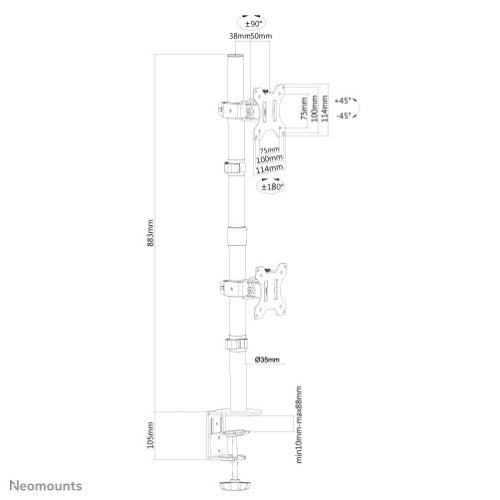

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount has a height of 88 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550DVBLACK has one pivot point and is suitable for screens up to 32". The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

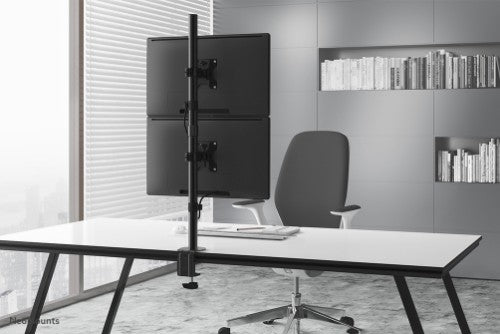

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts desk mount, model FPMA-D550DVBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount has a height of 88 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550DVBLACK has one pivot point and is suitable for screens up to 32". The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 6 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum screen size | 81.3 cm (32") |
| Suitable for TV | Yes |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 880 mm |
| Swivel angle | 180° |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Number of pivot points | 1 |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Number of pivot points | 1 |
| Mounting type | Desk |
| Product colour | Black |
| Weight & dimensions | |
| Height | 988 mm |
| Weight | 4.2 kg |
| Package width | 150 mm |
| Package depth | 120 mm |
| Package height | 489 mm |
| Package weight | 4.9 kg |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 120 mm |
| Package height | 489 mm |
| Package weight | 4.9 kg |
| Logistics data | |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 1040 mm |
| Master (outer) case gross weight | 4.9 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 80 pc(s) |
| Master (outer) case net weight | 4.9 kg |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
