Description

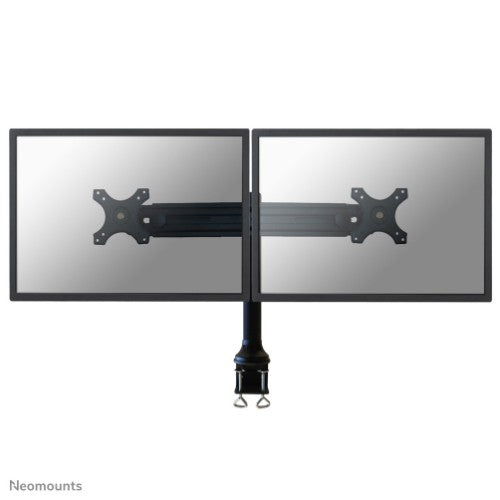

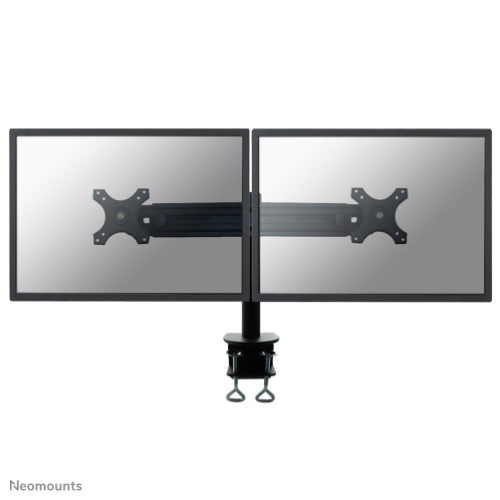

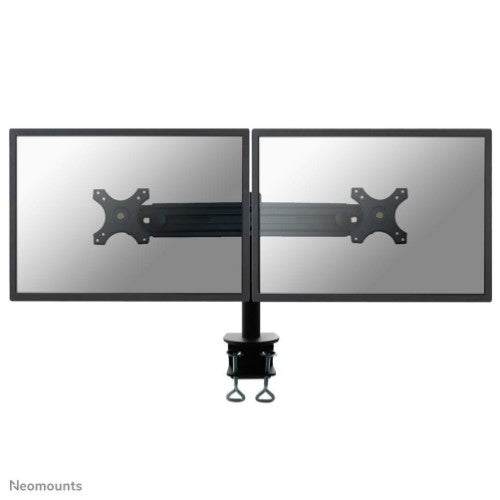

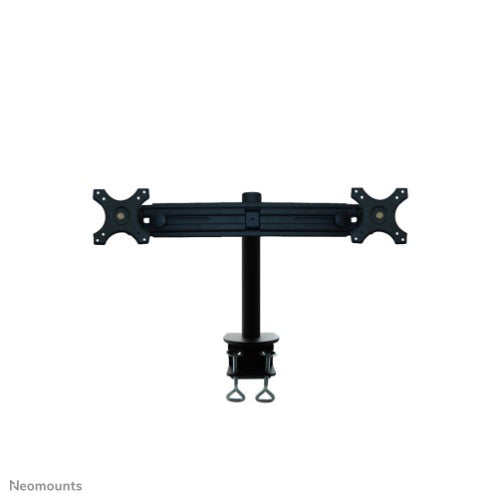

Neomounts FPMA-D700D Dual monitor arm - 19-30" - 0-8 kg/screen - black
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 52 to 83 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700D has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts desk mount, model FPMA-D700D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 52 to 83 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700D has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.

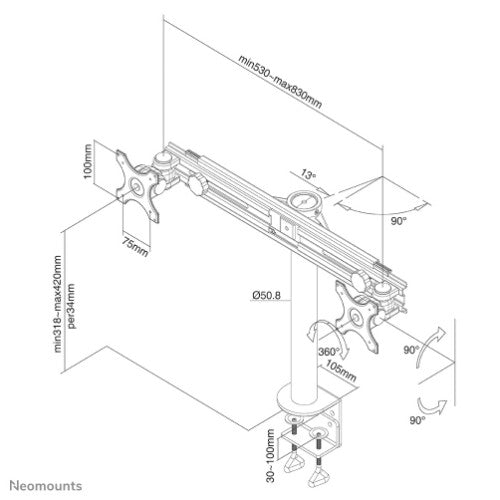

Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (max) | 9 cm |
| Minimum screen size | 48.3 cm (19") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Maximum screen size | 76.2 cm (30") |
| Ergonomics | |
| Depth adjustment range | 0 - 150 mm |
| Height adjustment | Yes |
| Height adjustment range | 320 - 420 mm |
| Swivel angle | 180° |
| Tilt angle range | 0 - 180° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Width adjustment range | 520 - 830 mm |
| Weight & dimensions | |
| Width | 830 mm |
| Depth | 150 mm |
| Height | 420 mm |
| Weight | 6.57 kg |
| Package width | 703 mm |
| Package depth | 345 mm |
| Package height | 170 mm |
| Package weight | 7.2 kg |
| Packaging data | |
| Package width | 703 mm |
| Package depth | 345 mm |
| Package height | 170 mm |
| Package weight | 7.2 kg |
| Other features | |
| Width adjustment range | 520 - 830 mm |
| Mounting type | Desk |
| Mounting | Clamp |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case width | 703 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 8.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Products per pallet (EU) | 30 pc(s) |
| Master (outer) case net weight | 7.2 kg |
| Harmonized System (HS) code | 7326909890 |
