Description

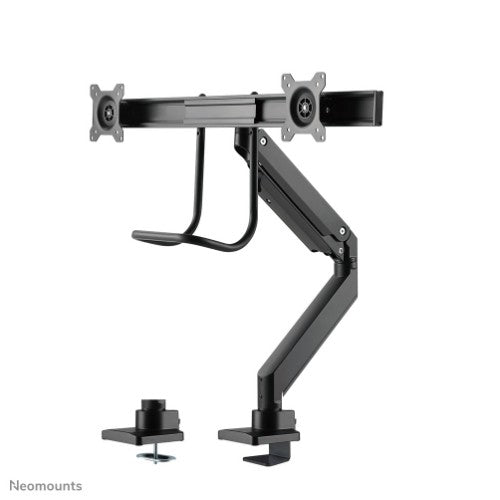

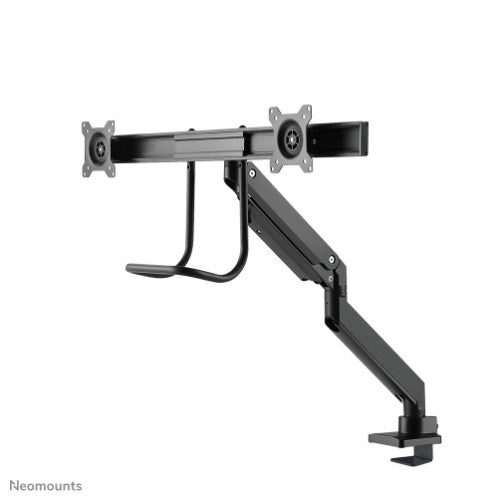

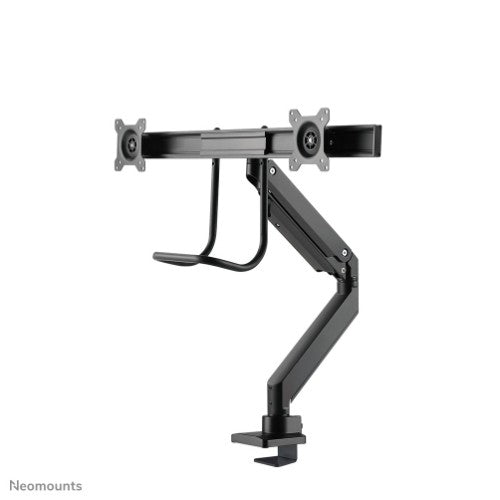

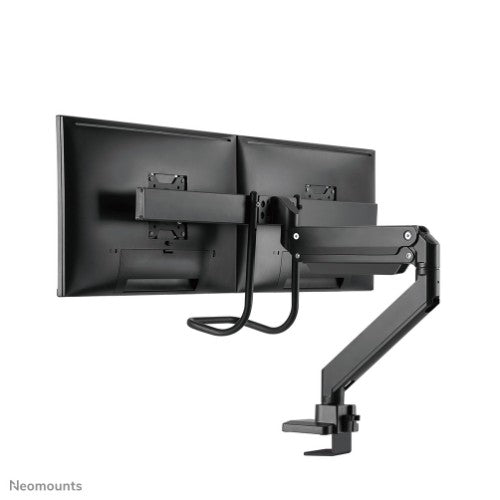

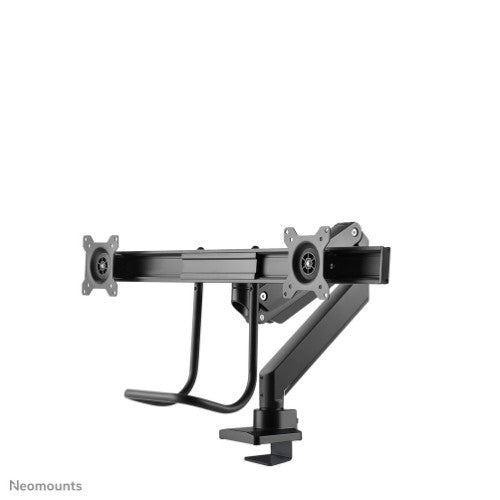

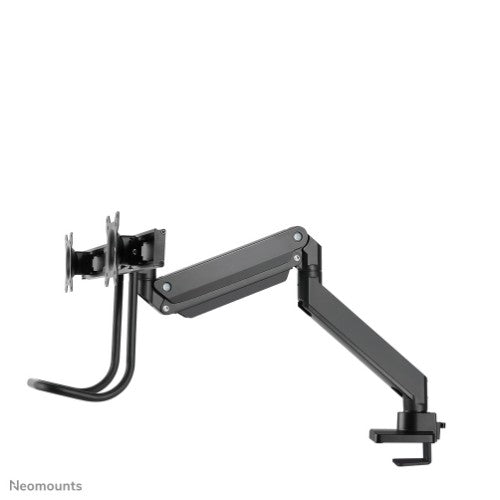

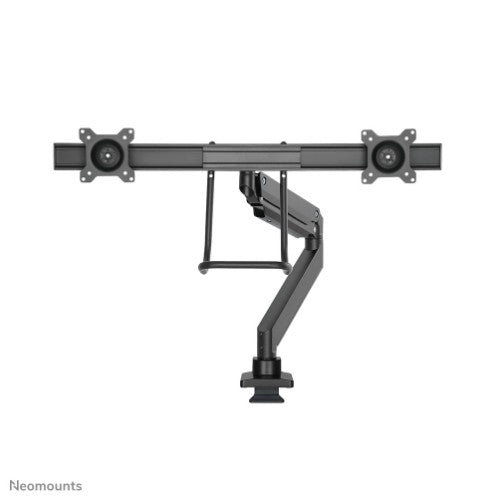

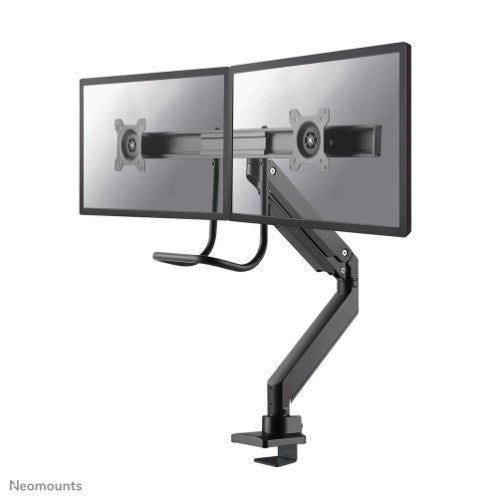

Neomounts NM-D775DXBLACK Dual crossbar monitor arm - 10-32" - 1-8 kg/screen - gas spring - 180°-stop - Topfix - black
Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXBLACK with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts NM-D775DXBLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXBLACK with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |
| Cable management | Yes |
| Depth adjustment range | 0 - 630 mm |
| Height adjustment | Yes |
| Height adjustment range | 270 - 600 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 360° |
| Tilt angle range | -10 - 10° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Height | 600 mm |
| Weight | 5.92 kg |
| Package width | 225 mm |
| Package depth | 150 mm |
| Package height | 895 mm |
| Package weight | 9 kg |
| Package net weight | 8.95 kg |
| Packaging data | |
| Package width | 225 mm |
| Package depth | 150 mm |
| Package height | 895 mm |
| Package weight | 9 kg |
| Package net weight | 8.95 kg |
| Other features | |
| Minimum weight | 1 kg |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 910 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 22 pc(s) |
| Master (outer) case net weight | 9 kg |
| Harmonized System (HS) code | 7326909890 |
