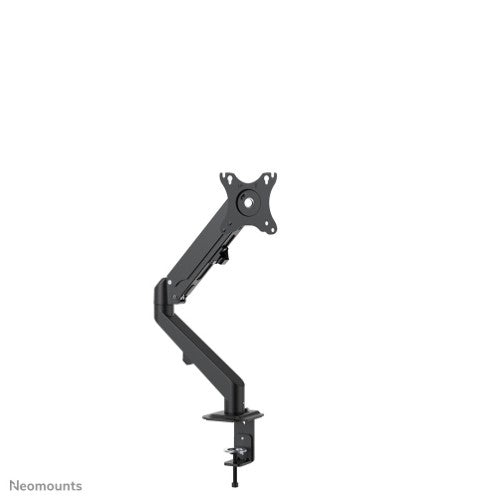

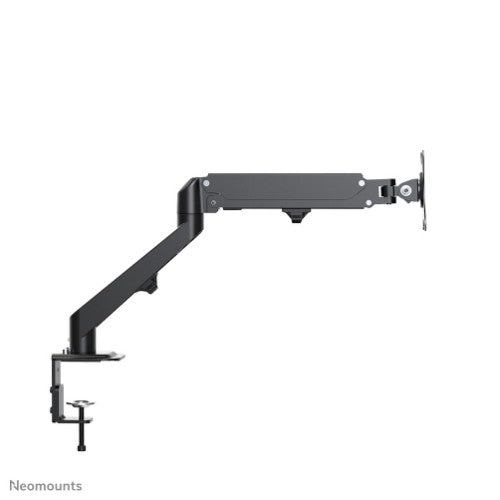

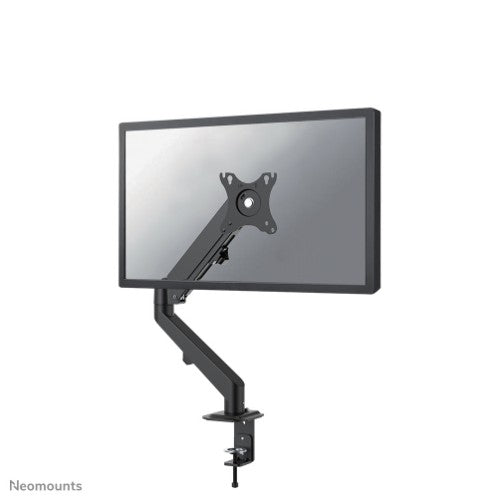

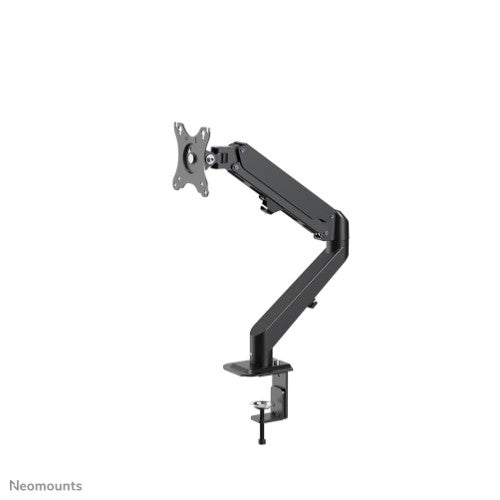

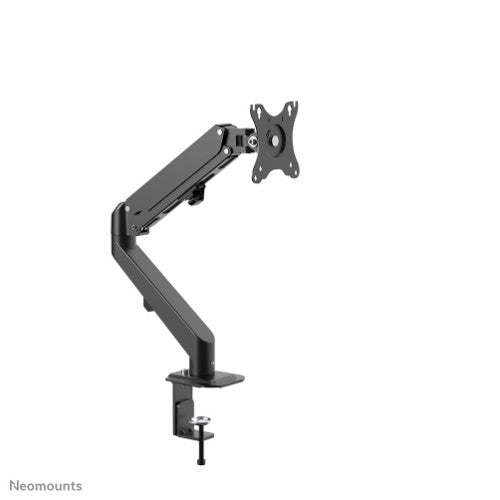

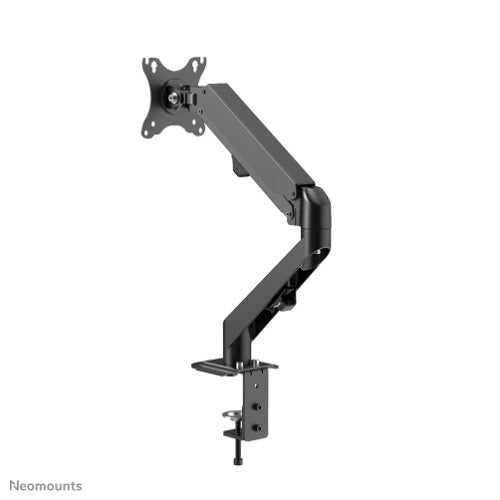

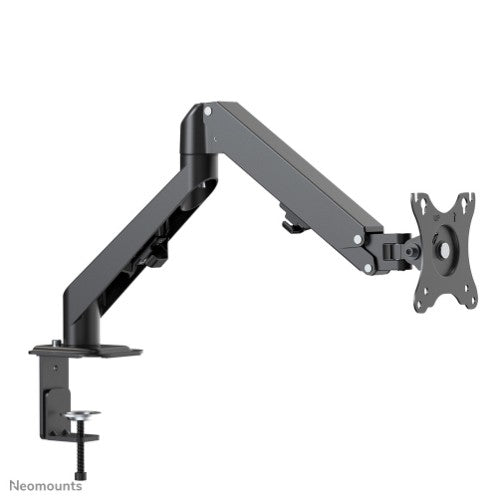

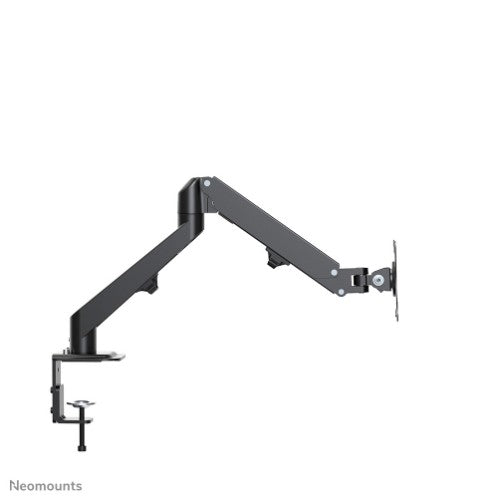

Neomounts DS70-700BL1 Single monitor arm - 17-27" - 2-7 kg - gas spring - black
The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.
Description
The Neomounts DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 7 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Maximum weight capacity | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Maximum weight capacity (per curved/ultra-wide display) | 7 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 480 mm |
| Height adjustment | Yes |
| Height adjustment range | 152 - 402 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -45 - 90° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 2 kg |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 117 mm |
| Depth | 542 mm |
| Height | 566 mm |
| Weight | 2.1 kg |
| Package width | 405 mm |
| Package depth | 270 mm |
| Package height | 90 mm |
| Package weight | 2.5 kg |
| Package net weight | 2.5 kg |
| Packaging data | |
| Package width | 405 mm |
| Package depth | 270 mm |
| Package height | 90 mm |
| Package weight | 2.5 kg |
| Package net weight | 2.5 kg |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Minimum weight | 2 kg |
| Mounting type | Desk |
| Mounting | Clamp |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 270 mm |
| Master (outer) case height | 90 mm |
| Master (outer) case gross weight | 2.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 135 pc(s) |
| Master (outer) case net weight | 2.1 kg |
| Harmonized System (HS) code | 7326909890 |
