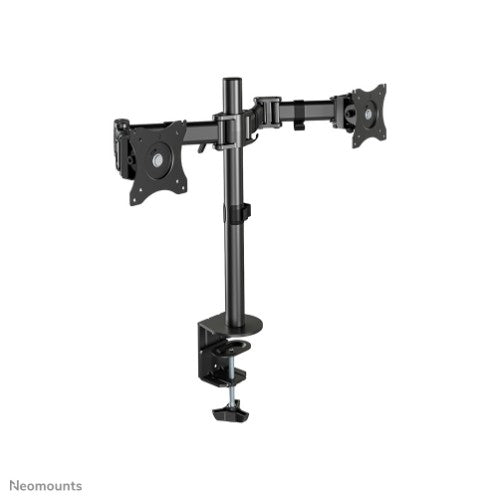

Neomounts NM-D135DBLACK Dual monitor arm - 10-27" - 0-8 kg/screen - black

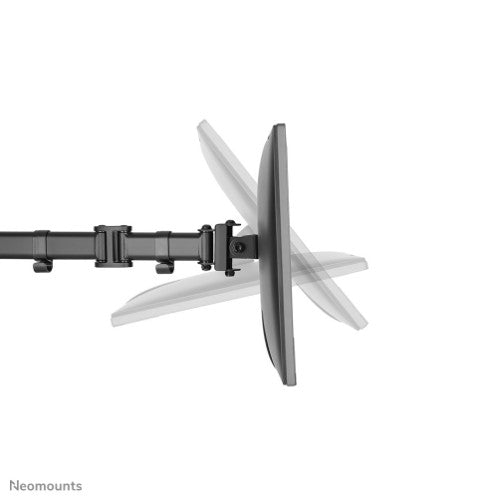

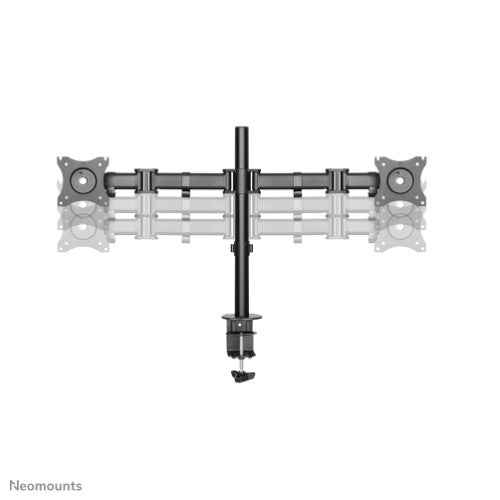

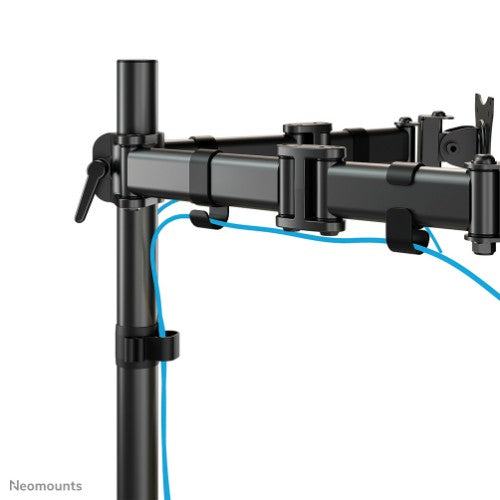

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 42,7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135DBLACK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts desk mount, model NM-D135DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 42,7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135DBLACK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 9 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 43 cm |
| Maximum screen size | 68.6 cm (27") |
| Ergonomics | |
| Depth adjustment range | 0 - 427 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 415 mm |
| Swivel angle | 180° |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Distance to the wall (min) | 4 cm |
| Distance to the wall (max) | 43 cm |
| Product colour | Black |
| Weight & dimensions | |
| Depth | 427 mm |
| Height | 415 mm |
| Weight | 5 kg |
| Package width | 150 mm |
| Package depth | 130 mm |
| Package height | 473 mm |
| Package weight | 4.4 kg |
| Package net weight | 4.44 kg |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 130 mm |
| Package height | 473 mm |
| Package weight | 4.4 kg |
| Package net weight | 4.44 kg |
| Logistics data | |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 270 mm |
| Master (outer) case gross weight | 20.1 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 120 pc(s) |
| Master (outer) case net weight | 17.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
