Description

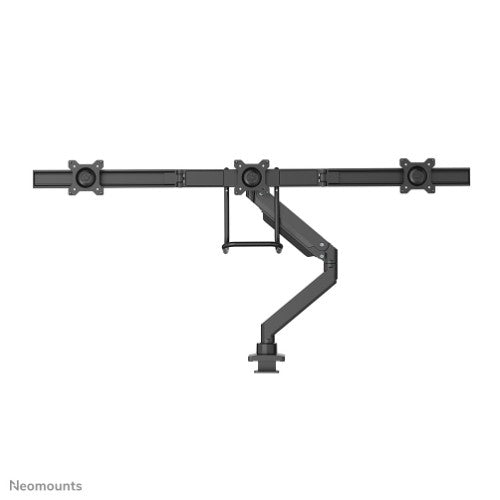

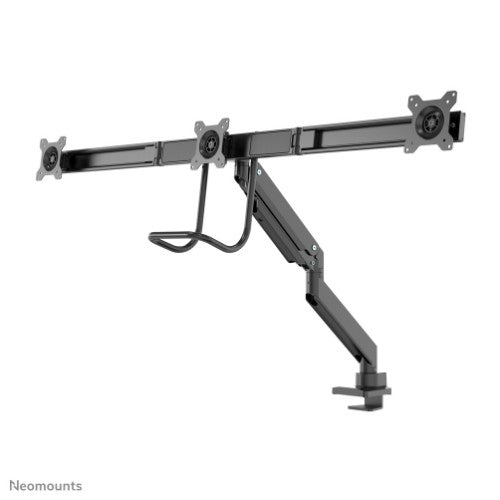

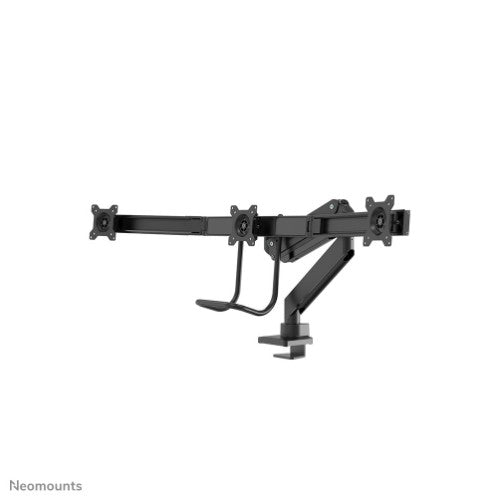

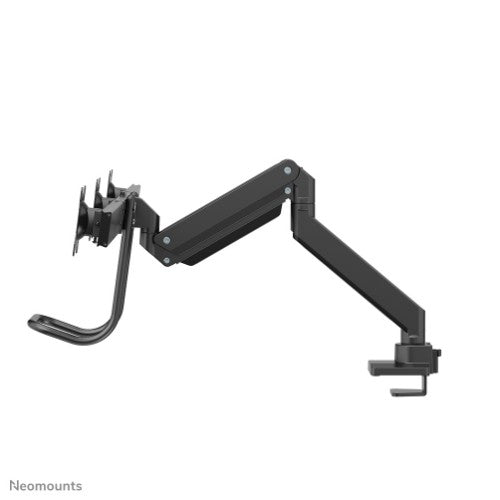

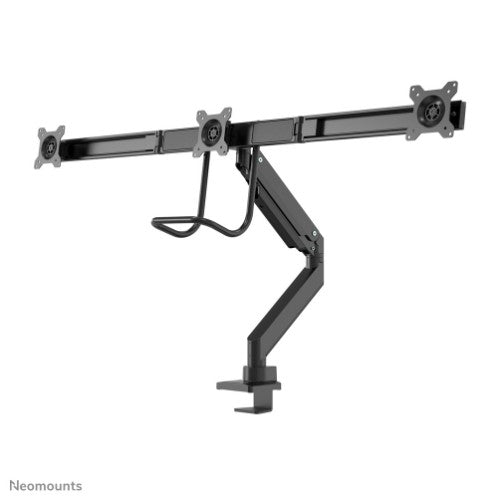

Neomounts NM-D775DX3BLACK Triple crossbar monitor arm - 17-27" - 1-6 kg/screen - gas spring - 180°-stop - Topfix - black

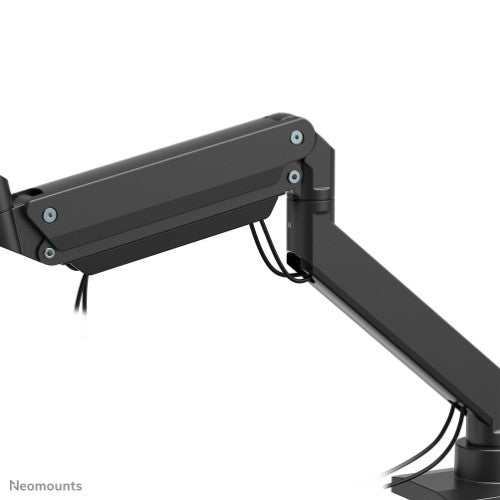

Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description

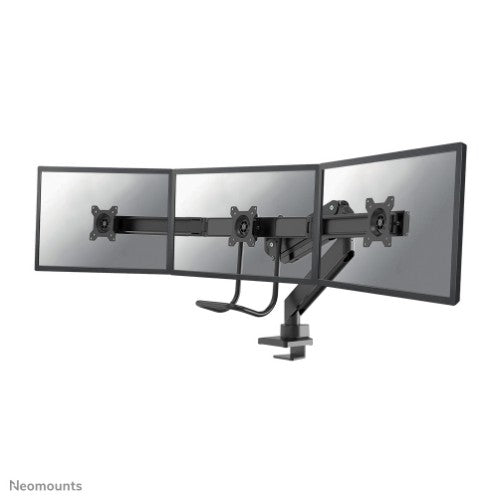

The Neomounts NM-D775DX3BLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 6 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 3 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |

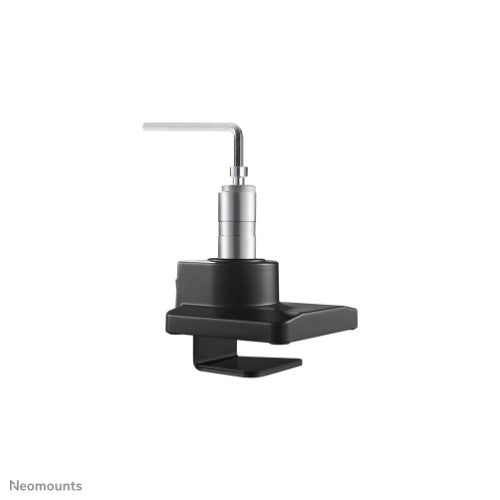

| Mounting | Clamp/Grommet |
| Maximum screen size | 68.6 cm (27") |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 630 mm |
| Height adjustment | Yes |
| Height adjustment range | 270 - 600 mm |
| Swivel angle | 360° |
| Tilt angle range | 0 - 20° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Aluminium |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Height | 600 mm |
| Weight | 8.58 kg |
| Package width | 320 mm |
| Package depth | 145 mm |
| Package height | 623 mm |
| Package weight | 10.2 kg |
| Package net weight | 10.2 kg |
| Packaging data | |
| Package width | 320 mm |
| Package depth | 145 mm |
| Package height | 623 mm |
| Package weight | 10.2 kg |
| Package net weight | 10.2 kg |
| Other features | |
| Minimum weight | 1 kg |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 640 mm |
| Master (outer) case gross weight | 10.2 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 30 pc(s) |
| Master (outer) case net weight | 10.2 kg |
| Harmonized System (HS) code | 7326909890 |
