Description
Neomounts NEXT Core DS75-450WH2 Dual crossbar monitor arm - 17-32" - 1-8 kg/screen - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - white
The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Description
The Neomounts DS75-450WH2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (27,7-56 cm) and depth adjustment (0-50,5 cm), to create the perfect working position.The DS75-450WH2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS75-450WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450WH wall adapter is optionally available.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |

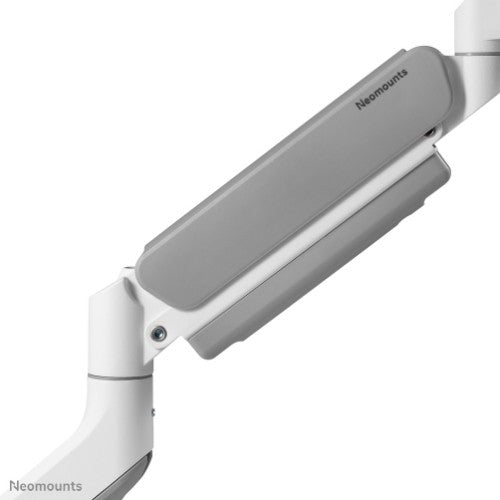

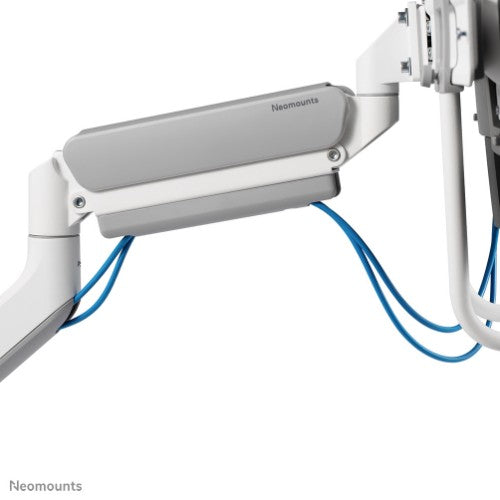

| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 680 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 280 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 20° |
| Tilt angle range | -10 - 10° |
| Angle of rotation | 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | White |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Product colour | White |
| Width adjustment range | 0 - 540 mm |
| Cable management | Yes |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 853 mm |
| Depth | 115 mm |
| Height | 646 mm |
| Weight | 6.4 kg |
| Package width | 320 mm |
| Package depth | 152 mm |
| Package height | 445 mm |
| Package weight | 7.9 kg |
| Package net weight | 7.9 kg |
| Packaging data | |
| Package width | 320 mm |
| Package depth | 152 mm |
| Package height | 445 mm |
| Package weight | 7.9 kg |
| Package net weight | 7.9 kg |
| Packaging content | |
| Mounting kit | Yes |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 540 mm |
| Warranty period | 5 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 460 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 40 pc(s) |
| Master (outer) case net weight | 14.3 kg |
| Harmonized System (HS) code | 7326909890 |
