Description

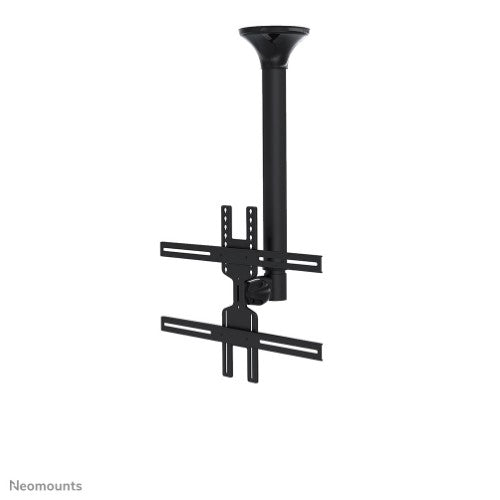

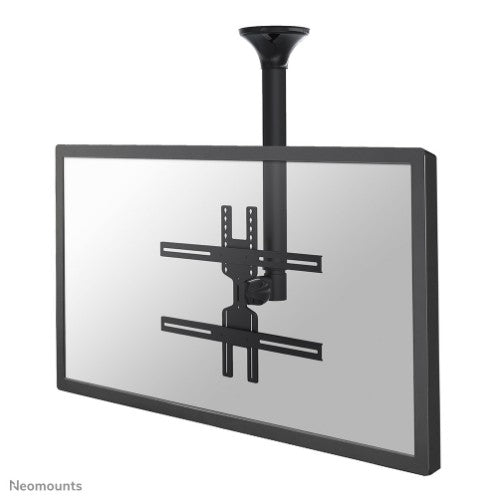

Neomounts FPMA-C400BLACK Monitor/TV mount ceiling 1 screen - 32-60" - max 35 kg - VESA 200x200-600x400 - h 64-104 cm - black

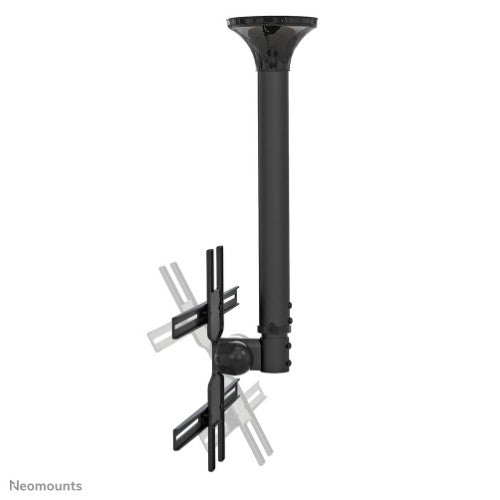

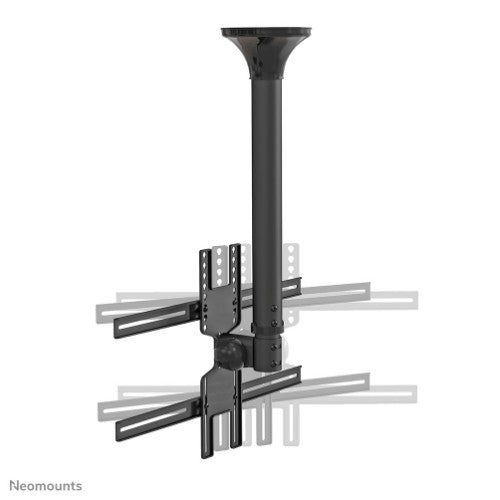

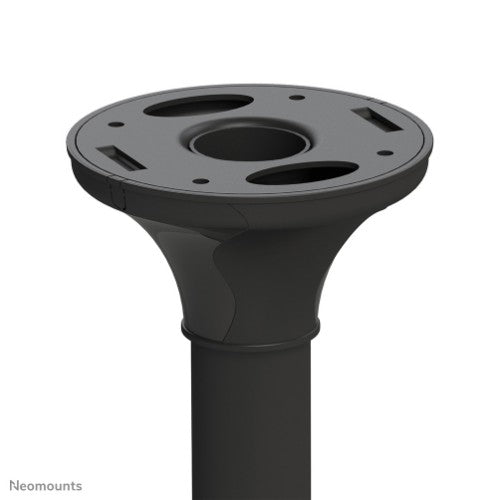

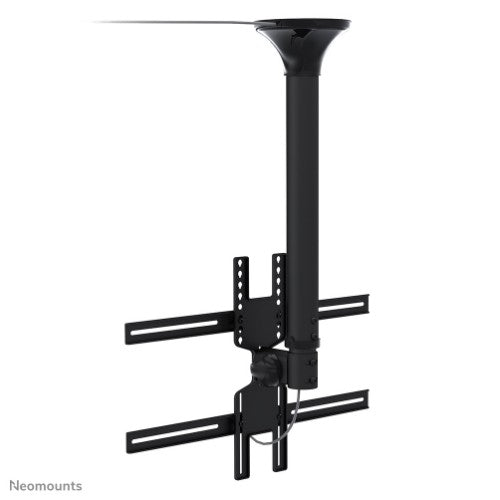

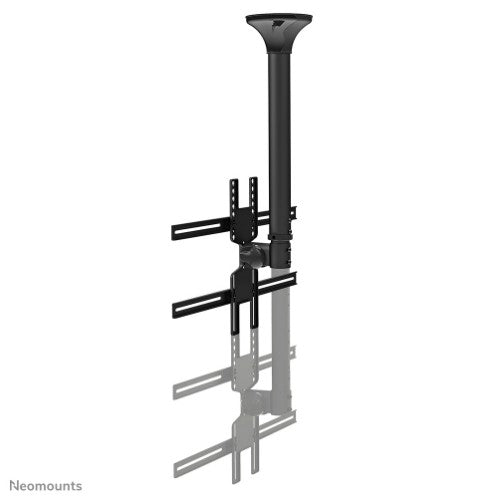

Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

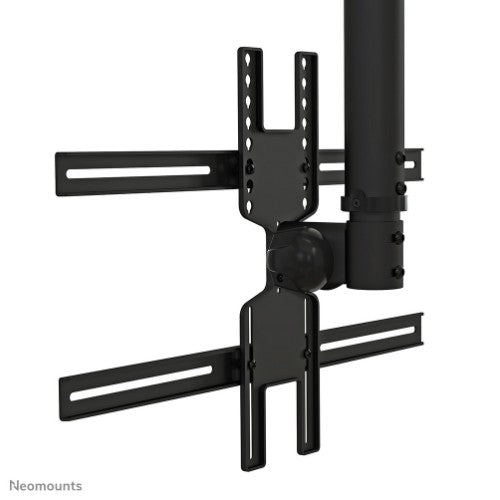

Neomounts FPMA-C400BLACK has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 35 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
All installation material is included with the product.
Description
The Neomounts ceiling mount, model FPMA-C400BLACK is a tilt- and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C400BLACK has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 35 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 35 kg |
| Mounting type | Ceiling |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 152.4 cm (60") |
| Maximum weight capacity | 35 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 640 - 1040 mm |
| Tilt angle range | 0 - 25° |
| Swivel angle range | 0 - 60° |
| Swivel angle | 60° |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Tilt angle | 25° |
| Technical details | |
| Number of displays supported | 1 |
| Product colour | Black |
| Mounting type | Ceiling |
| Adjustable | Yes |
| Country of origin | Taiwan |
| Package net weight | 4.82 kg |
| Master (outer) case net weight | 8.1 kg |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Depth | 80 mm |
| Height | 1040 mm |
| Weight | 7.7 kg |
| Packaging data | |
| Package width | 725 mm |
| Package depth | 200 mm |
| Package height | 220 mm |
| Package weight | 4.8 kg |
| Logistics data | |
| Master (outer) case width | 725 mm |
| Master (outer) case length | 200 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 8.7 kg |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 8.1 kg |
| Products per pallet (EU) | 48 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Ceiling |
| Adjustable | Yes |
| Country of origin | Taiwan |
| Depth adjustment range | 0 - 80 mm |
