Description
Neomounts FPMA-W815 Full motion Monitor/TV mount wall - 10-40" - max 20 kg - VESA 75x75-200x200 - d 9 cm - black

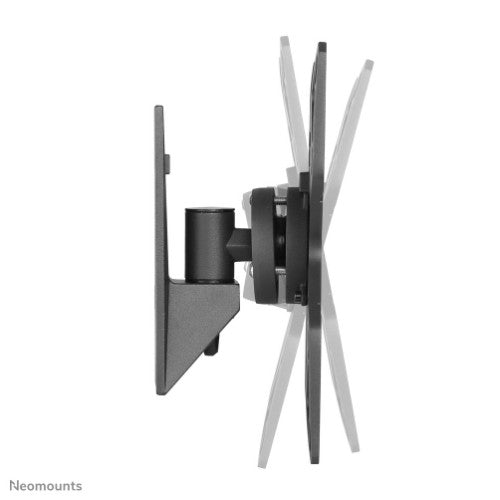

Neomounts' tilt (30°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is 9 centimetres deep.
Neomounts FPMA-W815 has one pivot point and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

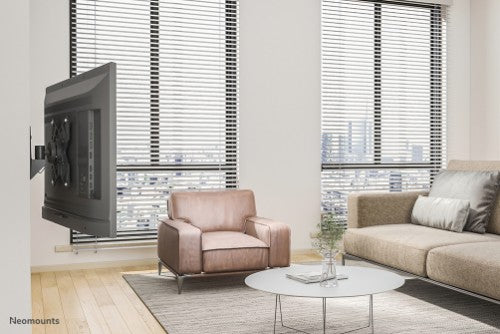

Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

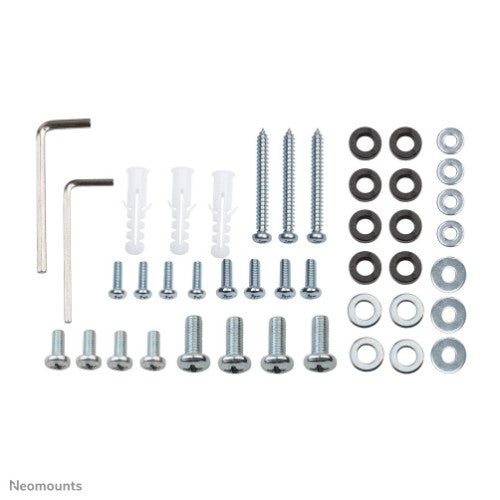

All installation material is included with the product.
Description
The Neomounts wall mount, model FPMA-W815 is a tilt-, swivel and rotatable wall mount for flat screens up to 40". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.Neomounts' tilt (30°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is 9 centimetres deep.
Neomounts FPMA-W815 has one pivot point and is suitable for screens up to 40" (102 cm). The weight capacity of this product is 20 kg. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
Specifications

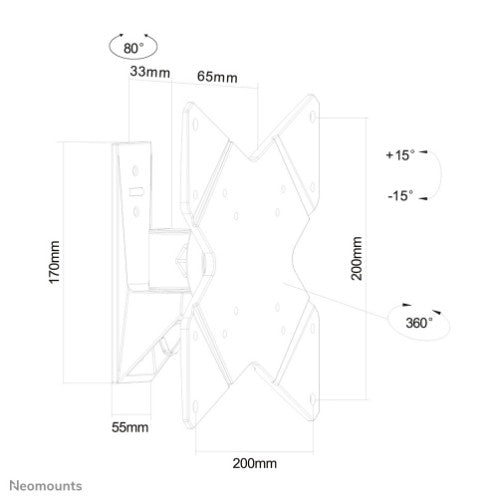

| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 20 kg |
| Mounting type | Wall |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Maximum screen size | 101.6 cm (40") |
| Maximum weight capacity | 20 kg |
| Ergonomics | |
| Tilt angle range | 0 - 30° |
| Swivel angle range | 0 - 80° |
| Swivel angle | 80° |
| Angle of rotation | 360° |
| Distance to the wall (min) | 0 mm |
| Distance to the wall (max) | 9 cm |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Type | Full motion |
| Technical details | |
| Angle of rotation | 360° |
| Number of displays supported | 1 |
| Distance to the wall (min) | 0 mm |
| Distance to the wall (max) | 9 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Package net weight | 1.16 kg |
| Master (outer) case net weight | 9.3 kg |
| Design | |
| Product colour | Black |
| Housing material | Aluminium |
| Weight & dimensions | |
| Weight | 1.16 kg |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 100 mm |
| Package height | 245 mm |
| Package weight | 1.2 kg |
| Logistics data | |
| Master (outer) case width | 830 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 12 kg |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case net weight | 9.3 kg |
| Products per pallet (EU) | 120 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
