Description

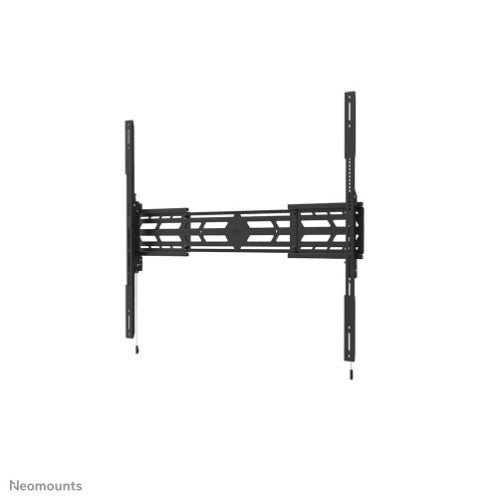

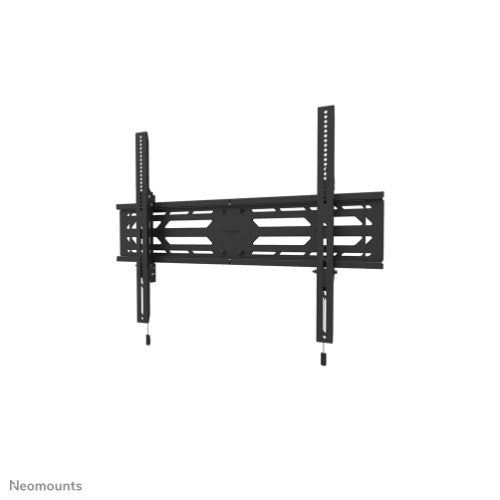

Neomounts WL30S-950BL19 Fixed heavy duty wall mount - 55-110" screen - max 160 kg - VESA 100x100-1500x900 - d 6,7 cm - level adjustment - lockable (incl. security screw, excl. lock) - landscape and portrait - black

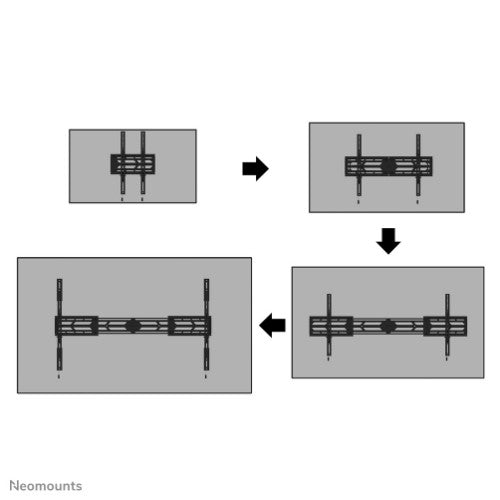

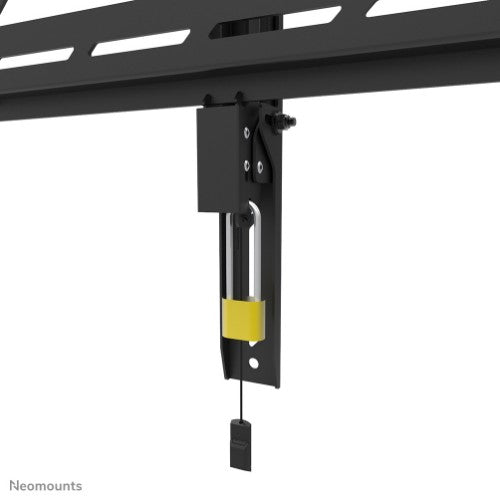

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

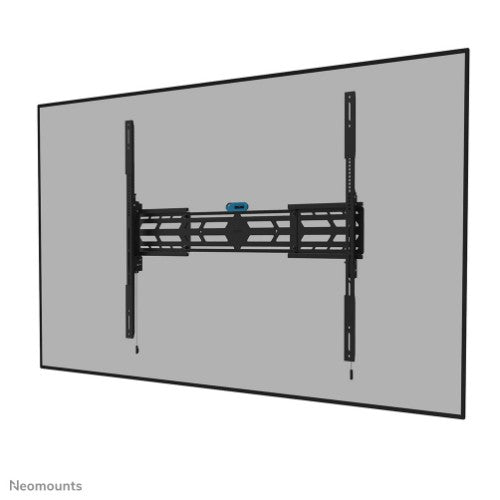

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Description

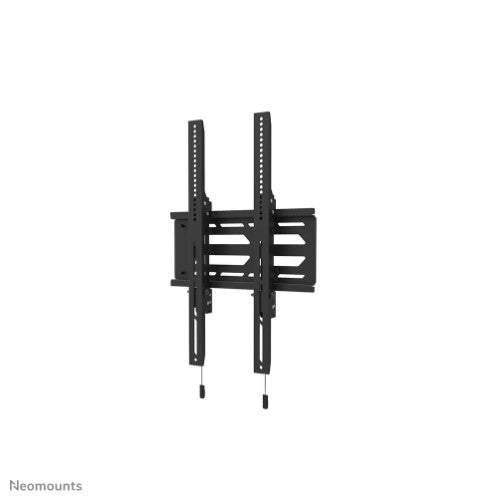

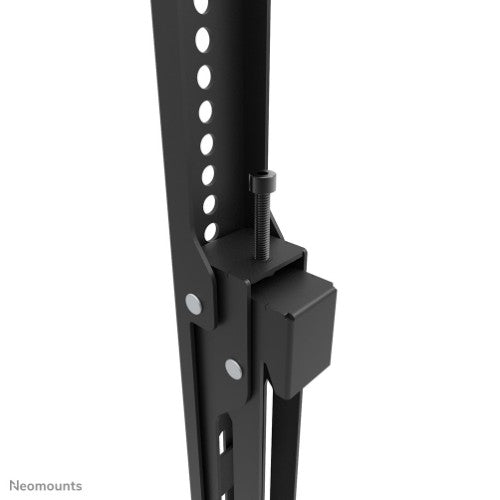

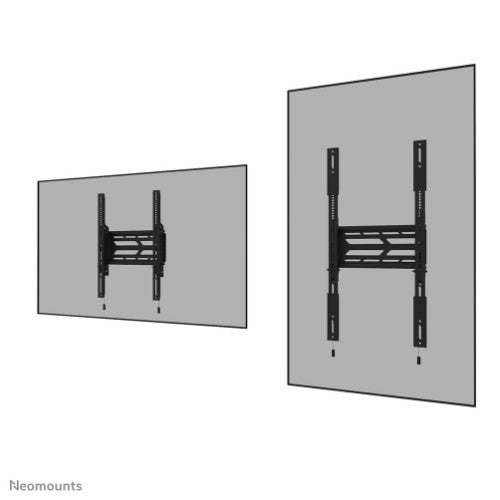

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).
The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 160 kg |
| Minimum screen size | 139.7 cm (55") |
| Panel mounting interface | 900 x 600 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 1500 x 900 mm |
| Distance to the wall (max) | 6.7 cm |
| Maximum weight capacity | 160 kg |
| Maximum screen size | 2.79 m (110") |
| Suitable for TV | Yes |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |
| Pivot angle | -3 - 3° |
| Angle of rotation | 6° |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Orientation | Landscape/Portrait |
| Accepts padlock | Yes |
| Technical details | |
| Mounting type | Wall |
| Distance to the wall (max) | 6.7 cm |
| Product colour | Black |
| Width adjustment range | 893 - 1600 mm |
| Warranty period | 5 year(s) |
| Weight & dimensions | |
| Width | 1600 mm |
| Depth | 67 mm |
| Height | 936 mm |
| Weight | 10.2 kg |
| Package width | 222 mm |
| Package depth | 98 mm |
| Package height | 918 mm |
| Package weight | 11.7 kg |
| Package net weight | 11.7 kg |
| Packaging data | |
| Package width | 222 mm |
| Package depth | 98 mm |
| Package height | 918 mm |
| Package weight | 11.7 kg |
| Package net weight | 11.7 kg |
| Other features | |
| Width adjustment range | 893 - 1600 mm |
| Warranty period | 5 year(s) |
| Mounting type | Wall |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 211 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case height | 938 mm |
| Master (outer) case gross weight | 23.9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 30 pc(s) |
| Master (outer) case net weight | 20.3 kg |
| Harmonized System (HS) code | 7326909890 |
