Description
Neomounts LEVEL-850 WL35S-850BL18 Tiltable TV mount wall - 43-86" - max 60 kg - VESA 100x100-800x400 - d 3,5 cm - level adjustment - lockable (incl. security screw, excl. lock) - Rapid Install-model incl. fixing template - black

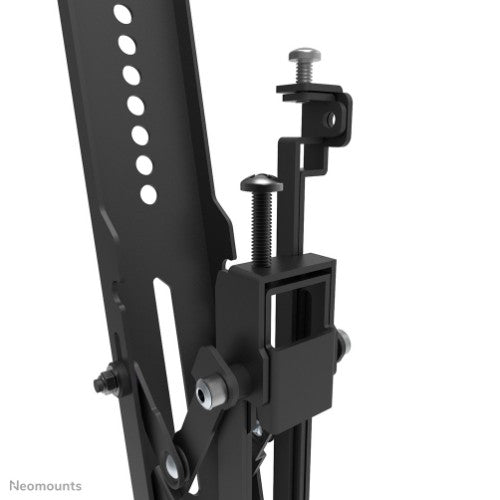

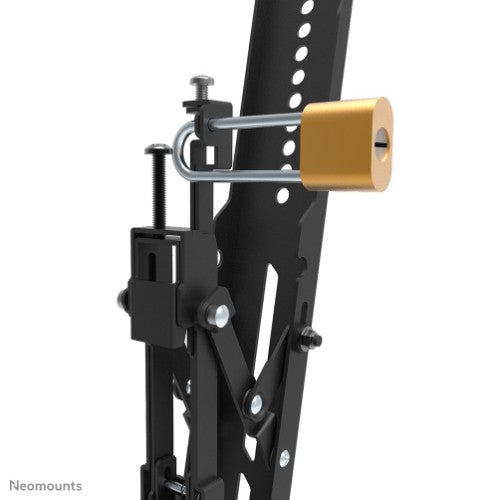

The LEVEL-850 wall mount has a depth of 3,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).

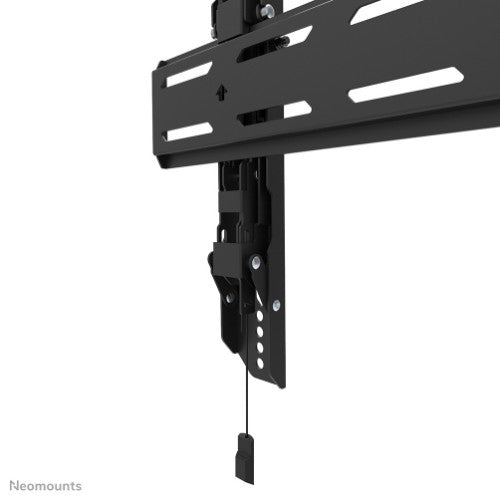

The WL35S-850BL18 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
Description
The Neomounts WL35S-850BL18 LEVEL is a tiltable wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. Height and level adjustment is available for the perfect installation.The LEVEL-850 wall mount has a depth of 3,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm. It is possible to lock the wall mount using the included anti-theft screw or a padlock (not included).
The WL35S-850BL18 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 60 kg |
| Mounting type | Wall |
| Minimum screen size | 109.2 cm (43") |
| Panel mounting interface | 800 x 400 mm |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Maximum screen size | 2.18 m (86") |
| Maximum weight capacity | 60 kg |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 0 - 20 mm |

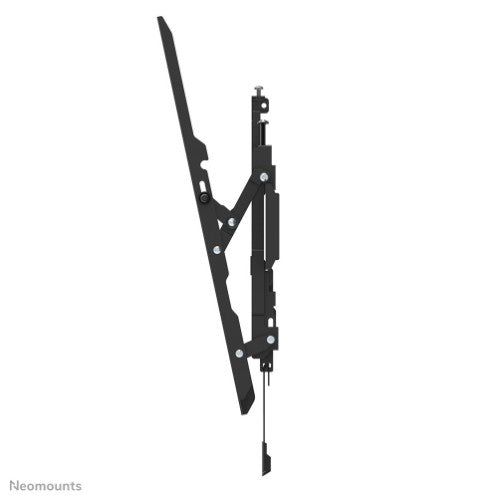

| Tilt angle range | 0 - 12° |
| Distance to the wall (max) | 3.5 cm |
| Tilt adjustment | Yes |
| Technical details | |
| Number of displays supported | 1 |
| Distance to the wall (max) | 3.5 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Package net weight | 4.5 kg |
| Master (outer) case net weight | 14.8 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Security screw included |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 884 mm |
| Depth | 35 mm |
| Height | 425 mm |
| Weight | 3.15 kg |
| Packaging data | |
| Package width | 904 mm |
| Package depth | 158 mm |
| Package height | 74 mm |
| Package weight | 4.5 kg |
| Logistics data | |
| Master (outer) case width | 924 mm |
| Master (outer) case length | 315 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 18.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case net weight | 14.8 kg |
| Products per pallet (EU) | 60 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
