Description

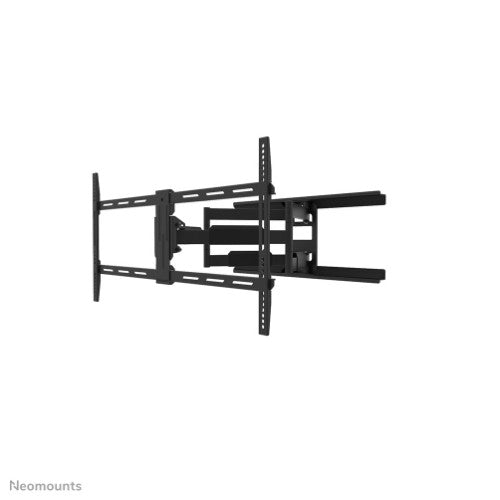

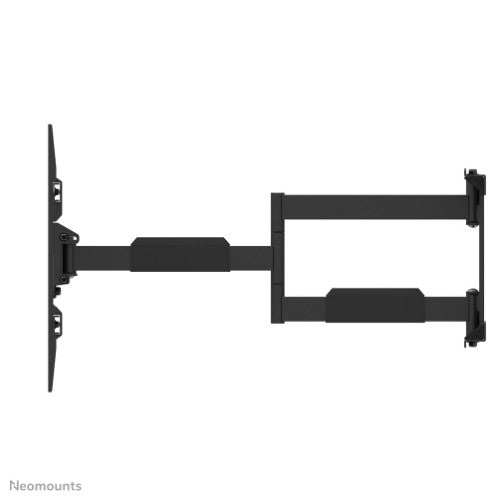

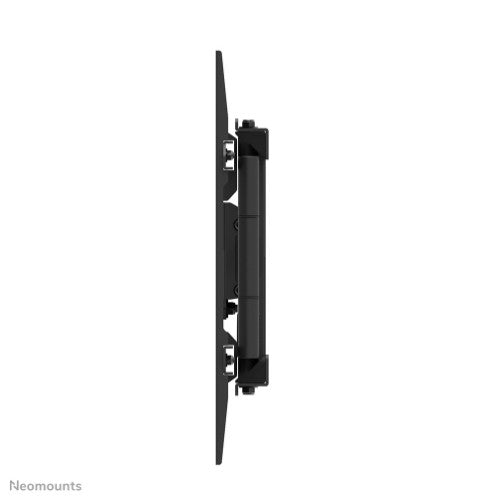

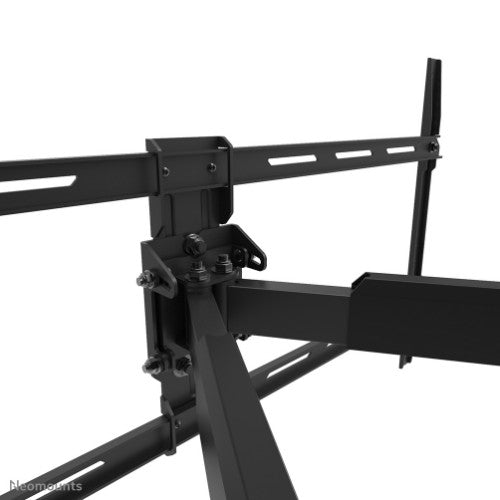

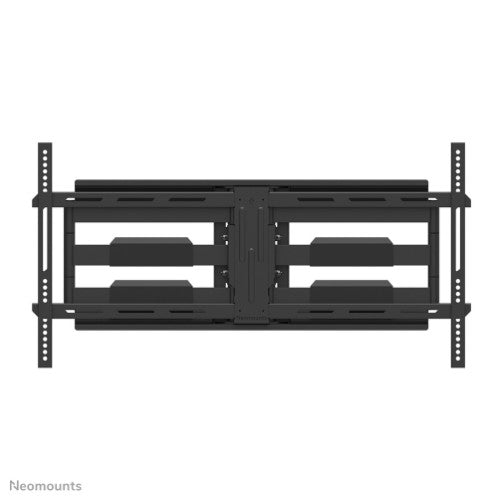

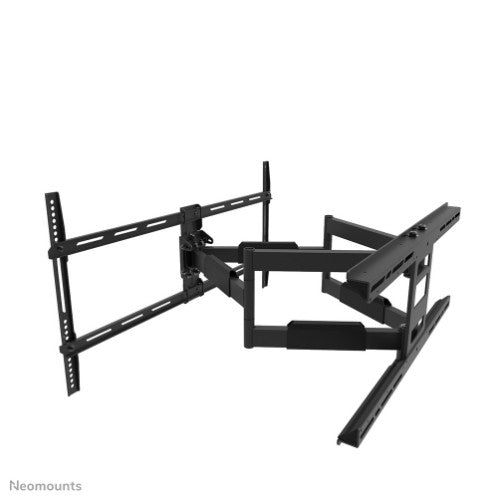

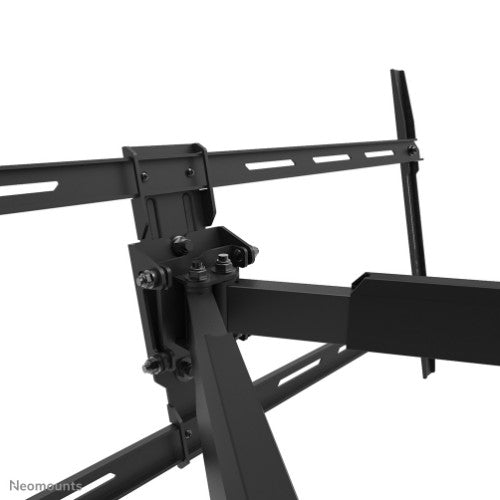

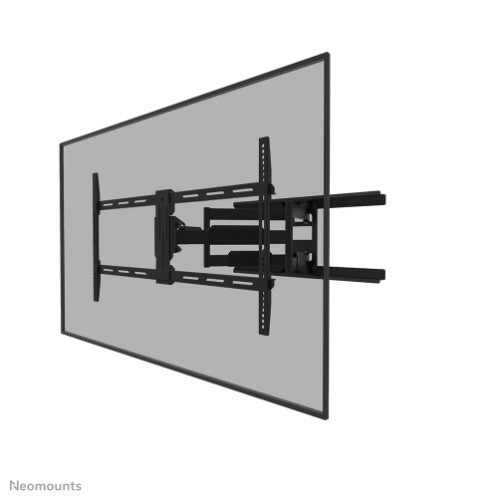

Neomounts LEVEL-550 WL40-550BL18 Full motion TV mount wall - 43-75" - max 45 kg - VESA 200x100-800x400 - d 5,5-71 cm - Easy Install-model - black
The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Description
The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm.
The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 45 kg |
| Mounting type | Wall |
| Minimum screen size | 109.2 cm (43") |
| Panel mounting interface | 800 x 400 mm |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 800 x 400 mm |
| Maximum screen size | 190.5 cm (75") |
| Maximum weight capacity | 45 kg |
| Ergonomics | |
| Height adjustment | No |
| Cable management | Yes |
| Tilt angle range | -3 - 15° |
| Swivel angle range | 0 - 54° |
| Swivel angle | 54° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (min) | 5.5 cm |
| Distance to the wall (max) | 71 cm |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Type | Full motion |
| Technical details | |
| Cable management | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Number of displays supported | 1 |
| Distance to the wall (min) | 5.5 cm |
| Distance to the wall (max) | 71 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Package net weight | 11.7 kg |
| Master (outer) case net weight | 22.1 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Design | |
| Cable management | Yes |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 850 mm |
| Depth | 55 mm |
| Height | 436 mm |
| Weight | 9.9 kg |
| Packaging data | |
| Package width | 882 mm |
| Package depth | 340 mm |
| Package height | 65 mm |
| Package weight | 11.7 kg |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 902 mm |
| Master (outer) case length | 145 mm |
| Master (outer) case height | 360 mm |
| Master (outer) case gross weight | 24 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 22.1 kg |
| Products per pallet (EU) | 40 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
