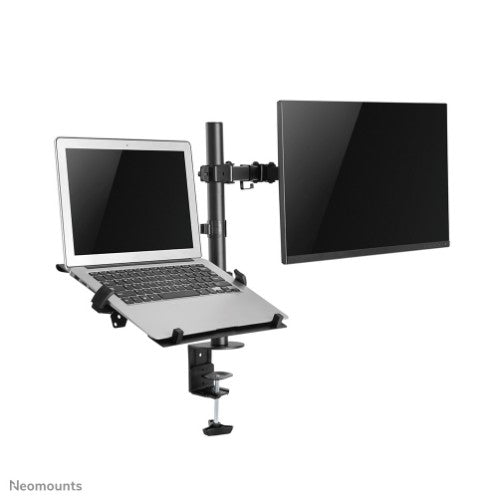

Neomounts FPMA-D550NOTEBOOK Single monitor arm with laptop holder - 10-32" - 0-8 kg - black

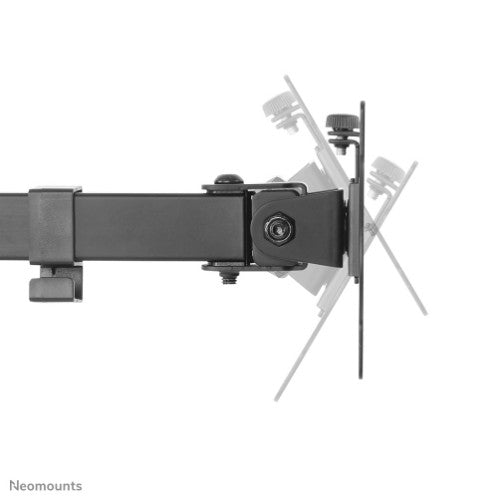

Neomounts' unique tilt (+45°/-45°), swivel (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 52 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

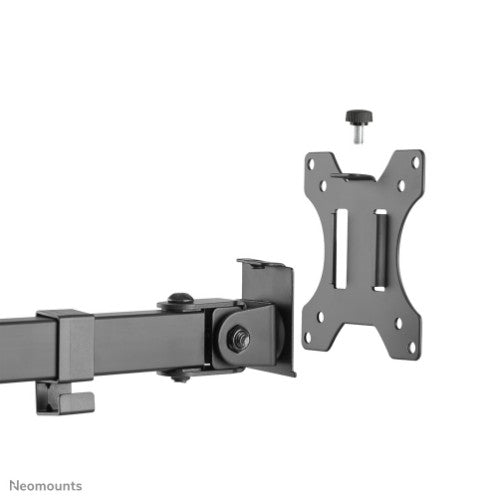

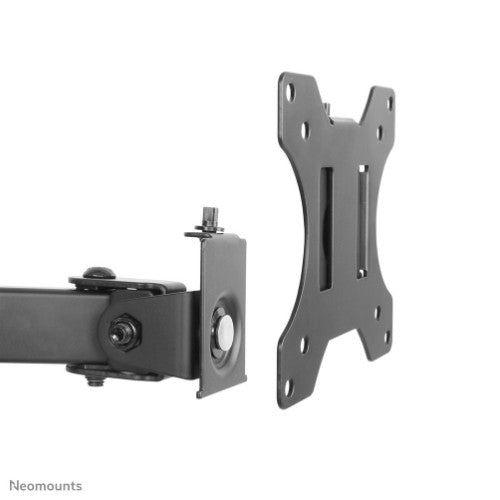

Neomounts FPMA-D550NOTEBOOK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg for the screen and 4,5 kg for the notebook. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description

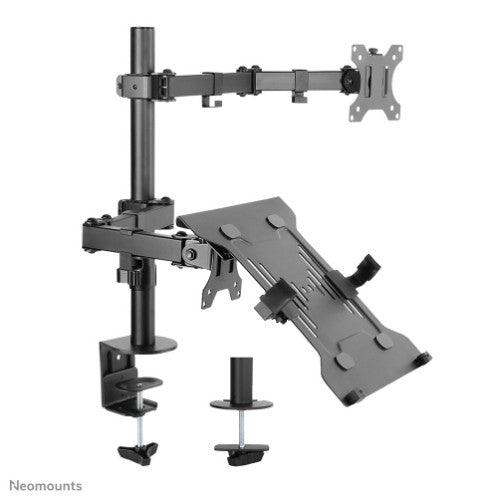

The Neomounts desk mount, model FPMA-D550NOTEBOOK is a tilt-, swivel and rotatable desk mount for flat screens up to 32" notebooks up to 15,6". This mount is a great choice for space saving placement on desks using a desk clamp or grommet.Neomounts' unique tilt (+45°/-45°), swivel (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 52 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D550NOTEBOOK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg for the screen and 4,5 kg for the notebook. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 8 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.8 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity | 8 kg |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |
| Cable management | Yes |
| Depth adjustment range | 40 - 520 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 440 mm |
| Swivel angle | 180° |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Number of pivot points | 3 |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Number of pivot points | 3 |
| Mounting type | Desk |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Depth | 520 mm |
| Height | 548 mm |
| Weight | 5.67 kg |
| Package width | 295 mm |
| Package depth | 116 mm |
| Package height | 465 mm |
| Package weight | 6.3 kg |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 116 mm |
| Package height | 465 mm |
| Package weight | 6.3 kg |
| Logistics data | |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 480 mm |
| Master (outer) case gross weight | 6.3 kg |
| Products per master (outer) case | 3 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 55 pc(s) |
| Master (outer) case net weight | 5.2 kg |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
