Description

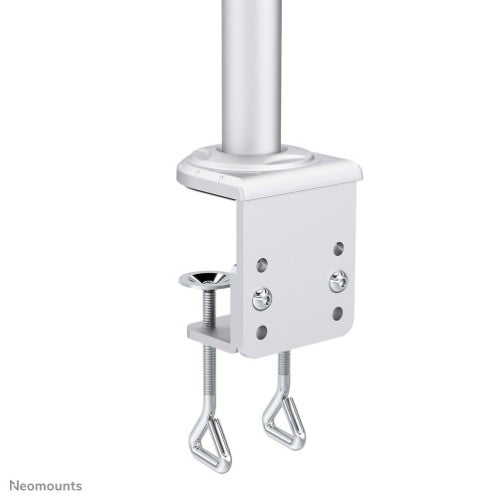

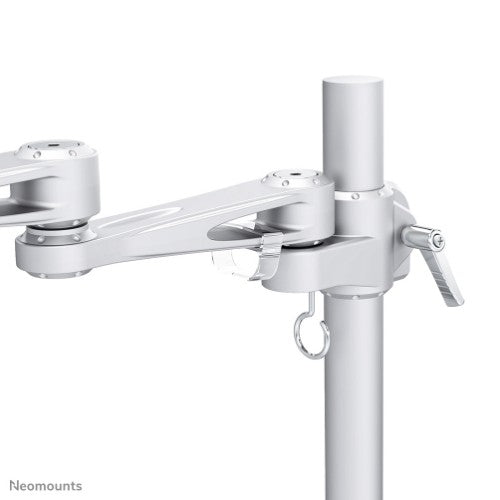

Neomounts FPMA-D935 Single monitor arm - 10-30" - 0-10 kg - silver

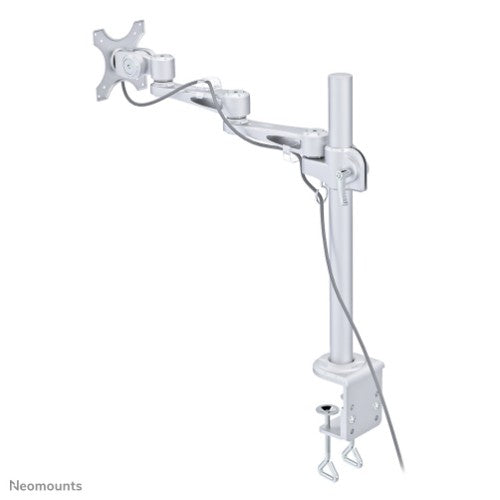

Neomounts versatile tilt (180°), rotate (360°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 14,5 to 51,9 centimetres. Depth adjustable from 12 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D935 has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Description
The Neomounts desk mount, model FPMA-D935 is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.Neomounts versatile tilt (180°), rotate (360°) and swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 14,5 to 51,9 centimetres. Depth adjustable from 12 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D935 has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 10 kg |
| Desk thickness (max) | 10.5 cm |
| Minimum screen size | 25.4 cm (10") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp |
| Maximum weight capacity | 10 kg |
| Maximum screen size | 76.2 cm (30") |
| Ergonomics | |
| Depth adjustment range | 120 - 500 mm |
| Height adjustment | Yes |
| Height adjustment range | 145 - 519 mm |
| Swivel angle | 360° |
| Tilt angle range | 0 - 180° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Silver |
| Housing material | Aluminium |
| Technical details | |
| Mounting type | Desk |
| Product colour | Silver |
| Weight & dimensions | |
| Height | 500 mm |
| Weight | 3.34 kg |
| Package width | 570 mm |
| Package depth | 158 mm |
| Package height | 103 mm |
| Package weight | 3.5 kg |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 158 mm |
| Package height | 103 mm |
| Package weight | 3.5 kg |
| Logistics data | |
| Master (outer) case width | 600 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 260 mm |
| Master (outer) case gross weight | 16.7 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | Taiwan |
| Products per pallet (EU) | 112 pc(s) |
| Master (outer) case net weight | 15.7 kg |
| Harmonized System (HS) code | 83025000 |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp |
| Country of origin | Taiwan |
