Description

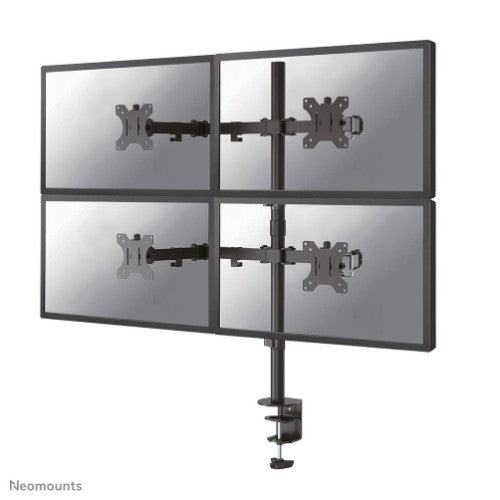

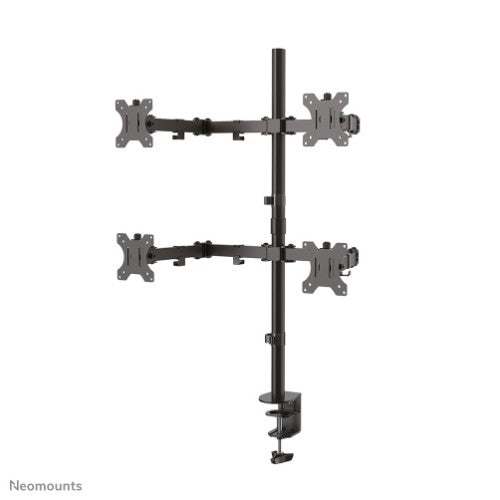

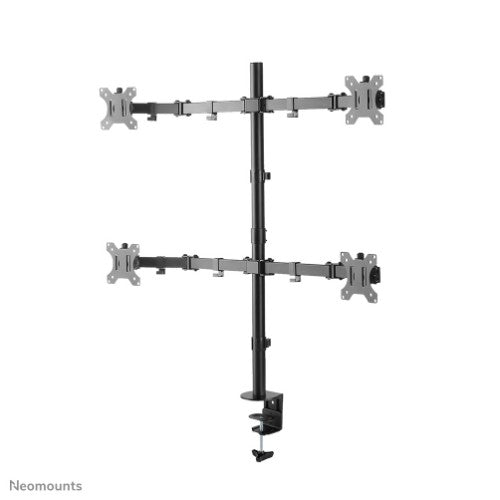

Neomounts FPMA-D550D4BLACK Monitor arm for 4 screens - 13-32" - 0-6 kg/screen - black

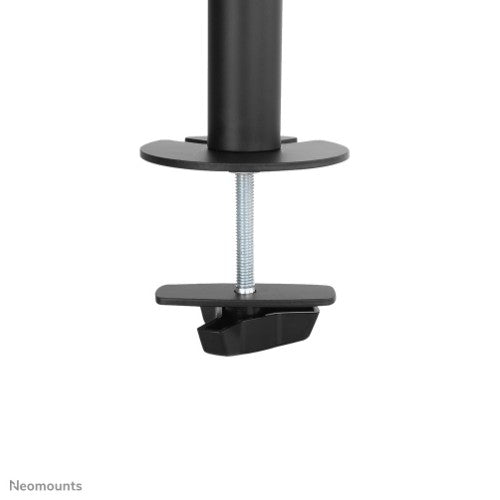

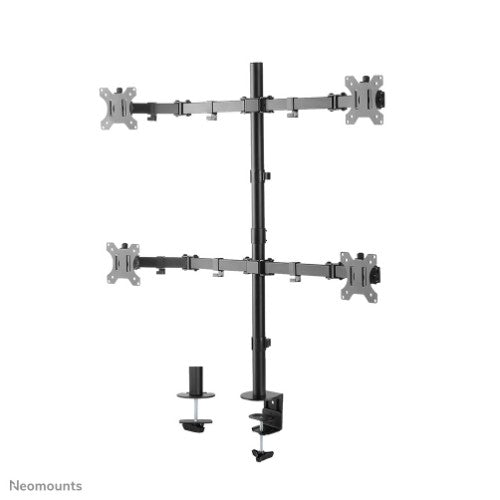

The FPMA-D550D4BLACK is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D550D4BLACK comes with both desk clamp and grommet.
Description

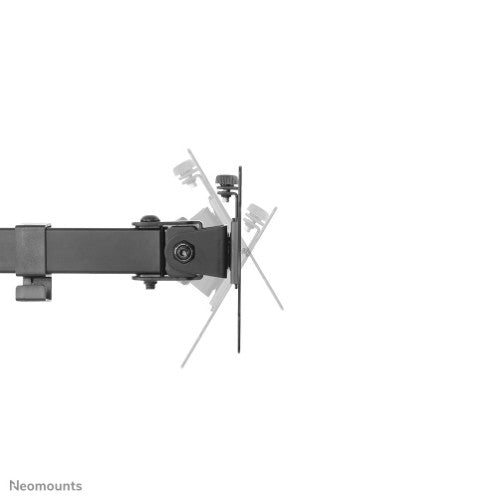

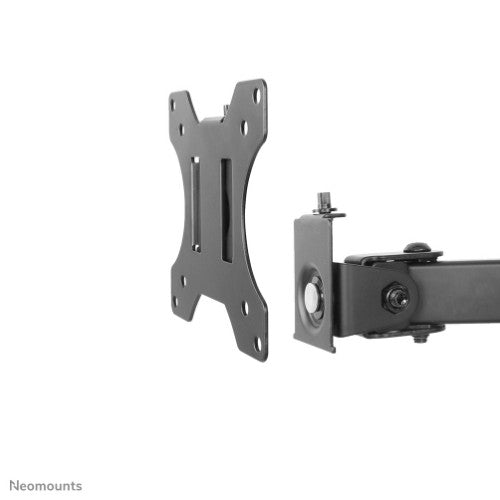

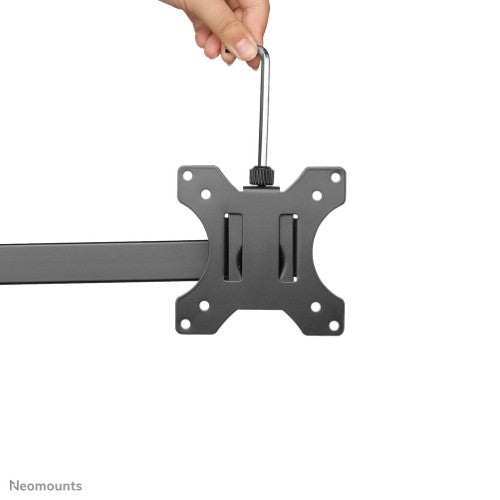

The Neomounts FPMA-D550D4BLACK is a full motion desk mount for four flat screens up to 32" with a maximum weight capacity of 6 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Additionally, the mount features height adjustment (0-85,7 cm) and depth adjustment (0-38,2 cm), to create the perfect work situation. The smart cable management clips ensure orderly routing of the cables. Additionally, the mount features an Easy-release VESA, that allows you to (de)attach the monitors in a wink of an eye.The FPMA-D550D4BLACK is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Deviant hole patterns can be covered using one of Neomounts VESA adapter plates. The Neomounts FPMA-D550D4BLACK comes with both desk clamp and grommet.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 6 kg |
| Minimum screen size | 33 cm (13") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 4 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 1 cm |
| Distance to the wall (max) | 8.8 cm |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 382 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 - 857 mm |
| Swivel angle | 180° |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Height adjustment type | Manual |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Distance to the wall (min) | 1 cm |
| Distance to the wall (max) | 8.8 cm |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 913 mm |
| Depth | 148 mm |
| Height | 988 mm |
| Weight | 7.37 kg |
| Package width | 185 mm |
| Package depth | 592 mm |
| Package height | 123 mm |
| Package weight | 7.3 kg |
| Package net weight | 7.3 kg |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 592 mm |
| Package height | 123 mm |
| Package weight | 7.3 kg |
| Package net weight | 7.3 kg |
| Logistics data | |
| Master (outer) case width | 200 mm |
| Master (outer) case length | 610 mm |
| Master (outer) case height | 265 mm |
| Master (outer) case gross weight | 15.9 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 70 pc(s) |
| Master (outer) case net weight | 15 kg |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
