Description

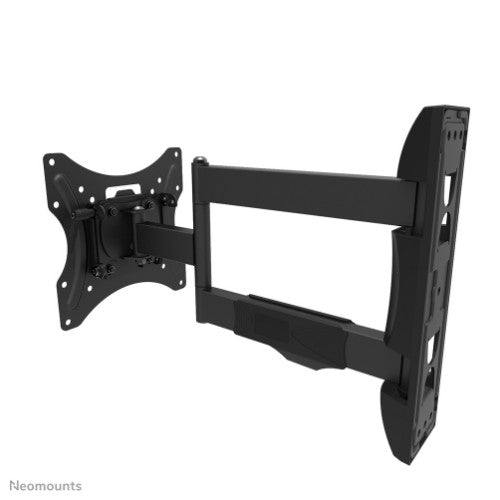

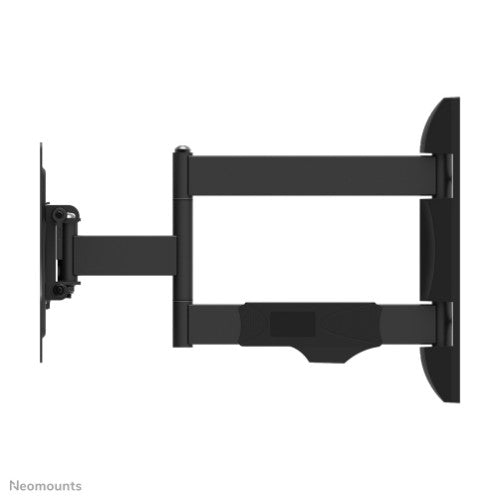

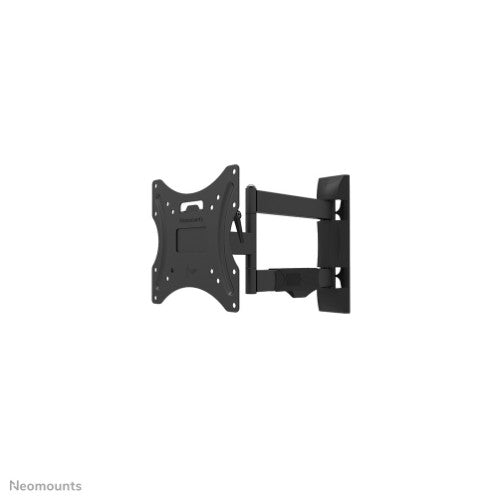

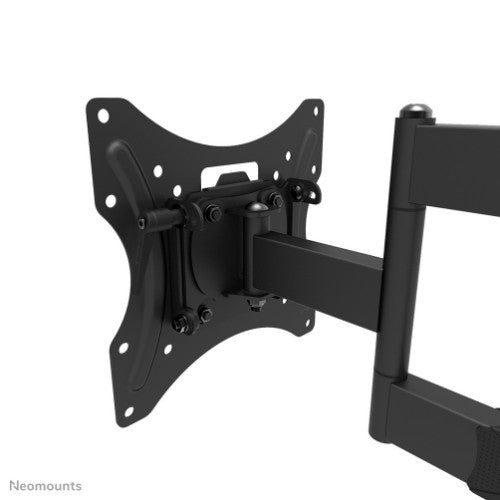

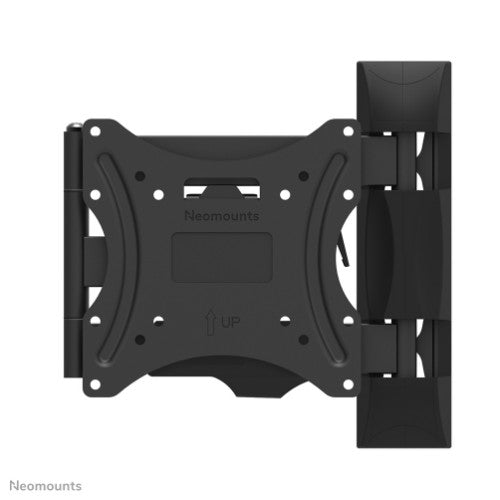

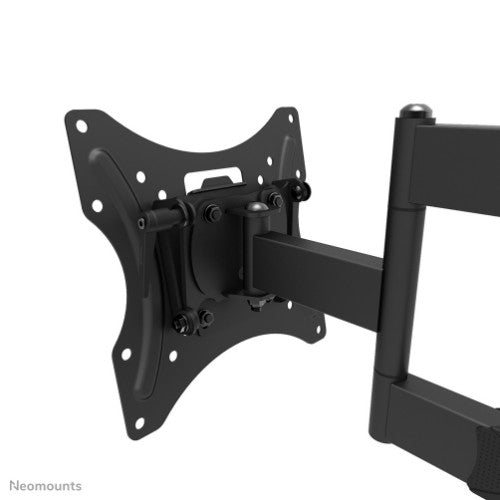

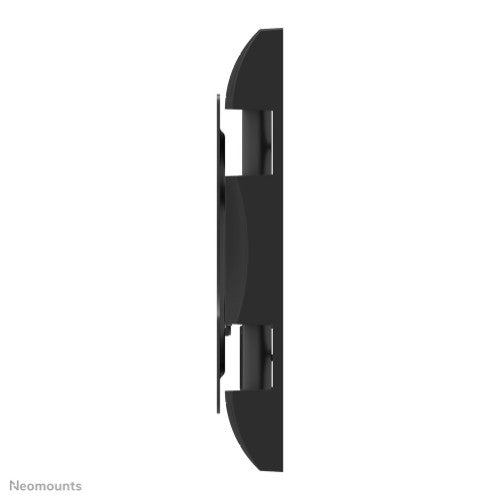

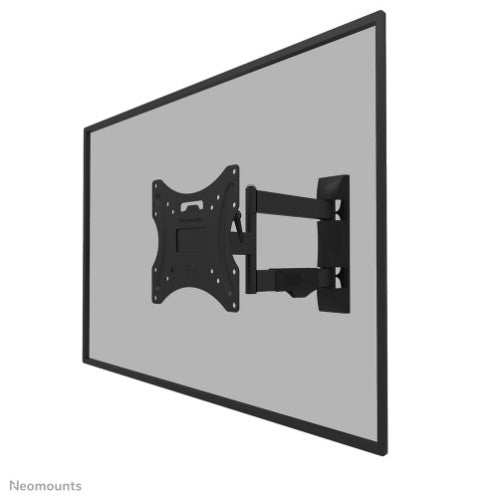

Neomounts LEVEL-550 WL40-550BL12 Full motion TV mount wall - 32-55" - max 35 kg - VESA 100x100-200x200 - d 4,5-42 cm - Easy Install-model - black
The LEVEL 850 wall mount has a depth of 4,5-42 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm.
The WL40-550BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Description
The Neomounts WL40-550BL12 LEVEL is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 35 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The LEVEL 850 wall mount has a depth of 4,5-42 cm and is suitable for screens that meet VESA hole pattern 100x100 to 200x200 mm.
The WL40-550BL12 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 35 kg |
| Mounting type | Wall |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 200 x 200 mm |
| Number of displays supported | 1 |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 200 x 200 mm |
| Maximum screen size | 139.7 cm (55") |
| Maximum weight capacity | 35 kg |
| Ergonomics | |
| Height adjustment | No |
| Cable management | Yes |
| Tilt angle range | -2 - 12° |
| Swivel angle range | 0 - 40° |
| Swivel angle | 40° |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Distance to the wall (min) | 4.5 cm |
| Distance to the wall (max) | 42 cm |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Type | Full motion |
| Technical details | |
| Cable management | Yes |
| Angle of rotation | 6° |
| Pivot angle | -3 - 3° |
| Number of displays supported | 1 |
| Distance to the wall (min) | 4.5 cm |
| Distance to the wall (max) | 42 cm |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Package net weight | 3.9 kg |
| Master (outer) case net weight | 18.3 kg |
| Quantity per pack | 1 pc(s) |
| Lockable | Not lockable |
| Design | |
| Cable management | Yes |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 45 mm |
| Height | 306 mm |
| Weight | 3.25 kg |
| Packaging data | |
| Package width | 329 mm |
| Package depth | 310 mm |
| Package height | 55 mm |
| Package weight | 3.9 kg |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 349 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 19.9 kg |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case net weight | 18.3 kg |
| Products per pallet (EU) | 160 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
