Description
Neomounts NEXT Core DS70-450BL1 Single monitor arm - 17-42" - 1-15 kg (curved 11 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black

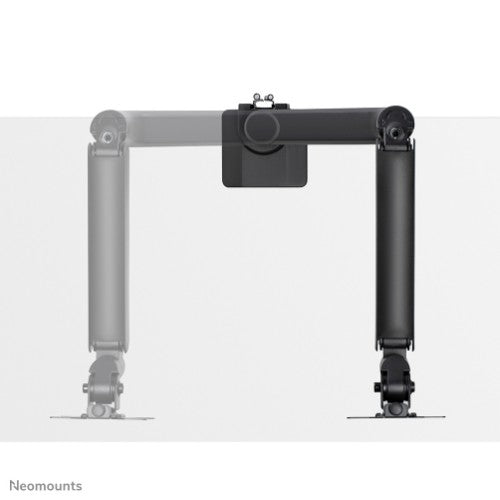

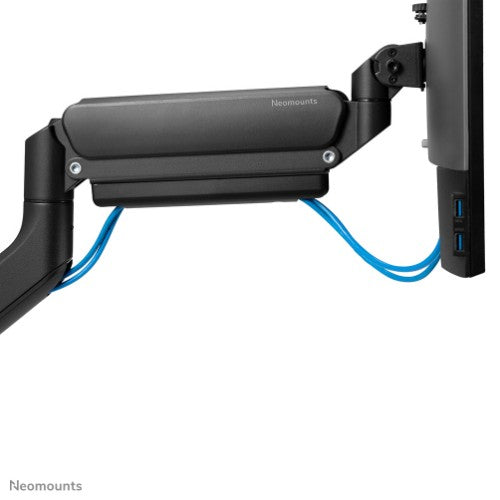

The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

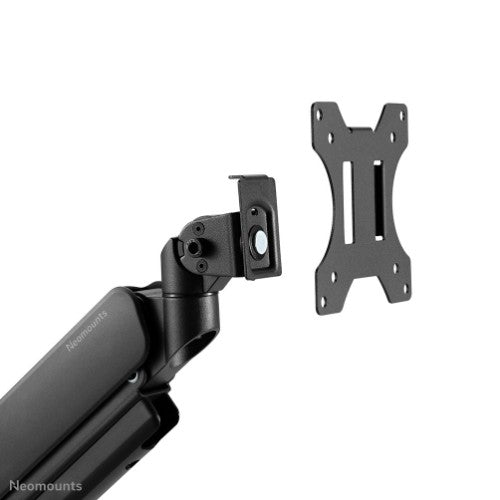

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
Description

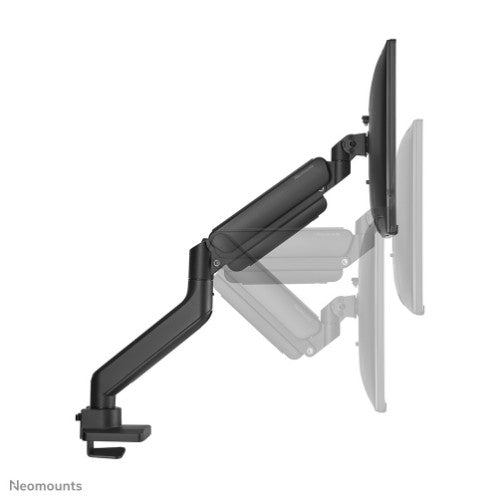

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.
The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 15 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 10.8 cm |
| Distance to the wall (max) | 56.8 cm |
| Maximum weight capacity | 15 kg |
| Maximum screen size | 106.7 cm (42") |
| Maximum weight capacity (per curved/ultra-wide display) | 11 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 54 - 511 mm |
| Height adjustment | Yes |
| Height adjustment range | 261 - 555 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 180° |
| Tilt angle range | -45 - 45° |
| Angle of rotation | 360° |

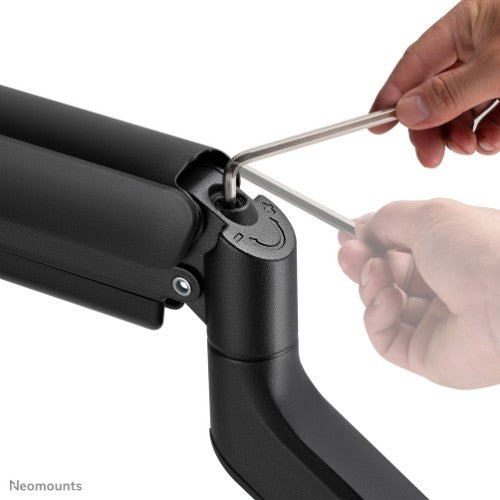

| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Distance to the wall (min) | 10.8 cm |
| Distance to the wall (max) | 56.8 cm |
| Product colour | Black |
| Width adjustment range | 0 - 920 mm |
| Cable management | Yes |
| Warranty period | 5 year(s) |
| Doesn't contain | Plastic |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 568 mm |
| Height | 653 mm |
| Weight | 3.98 kg |
| Package width | 280 mm |
| Package depth | 127 mm |
| Package height | 445 mm |
| Package weight | 5.1 kg |
| Package net weight | 5.4 kg |
| Packaging data | |
| Package width | 280 mm |
| Package depth | 127 mm |
| Package height | 445 mm |
| Package weight | 5.1 kg |
| Package net weight | 5.4 kg |
| Packaging content | |
| Mounting kit | Yes |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 920 mm |
| Warranty period | 5 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 580 mm |
| Master (outer) case gross weight | 20.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 64 pc(s) |
| Master (outer) case net weight | 18.4 kg |
| Harmonized System (HS) code | 7326909890 |
