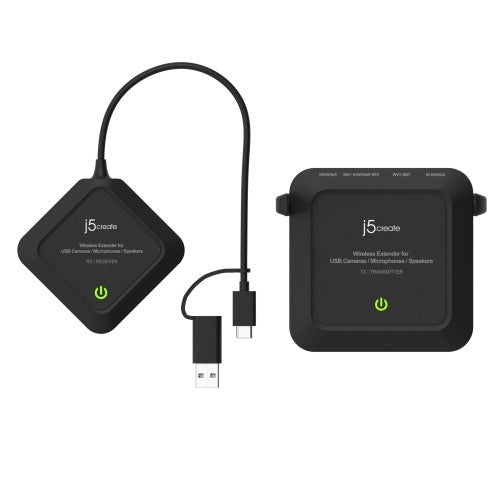

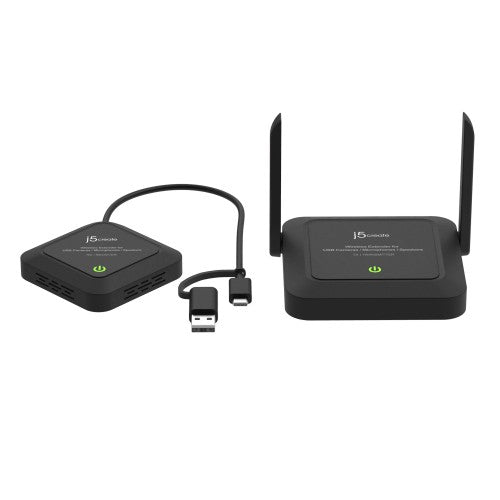

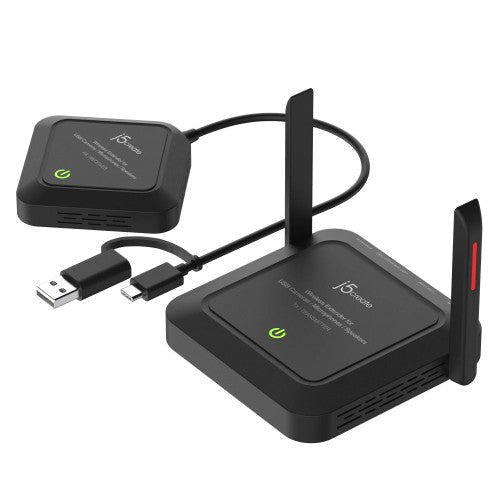

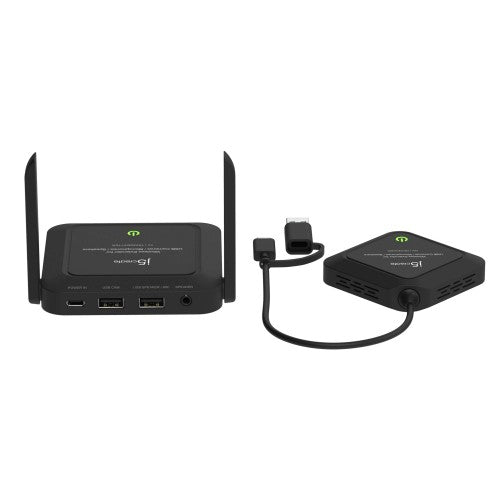

Wireless Extender for USB™ Cameras / Microphones / Speakers, Black
Key Features
- Low-latency audio and video transmission via USB™
- Converts a wired USB™ camera into a wireless one
- Provides support for USB™ camera with microphones/speaker
- Wireless transmission distance can reach up to 82 ft. (25 m)
- 5 GHz frequency ensures a stable connection
- Supports H.264 and MJPEG video formats
- Compatible with Windows®, macOS®, Chrome OS™
Description

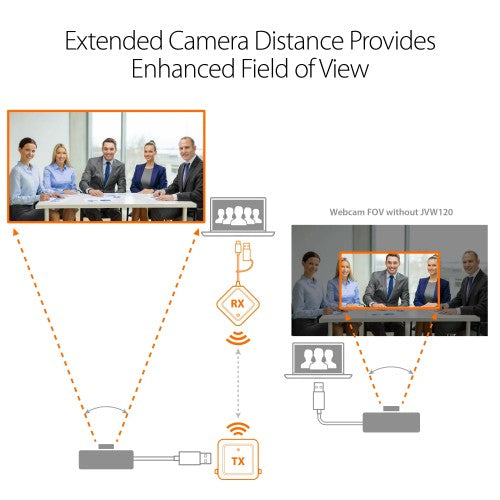

The j5create Wireless Extender for USB™ Cameras turns your wired USB™ camera into a wireless one. With a wireless transmission range of up to 82 ft. (25 m) users can extend the range of their wired USB™ camera without having to deal with tangled cables regardless of the room layout. In addition to transmitting both video and audio wirelessly this compact and lightweight camera extender works with Windows®, macOS®, and Chrome OS™ devices, making it a great addition to any meeting room, streaming setup, and other similar environments.
Specifications
| Features |
|---|
| Plug and Play |
Yes |
| Compatible products |
Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”
TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically |
| Compatibility |
Available USB-C® or USB™ Type-A port
Windows® 11 / 10
macOS® 10.10 or later
Chrome OS™ |
| Technical details |
|---|
| Plug and Play |
Yes |
| Package type |
Box |
| Compatible products |
Display may vary depending on environment. Solid and nonporous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distance or loss of signal.
Priority of Audio-Output on the ports of TX would be “3.5mm Speaker→ USB™ Speaker/microphone → USB™ camera with speaker/microphone”
TX and RX devices will connect and pair each other automatically. If devices are properly be paired and USB™ camera has been connect with TX, then camera will be activated automatically |
| Connectivity technology |
Wired & Wireless |
| Compatibility |
Available USB-C® or USB™ Type-A port
Windows® 11 / 10
macOS® 10.10 or later
Chrome OS™ |
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
|---|
| USB ports quantity |
3 |
| USB connector type |
USB Type-A, USB Type-C |
| Audio included |

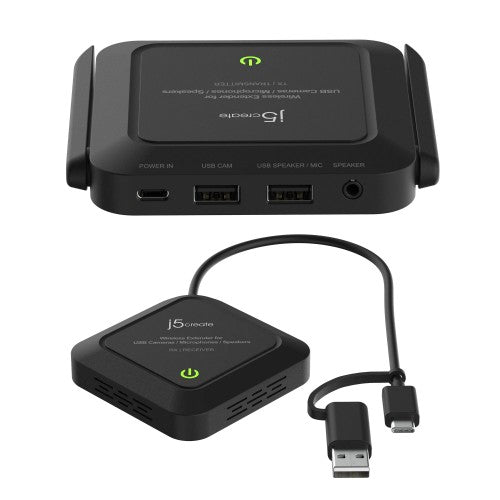

TX│Transmitter: 1 - USB-C® Power In 1 - USB™ Type-A Female (Camera) 1 - USB™ Type-A female (Speaker/Microphone) 1 - 3.5 mm Speaker Out |
| Connectivity technology |
Wired & Wireless |
| Power |
|---|
| Power note |
TX Transmitter: 1 - DC 5V/3A Power Adapter RX│Receiver: 1 - Bus Power through USB-C® |
| Power source type |
DC, USB |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 85% |
| Operating relative humidity (H-H) |
0 - 85% |
| Weight & dimensions |
|---|
| Receiver weight |
55.5 g |
| Transmitter weight |
112 g |
| Transmitter dimensions (WxDxH) |
95 x 95 x 23 mm |
| Receiver dimensions (WxDxH) |
67 x 67 x 21 mm |
| Package depth |
124 mm |
| Package width |
193 mm |
| Package height |
50 mm |
| Package weight |
416 g |
| Packaging data |
|---|
| Package type |
Box |
| Package depth |
124 mm |
| Package width |
193 mm |
| Package height |
50 mm |
| Package weight |
416 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Packaging content |
1 - JVW120 Wireless Extender for USB™ Cameras / Microphones / Speakers set (1 x Transmitter & 1 x
Receiver)
1 - DC 5V/3A Power Adapter
1 - Hook and loop fastener
1 - Quick Installation Guide (QIG) |
