Description

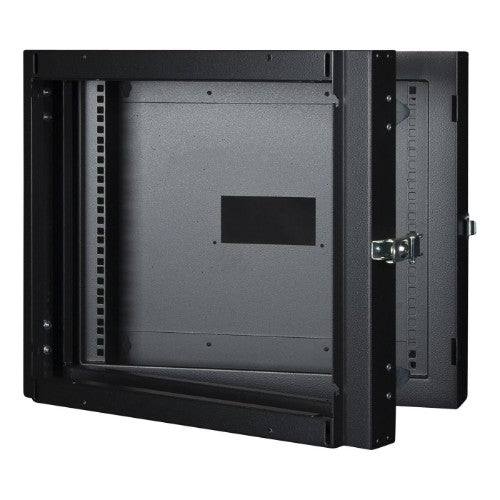

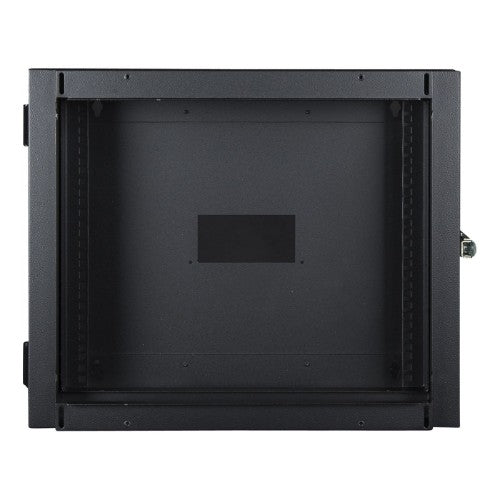

by Logon 19" Rack Cabinet 9U Double Section
Weight(kg): 14
Product dimensions WxDxH(mm): 600x150x498
Ah Wall mounting hole gaps(mm): 389
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.
Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.

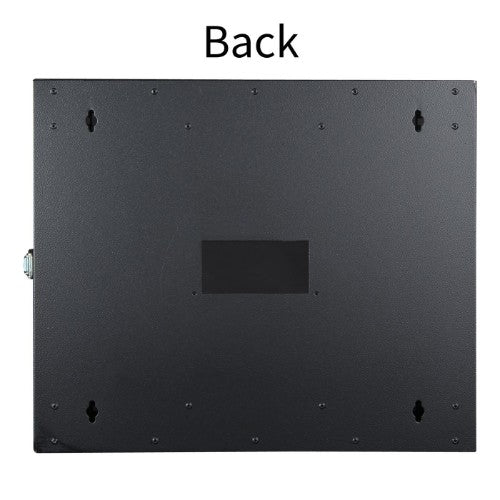

By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.
While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.
By this means ease of installation and maintenance is provided.
Package dimensions(mm): 655x200x525
Description
LOGON PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 09UWeight(kg): 14
Product dimensions WxDxH(mm): 600x150x498
Ah Wall mounting hole gaps(mm): 389
RAL: 9005
Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.
Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.
By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.
While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.
By this means ease of installation and maintenance is provided.
Package dimensions(mm): 655x200x525
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 9U |
| International Protection (IP) code | IP20 |
| Mounting hole shape | Round |
| Maximum weight capacity | 80 kg |
| Material | Steel |
| Cooling type | Passive |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 620 mm |
| Package width | 620 mm |
| Package height | 150 mm |
| Package weight | 14.5 kg |
| Width | 600 mm |
| Depth | 150 mm |
| Height | 498 mm |
| Weight | 14 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 80 kg |
| Packaging data | |
| Package depth | 620 mm |
| Package width | 620 mm |
| Package height | 150 mm |
| Package weight | 14.5 kg |
| Technical details | |
| Package width | 620 mm |
| Package height | 150 mm |
| Size (imperial) | 48.3 cm (19") |
| Cooling type | Passive |
| Rack capacity | 9U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
