Description

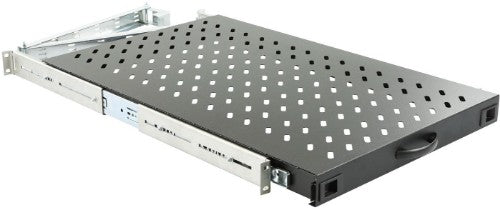

by Logon HEAVY DUTY TYPE D=1000 SERVER SLIDING SHELF BLACK
19" 4 point connected heavy duty type server fixed shelves
Dimensions(mm): W: 486 x D: 740 x H: 45 mm
Maximum static load(kg): 50
Color: RAL 9005
Heavy duty movable shelves are server cabinet shelves with high resistance, adaptable to all 19", D=1000 cabinets, movable throughout the depth, and bearing ventilation slots thereon. Thanks to depth adjustable side brackets found at the front and back, they are able to establish connection at 4 points from back and front.
Moving mechanism may be locked by means of 2 fl ap locks introduced on the left and right, when inside the cabinet. They are delivered with acrobatic arms at their backs, organizing cabling of the devices.
Description
Model: Logon RAS425BL19" 4 point connected heavy duty type server fixed shelves
Dimensions(mm): W: 486 x D: 740 x H: 45 mm
Maximum static load(kg): 50
Color: RAL 9005
Heavy duty movable shelves are server cabinet shelves with high resistance, adaptable to all 19", D=1000 cabinets, movable throughout the depth, and bearing ventilation slots thereon. Thanks to depth adjustable side brackets found at the front and back, they are able to establish connection at 4 points from back and front.
Moving mechanism may be locked by means of 2 fl ap locks introduced on the left and right, when inside the cabinet. They are delivered with acrobatic arms at their backs, organizing cabling of the devices.
Specifications
| Features | |
|---|---|
| Compatible rack width | 19" |
| Rack capacity | 1U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Mounting hole shape | Oval |
| Weight & dimensions | |
| Package weight | 6.68 kg |
| Width | 483 mm |
| Weight | 6.67 kg |
| Height | 44 mm |
| Depth | 720 mm |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Package weight | 6.68 kg |
| Technical details | |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 486 x 740 x 44 mm |
| Static load | 50 Kg |
| Colour | |
| Product colour | Black |
| Other features | |
| Dimensions (WxDxH) | 486 x 740 x 44 mm |
| Static load | 50 Kg |
