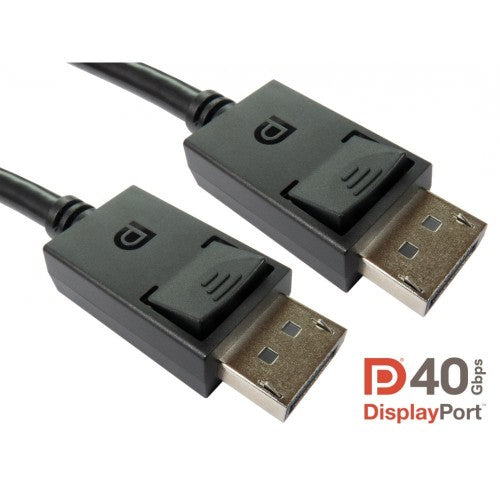

1m DisplayPort v2.1 DP40 cable
Key Features
- Black ABS hood
- Nickel plated connector
- 40Gbps Bandwidth (UHBR10)
- Supports: 1080p@360Hz, 2K@240Hz, 4K@165Hz, 8K@60Hz (DSC), 16K@30Hz (DSC) resolution
- Supports 32-bit audio channels and 1536KHz audio sample frequency
- Supports PCM, AC-3, DTS and other audio formats
- Supports Multi-Stream Transport (MST)
- Supports 3D visual effects
- Supports Dynamic HDR
- Compatible with G-Sync and FreeSync vertical synchronization technology
Description
Our CDLDP40 range of DisplayPort v2.1 cables are VESA Certified DP40 cables and support transmission modes up to UHBR10. The cables support resolutions up to 1080p 360Hz, 4K @ 165Hz and 8K @ 60Hz (using Display Stream Compression).
Specifications
| Features |
|---|
| Product colour |
Black |
| Cable length |
1 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Nickel |
| DisplayPort version |
2.1 |
| Data transfer rate |
40 Gbit/s |
| 3D |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| Multi-Stream Transport (MST) |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Display Stream Compression (DSC) |
Yes |
| Dolby technologies |
DTS |
| Other features |
|---|
| Supported resolutions |
1080p@360Hz, 2K@240Hz, 4K@165Hz, 8K@60Hz (DSC), 16K@30Hz |
