Description
the new fiber tester Ideal for troubleshooting on fiber network

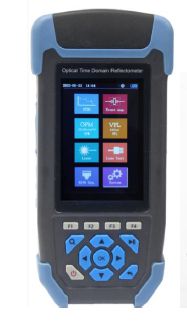

fiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof.
The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , RJ45cable sequence , IL and lighting functions.
It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Key Features
- Wave Range 800~1700nm
- Universal Joint FC/SC/ST
- 3.5 inch color LCD Screen
Description
Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to testfiber breakpoint , length, loss and input light automatic detection, automatic test by one key. The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof.
The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , RJ45cable sequence , IL and lighting functions.
It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging .It is a good choice for long term field work .
Specifications
| Technical details | |
|---|---|
| Supported connectors | SC |
| Test type | Transmission testing |
| Display type | LCD |
| Fiber mode structure | Multi-mode |
| Maximum cable length | 60000 m |
| Weight & dimensions | |
| Package weight | 300 g |
| Width | 82 mm |
| Depth | 42 mm |
| Height | 175 mm |
| Weight | 260 g |
| Dimensions (WxDxH) | 175 x 82 x 42 mm |
| Power | |
| Standby time | 20 h |
| Battery capacity | 4000 mAh |
| Logistics data | |
| Products per master (outer) case | 18 pc(s) |
| Quantity per pack | 1 pc(s) |
