Description

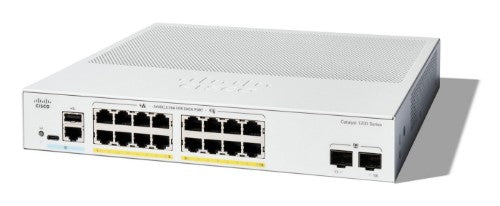

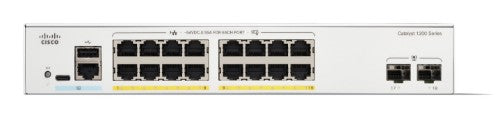

Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)
Key Features
- SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)
- SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
- SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
- ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
- PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
Description
The Cisco Catalyst 1200-16P-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 255 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| IGMP snooping | Yes |
| IGMP entries | 255 |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 32 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 26.78 Mpps |
| Number of VLANs | 255 |
| Security | |
| Loop protection | Yes |
| Authentication | Guest VLAN |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| IGMP entries | 255 |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Product colour | Grey |
| LED indicators | Yes |
| Rack mounting | Yes |
| Country of origin | China |
| Performance | |
| Mean time between failures (MTBF) | 706983 h |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power consumption (max) | 156.4 W |
| Power plug type | Type C |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Country of origin | China |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 536.05 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 255 |
| Weight & dimensions | |
| Width | 296.9 mm |
| Depth | 268.2 mm |
| Height | 43.9 mm |
| Weight | 2.38 kg |
| Packaging data | |
| Package width | 414 mm |
| Package depth | 399 mm |
| Package height | 108 mm |
| Package weight | 4.11 kg |
| Technical details | |
| Product colour | Grey |
| Mean time between failures (MTBF) | 706983 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Indication | |
| LED indicators | Yes |
| Packaging content | |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Logistics data | |
| Country of origin | China |
