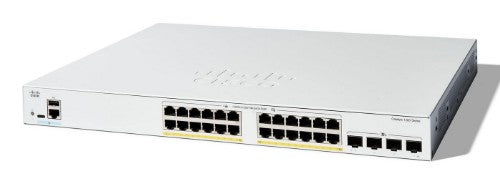

Cisco Catalyst 1200-24FP-4X Smart Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1200-24FP-4X)

Cisco Catalyst 1200-24FP-4X Smart Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1200-24FP-4X)

Key Features

• SWITCH PORTS: 24 ports 10/100/1000 + 4x 10GE SFP+ (total PoE power budget: 375W, PoE, PoE+)
• SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
• SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
• ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
• PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

Description

The Cisco Catalyst 1200-24FP-4X switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Specifications

Management features
ARP inspection	Yes
Reset button	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	Yes
Switch layer	L2/L3
Configuring Location Settings (CLI)	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	4
Network
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Flow control support	Yes
Ethernet LAN data rates	1000 Mbit/s
Broadcast storm control	Yes
IGMP snooping	Yes
Data transmission
Jumbo frames	9000
Jumbo frames support	Yes
Static route	Yes
Security
SSH/SSL support	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Multicast features
Multicast support	Yes
Design
Reset button	Yes
Product colour	White
LED indicators	Yes
Housing material	Metal
Country of origin	China
Performance
Processor frequency	1400 MHz
Internal memory	1024 MB
Flash memory	512 MB
Power
Power plug type	Type C
Power supply included	Yes
Power source	AC
Other features
Packaging content	Switch, power cable, USB Type C cable and mounting hardware
Ethernet LAN data rates	1000 Mbit/s
Country of origin	China
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	350 mm
Depth	444.5 mm
Height	43.9 mm
Packaging data
Package width	512.1 mm
Package depth	575.1 mm
Package height	108 mm
Package weight	7.18 kg
Technical details
Product colour	White
Processor frequency	1400 MHz
Housing material	Metal
Memory
Internal memory	1024 MB
Flash memory	512 MB
Indication
LED indicators	Yes
Packaging content
Packaging content	Switch, power cable, USB Type C cable and mounting hardware
Logistics data
Country of origin	China
