RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M
Key Features

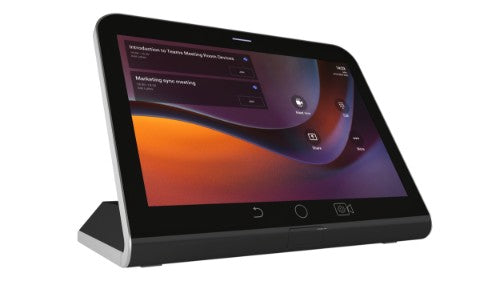

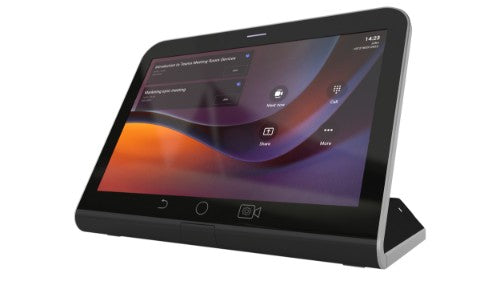

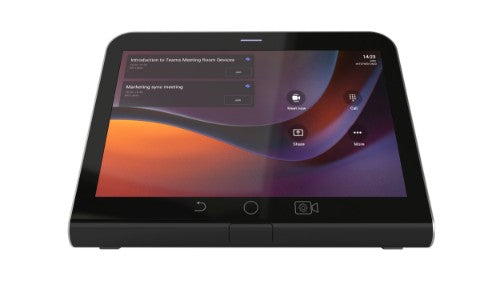

- RX-PAD is packed with exciting new features like one-click collaboration initiation via an integrated calendar, seamless content sharing, quick and easy camera adjustments, and much more

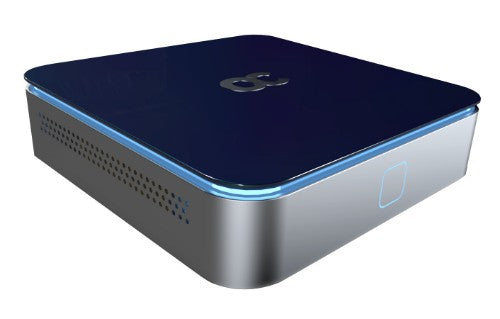

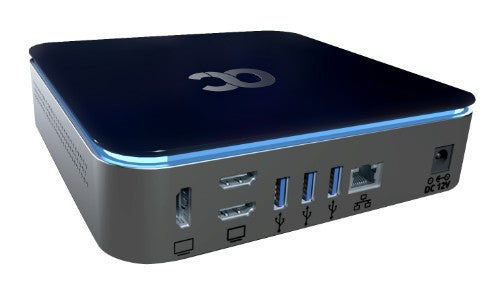

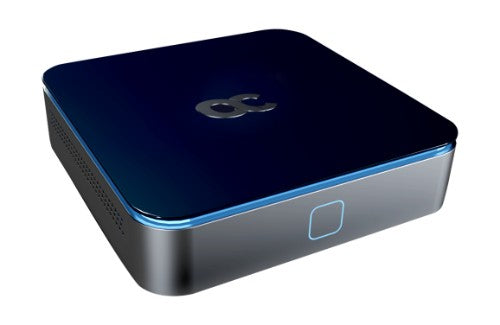

- RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room
- The RX15 speakerphones offers a 6 element microphone array with a range of 2.5 meters/8 feet covers up to 8 people in a meeting room
- RXVCam50M provides a superb video quality (HD 4K video at 30fps)
- 10x digital zoom for focusing and zooming in on distant users and objects
- Ideal for rooms up to medium-size
Description

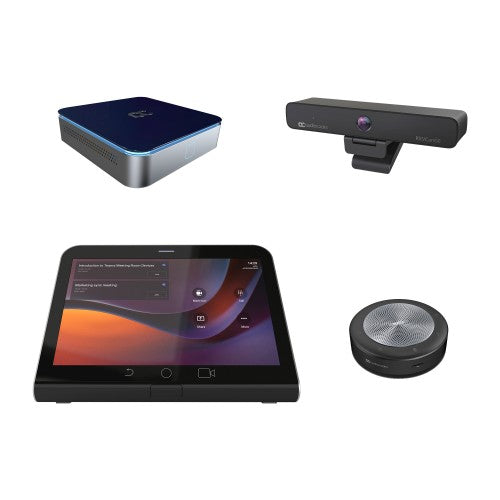

The RXV200-B20 bundle takes your small to medium space to a complete meeting room with compute device (RXV200), camera (RXVCam50M), meeting room controller (RX-PAD), and speakerphone (RX15).Modern meeting devices must be adaptable enough to accommodate any room size or shape, while minimizing the number of table-mounted accessories and devices apart from a microphone and a meeting room controller like the AudioCodes RX-PAD. The RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room, thereby facilitating the adoption of new and advanced devices to keep up with latest technology trends without excessive expenditure. Together with the RX-PAD meeting controller, it provides an easy meeting room experience that significantly boosts productivity.
Specifications
| Performance |
|---|
| Product type |
Group video conferencing system |
| Number of persons |
10 person(s) |
| Product colour |
Black |
| Signal-to-Noise Ratio (SNR) |
75 dB |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Number of cameras |
1 |
| Technical details |
|---|
| Product type |
Group video conferencing system |
| Number of persons |
10 person(s) |
| Product colour |
Black |
| Signal-to-Noise Ratio (SNR) |
75 dB |
| PTZ control |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| Number of cameras |
1 |
| Video |
|---|
| HD type |
4K Ultra HD |
| Resolution at capture speed |
640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1920x1080@25fps, 1920x1080@30fps, 3840x2160@30fps |
| Megapixel (approx.) |
8.28 MP |
| Digital zoom |
10x |
| Aspect ratio |
16:9 |
| Supported graphics resolutions |
640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum video resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Microphone pick-up range |
2.5 m |
| Frequency range |
150 - 16000 Hz |
| Output voltage Total Harmonic Distortion (THD) |
4% |
| Built-in speaker(s) |
Yes |
| Automatic gain control |
Yes |
| Number of speakers |
1 |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
1 |
| Interface module |
|---|
| Interface module HDMI ports quantity |
3 |
| Interface module HDMI input ports quantity |
1 |
| Interface module HDMI output ports quantity |
2 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Supported network protocols |
TCP/IP (IPv4) |
| Security algorithms |
256-bit AES, 802.1x RADIUS, SRTP, TLS |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p |
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| Camera |
|---|
| Sensor type |
CCD |
| Image sensor size |
1/2.5" |
| Focal length range |
2.26 mm |
| Minimum illumination |
0.1 lx |
| Horizontal field of view |
100° |
| Megapixel (approx.) |
8.28 MP |
| Digital zoom |
10x |
| 3D NR (Noise Reduction) |
Yes |
| Vertical field of view |
64° |
| Diagonal field of view |
102° |
| Camera type |
Single camera |
| Zoom capability |
Yes |
| Display |
|---|
| Built-in display |
Yes |
| Display diagonal |
20.3 cm (8") |
| Display resolution |
1280 x 800 pixels |
| Touchscreen |
Yes |
| Microphone |
|---|
| Microphone sensitivity |
38 dB |
| Microphone frequency |
150 - 8000 Hz |
| Microphone colour |
Black |
| Sound pressure level (max) |
65 dB |
| Number of microphone arrays |
6 |
| Security |
|---|
| Security algorithms |
256-bit AES, 802.1x RADIUS, SRTP, TLS |
| Features |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Computer system |
|---|
| Computer system type |
mini PC |
| Processor family |
Qualcomm Snapdragon |
| Operating system installed |
Android |
| Processor model |
QCS8250 |
| Computer case |
|---|
| Computer system type |
mini PC |
| Processor family |
Qualcomm Snapdragon |
| Operating system installed |
Android |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
20 - 90% |
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Power |
|---|
| DC input voltage |
12 V |
| Current |
3 A |
| Power source type |
DC |
| Weight & dimensions |
|---|
| Speaker dimensions (WxDxH) |
120 x 120 x 35.2 mm |
| Camera dimensions (WxDxH) |
220 x 93.75 x 56.5 mm |
| Interface module dimensions (W x D x H) |
170 x 170 x 41.3 mm |
| Interface module weight |
750 g |
| Speaker weight |
395 g |
