Description
5× 10/100/1000 Mbps RJ45, 10 Gbps, 2K MAC, 5V/0.6A, 99.8 x 98 x 25.1mm
Longer Usage Life
5-Port Gigabit Desktop Switch

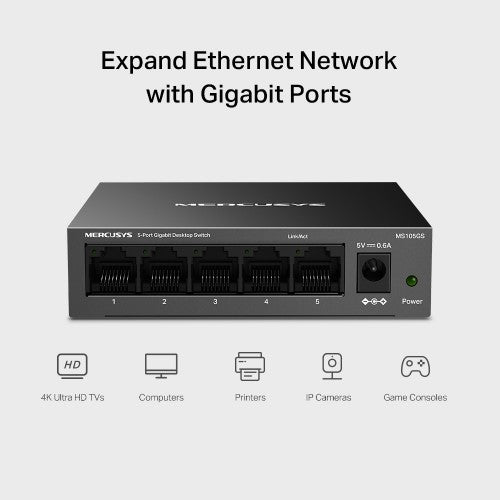

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Durable, Silent, and Flexible
MS105GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Key Features
- Full Gigabit Ports: 5× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Multiple Installation Operation: Steel housing, desktop or wall-mounting design

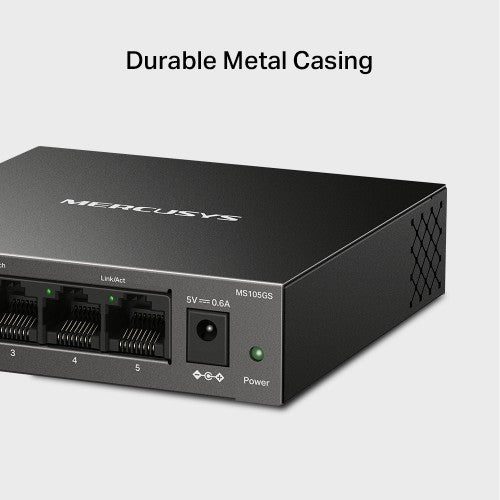

- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- Power Saving: Green Ethernet technology saves power
Description
More Efficient TransmissionLonger Usage Life
5-Port Gigabit Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105GS is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Durable, Silent, and Flexible
MS105GS‘s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or wall mount to meet your demand.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105GS provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Network | |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Optical fiber | |
| Transmission distance (max) | 0.1 km |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.125 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | No |
| Certification | CE, RoHS |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 0.125 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 3.614 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 12.331 BTU/h |
| Weight & dimensions | |
| Width | 99.8 mm |
| Depth | 98 mm |
| Height | 25.1 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Housing material | Metal |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 0.125 MB |
| Certificates | |
| Certification | CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | AC |
