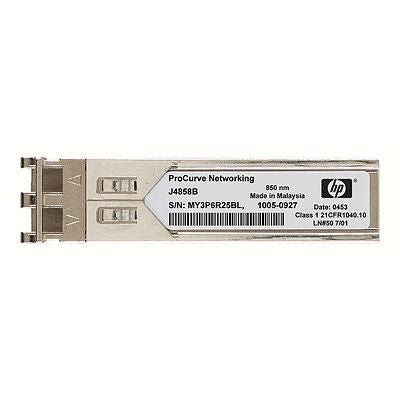

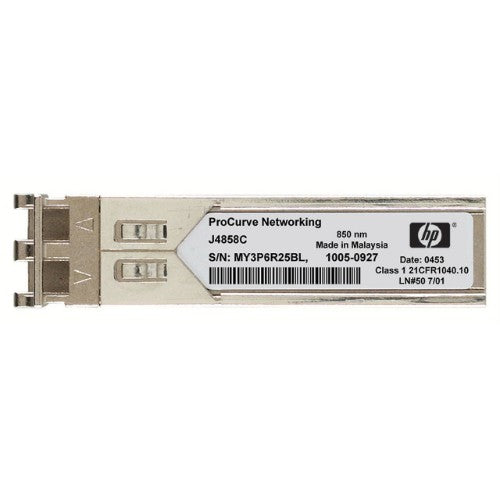

X121 1G SFP LC SX Transceiver, Refurbished
Description
A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550 m on multimode fiber.
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Fiber ports quantity |
1 |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| Technical details |
|---|
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Duplex system |
Full |
| Ports & interfaces |
|---|
| Fiber ports quantity |
1 |
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Fiber ports quantity |
1 |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Duplex system |
Full |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SX |
| Weight & dimensions |
|---|
| Width |
56.9 mm |
| Depth |
13.7 mm |
| Height |
12.2 mm |
| Weight |
20 g |
