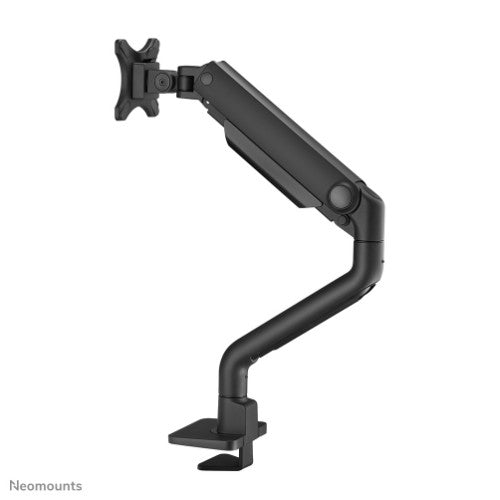

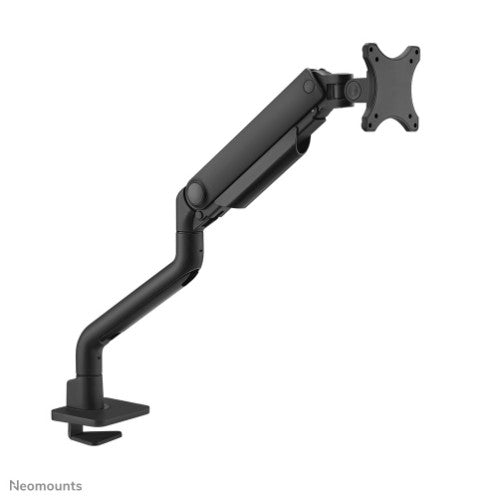

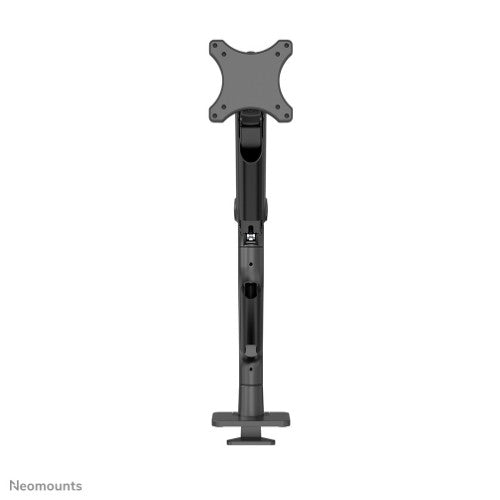

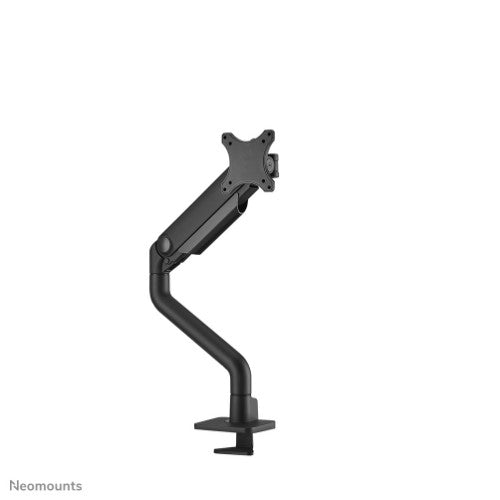

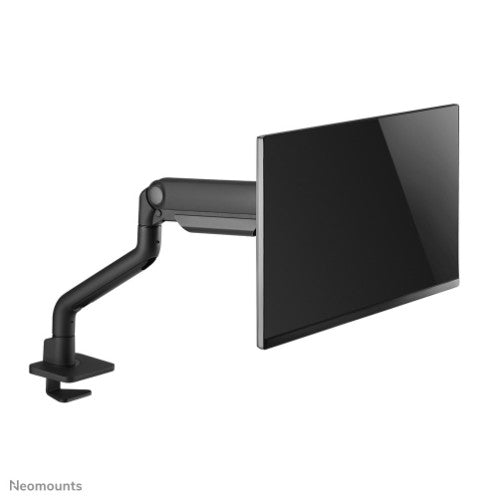

Neomounts DS70S-950BL1 Monitor arm 17-49" - gas spring - Topfix - 180°-stop

Neomounts NEXT One DS70S-950BL1 Single monitor arm - 17-49" - 1-18 kg (curved 15 kg) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black

Description

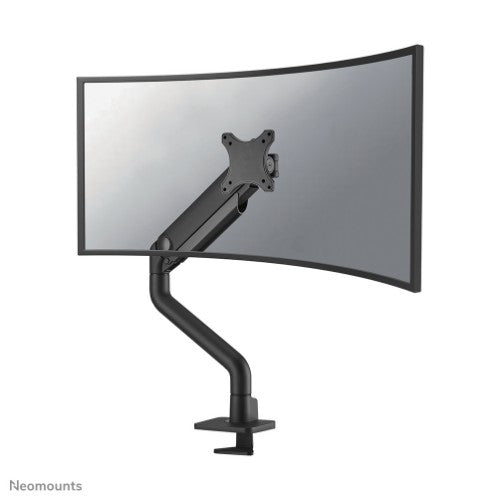

The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

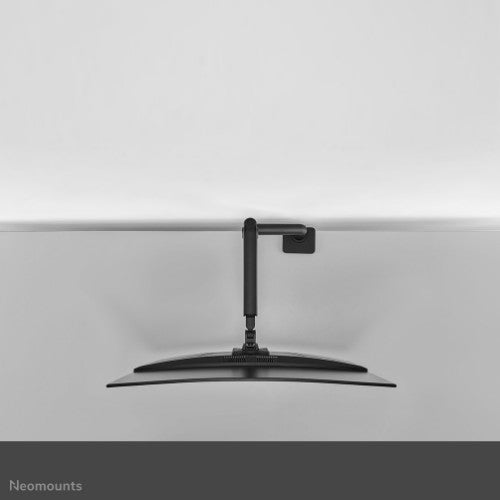

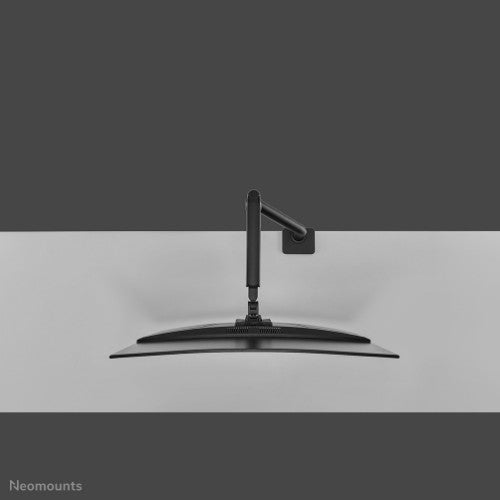

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Specifications

Mounting
Maximum weight capacity (per display)	18 kg
Desk thickness (min)	1 cm
Desk thickness (max)	5.5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Distance to the wall (min)	11.9 cm
Distance to the wall (max)	65.6 cm
Maximum weight capacity	18 kg
Maximum screen size	124.5 cm (49")
Clamp mount desk thickness (max)	5 cm
Grommet mount desk thickness (max)	5.5 cm
Maximum weight capacity (per curved/ultra-wide display)	15 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	88 - 625 mm
Height adjustment	Yes
Height adjustment range	200 - 520 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-90 - 90°
Angle of rotation	360°
Number of arms	1
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Width adjustment	107.4 cm
Design
Easy to install	Yes
Product colour	Black
Housing material	Aluminium
Technical details
Mounting type	Desk
Minimum weight	1 kg
Distance to the wall (min)	11.9 cm
Distance to the wall (max)	65.6 cm
Product colour	Black
Width adjustment range	0 - 1074 mm
Cable management	Yes
Warranty period	10 year(s)
Weight & dimensions
Width	135 mm
Depth	656 mm
Height	579 mm
Weight	3.72 kg
Package width	333 mm
Package depth	122 mm
Package height	423 mm
Package type	Box
Package weight	4.3 kg
Package net weight	4.3 kg
Packaging data
Package width	333 mm
Package depth	122 mm
Package height	423 mm
Package type	Box
Package weight	4.3 kg
Package net weight	4.3 kg
Other features
Minimum weight	1 kg
Width adjustment range	0 - 1074 mm
Warranty period	10 year(s)
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	355 mm
Master (outer) case length	290 mm
Master (outer) case height	490 mm
Master (outer) case gross weight	17.9 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	80 pc(s)
Master (outer) case net weight	14.9 kg
Harmonized System (HS) code	7326909890
