Neomounts DS75S-950BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop

Neomounts NEXT One DS75S-950BL2 Dual crossbar monitor arm - 17-32" - 1-8 kg/screen - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black

Description

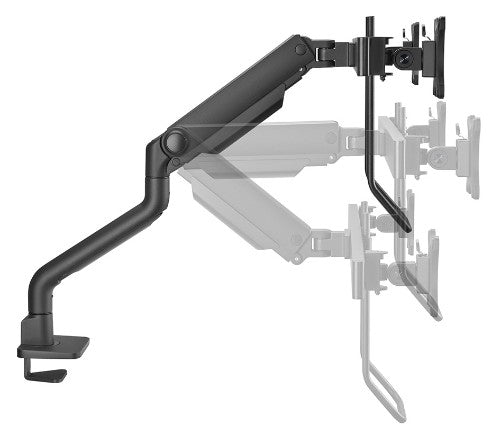

The Neomounts DS75S-950BL2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.

The DS75S-950BL2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS75S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper.The NEXT One products have an extended warranty period of 10-years.

Specifications

Mounting
Maximum weight capacity (per display)	8 kg
Desk thickness (min)	1 cm
Desk thickness (max)	5.5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	75 x 75 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Distance to the wall (min)	20.4 cm
Distance to the wall (max)	74.1 cm
Maximum screen size	81.3 cm (32")
Clamp mount desk thickness (max)	5 cm
Grommet mount desk thickness (max)	5.5 cm
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	173 - 710 mm
Height adjustment	Yes
Height adjustment range	191 - 527 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-60 - 60°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Easy to install	Yes
Product colour	Black
Housing material	Aluminium
Technical details
Mounting type	Desk
Minimum weight	1 kg
Distance to the wall (min)	20.4 cm
Distance to the wall (max)	74.1 cm
Product colour	Black
Width adjustment range	0 - 1074 mm
Cable management	Yes
Warranty period	10 year(s)
Weight & dimensions
Width	833 mm
Depth	739 mm
Height	1085 mm
Weight	5.76 kg
Package width	222 mm
Package depth	120 mm
Package height	887 mm
Package type	Box
Package weight	7.1 kg
Package net weight	7.1 kg
Packaging data
Package width	222 mm
Package depth	120 mm
Package height	887 mm
Package type	Box
Package weight	7.1 kg
Package net weight	7.1 kg
Other features
Minimum weight	1 kg
Width adjustment range	0 - 1074 mm
Warranty period	10 year(s)
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	240 mm
Master (outer) case length	260 mm
Master (outer) case height	905 mm
Master (outer) case gross weight	14.9 kg
Products per master (outer) case	2 pc(s)
Country of origin	China
Products per pallet (EU)	36 pc(s)
Master (outer) case net weight	11.1 kg
Harmonized System (HS) code	7326909890
