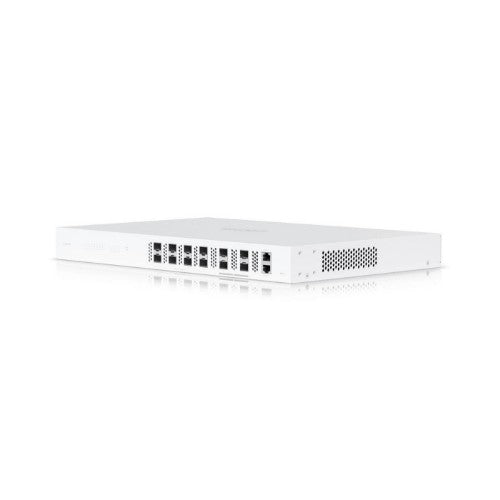

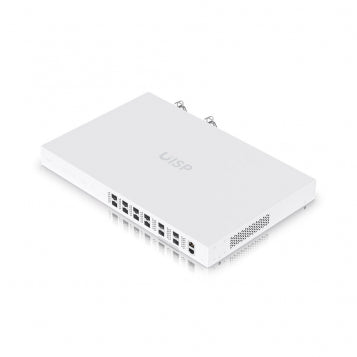

8 port, 10 Gbps uplink/downlink, 2,000 subscribers, 512 MB DDR3, 64 MB NOR + 512 MB NAND, SGCC steel, white
Key Features
- XGSPON 10 Gbps bi-directional capacity
- 2048 Client capacity (8 ports)
- (4) 25G SFP28 uplink ports
- 1U Rack mount
- AC/DC power module redundancy support
Description
An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
2 |
| Installed SFP+ modules quantity |
8 |
| Fiber optic connector |
SFP+, SFP28 |
| Console port |
RJ-45 |
| Power connector |
AC-in jack |
| SFP28 ports quantity |
4 |
| Network |
|---|
| 10G support |
Yes |
| Data transmission |
|---|
| Switching capacity |
10 Gbit/s |
| Design |
|---|
| Reset button |
Yes |
| Form factor |
1U |
| Product colour |
White |
| LED indicators |
Yes |
| Housing material |
Steel |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
70 W |
| Number of power supply units |
2 |
| Power source |
AC/DC |
| Power connector |
AC-in jack |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 45 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Weight & dimensions |
|---|
| Width |
442 mm |
| Depth |
286 mm |
| Height |
44 mm |
| Weight |
5.29 kg |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Optical fiber |
|---|
| Fiber optic connector |
SFP+, SFP28 |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
White |
| Housing material |
Steel |
| Rack mounting |
Yes |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
| Indication |
|---|
| LED indicators |
Yes |
