Description
XG/XGS-PON, Optical, Single-mode, 10 Gbps, up to 20 km, 2.6W
Key Features
- 10 Gbps throughput
- Compatible with UISP Fiber OLT XGS, UISP Fiber XG/XGS
- Supports connections up to 20 km
Description

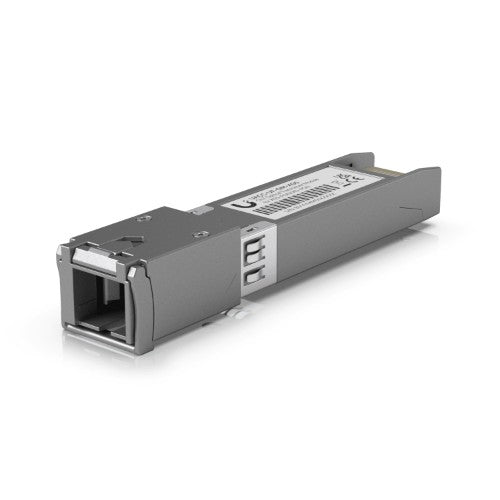

10 Gbps optical transceiver module designed for the UISP Fiber OLT XGS.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (min) | 1.577 nm |
| Tx wavelength (max) | 1.577 nm |
| Rx wavelength (max) | 1.27 nm |
| Fiber optic connector | SC/UPC |
| Maximum transfer distance | 20000 m |
| Tx power (min) | 4 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -9 dBmW |
| Rx power (max) | -26 dBmW |
| Maximum data transfer rate | 10000 Mbit/s |
| Single-mode fiber (SMF) supported | Yes |
| Product colour | Silver |
| Features | |
| Product colour | Silver |
| Certificates | |
| Compliance certificates | CE, UKCA |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | SC/UPC |
| Maximum data transfer rate | 10000 Mbit/s |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Maximum transfer distance | 20000 m |
| Tx power (min) | 4 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -9 dBmW |
| Rx power (max) | -26 dBmW |
| Sustainability compliance | Yes |
| Compliance certificates | CE, UKCA |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
