Description

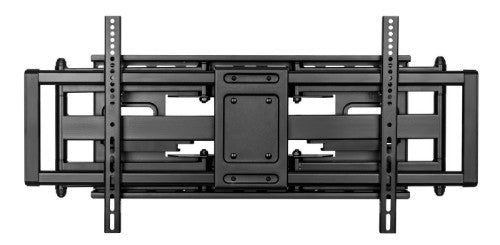

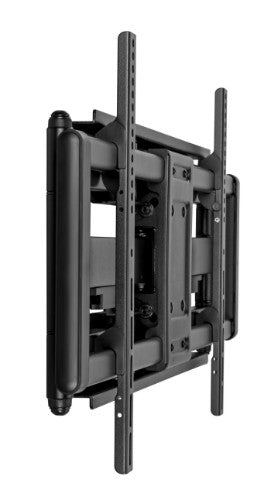

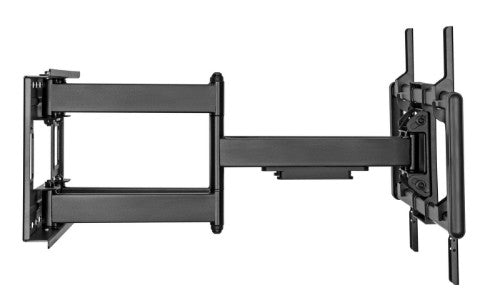

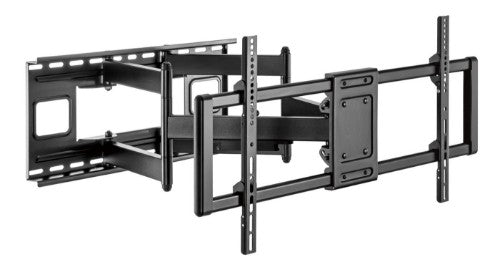

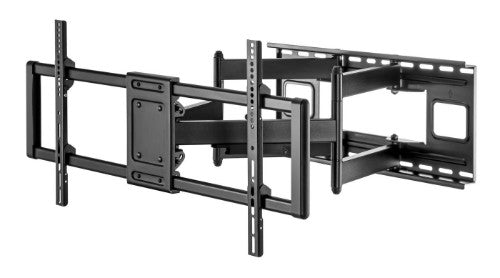

Pro Large Wall Mount w. Arm, Max 120 kg, Up to VESA 800x400
With tilt and swivel
Typical installations: Meeting rooms, restaurants, offices, hotels or living room.
Key Features
- Premium Aluminium wall mount for screen size 43” to 100”
- Matching up to VESA 800x400
- Max loading capacity: 120kgs
- Cable management
Description
X-large display wall mount full motion, in solid construction in steel/aluminum black design.With tilt and swivel
Typical installations: Meeting rooms, restaurants, offices, hotels or living room.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 109.2 cm (43") |
| Panel mounting interface | 200 x 200 mm |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 800 x 400 mm |
| Maximum screen size | 2.29 m (90") |
| Maximum weight capacity | 70 kg |
| Ergonomics | |
| Tilt angle range | -5 - 10° |
| Swivel angle | 60° |
| Distance to the wall (min) | 6.9 cm |
| Distance to the wall (max) | 66.1 cm |
| Technical details | |
| Distance to the wall (min) | 6.9 cm |
| Distance to the wall (max) | 66.1 cm |
| Product colour | Black |
| Mounting interface | VESA |
| Extended length | 66.1 cm |
| Mounting type | Wall |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Width | 340 mm |
| Depth | 945 mm |
| Height | 80 mm |
| Weight | 15.3 kg |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 965 mm |
| Package height | 90 mm |
| Package weight | 16.8 kg |
| Other features | |
| Extended length | 66.1 cm |
| Mounting type | Wall |
| Mounting interface | VESA |
