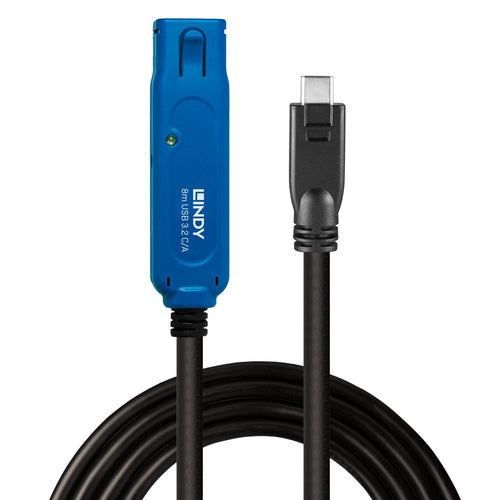

8m USB 3.2 Gen 1 C/A Active Extension Pro

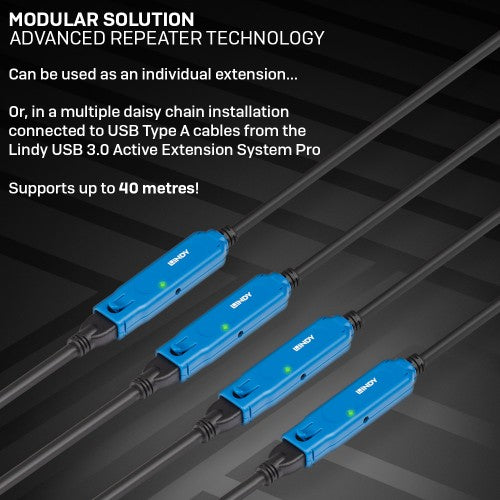

This 8m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 8m (Nr. 43381) or the 5m version (Nr. 43380) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.

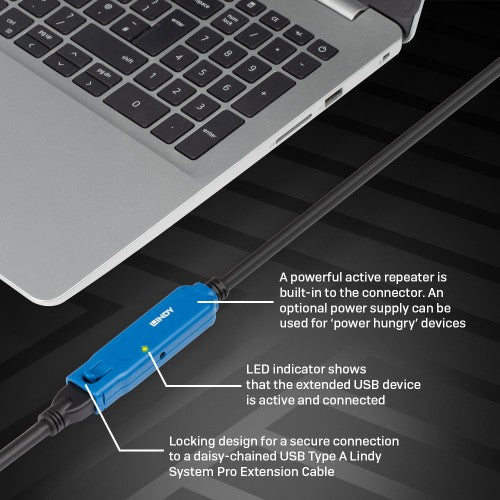

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Key Features
- High performance, active cable that provides an extended 8m connection between a computer with USB Type C port and a USB Type A device
- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cables used)
- Supports the full USB 3.2 / 3.1 Gen 1 / USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps
- USB Power Adapter cable included
Description
The Lindy USB 3.2 Gen 1 C/A Active Extension Cable Pro is a high performance active cable that allows access to USB peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.This 8m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 8m (Nr. 43381) or the 5m version (Nr. 43380) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

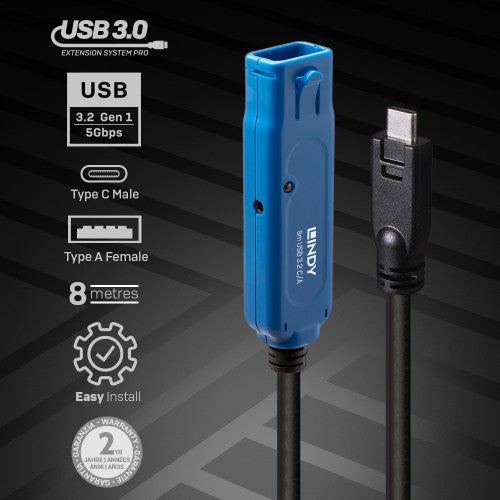

Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24/24/20 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB A |
| Cable length | 8 m |
| Connector contacts plating | Nickel/Gold |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black, Blue |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.67dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB |
| Maximum data transfer rate | 5 Gbit/s |
| Cable diameter | 7 mm |
| Weight | 630 g |
| Quantity per pack | 1 pc(s) |
| Power | |
| Power note | 2.5/0.7mm DC Connector |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Cable length | 8 m |
| Weight | 630 g |
| Bend radius (min) | 7 cm |
| Connector 1 dimensions (WxDxH) | 14 x 43.65 x 11.2 mm |
| Connector 2 dimensions (WxDxH) | 20 x 80 x 13 mm |
| Package width | 230 mm |
| Package depth | 198 mm |
| Package height | 63 mm |
| Package weight | 830 g |
| Package type | Box |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 198 mm |
| Package height | 63 mm |
| Package weight | 830 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB A |
| Connector contacts plating | Nickel/Gold |
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Technical details | |
| Product colour | Black, Blue |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Other features | |
| Package type | Box |
| Product colour | Black, Blue |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
