Description

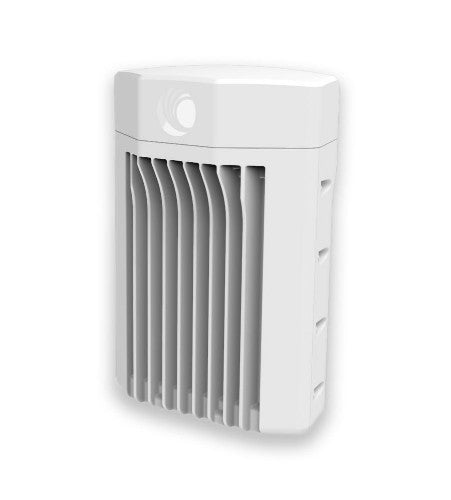

cnWave 60 GHz V5000 Distribution Node
Cambium Networks’ cnWave 60 GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/ or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
V5000 is featured with two sectors covering up to 280º with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP and PMP configurations.
Cloud and on-premises management
cnWave 60 GHz operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.
Key Features
- Supports 57 to 66 GHz
- Dual-sector with 280º coverage
- Up to 7.2 Gbps (1.8 Gbps DL and 1.8 Gbps UL per sector). Channel bonding typically doubles capacity
- TDMA/TDD channel access and Network Synchronization
- 802.11ay technology with Terragraph certification
Description
Designed for high-speed and high-density deploymentsCambium Networks’ cnWave 60 GHz solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/ or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave solutions are highly efficient at handling high-density deployments in cities and suburban areas.
V5000 is featured with two sectors covering up to 280º with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP and PMP configurations.
Cloud and on-premises management
cnWave 60 GHz operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 22.5 dBi |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at |
| Frequency band | 60 GHz |
| Modulation | 16-QAM, BPSK |
| Vertical beam width | 12° |
| Horizontal beam width | 12° |
| Features | |
| Survival wind speed | 200 km/h |
| International Protection (IP) code | IP66, IP67 |
| Purpose | Outdoor |
| Mounting | Wall/Pole |
| Product colour | White |
| Antenna gain level (max) | 22.5 dBi |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at |
| Frequency band | 60 GHz |
| Modulation | 16-QAM, BPSK |
| Vertical beam width | 12° |
| Horizontal beam width | 12° |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 65 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Weight | 4 kg |
| Width | 186 mm |
| Depth | 103 mm |
| Height | 280 mm |
| Technical details | |
| Antenna gain level (max) | 22.5 dBi |
| Frequency band | 60 GHz |
| Modulation | 16-QAM, BPSK |
| Vertical beam width | 12° |
| Purpose | Outdoor |
| Mounting | Wall/Pole |
| Horizontal beam width | 12° |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3at |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
