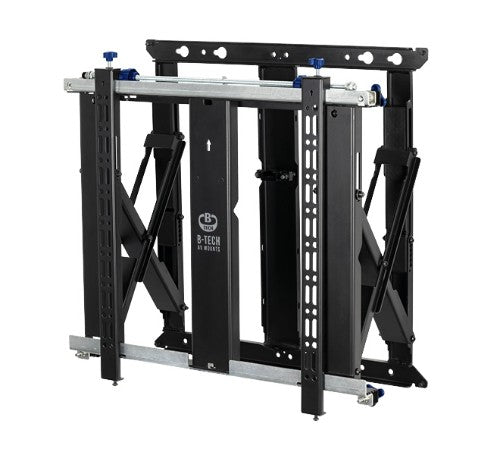

Slimline Soft-Open Full Service Videowall Mount with Micro-Adjustment (VESA 600 x 400)
Key Features
- Slim design ideal for low profile installs on walls or mounting in recesses

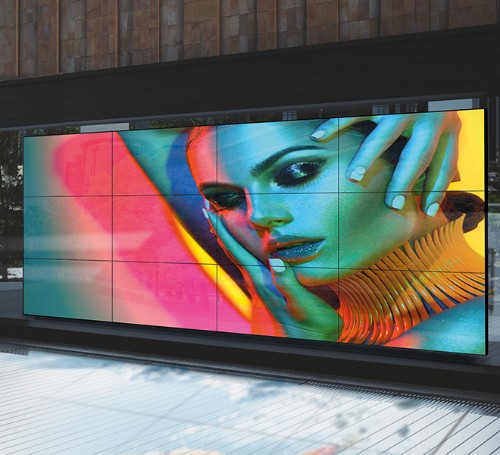

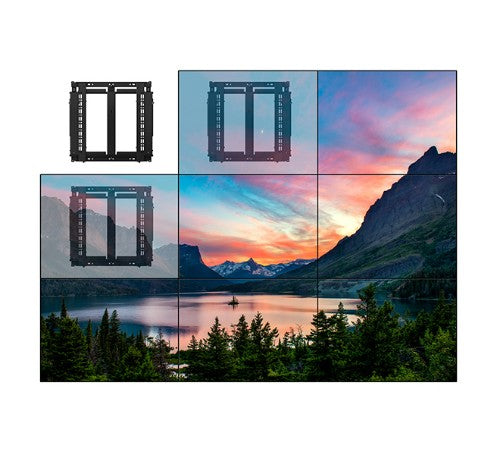

- Modular mount allows video wall assembly in an unlimited number of configurations
- Suitable for landscape or portrait screen mounting

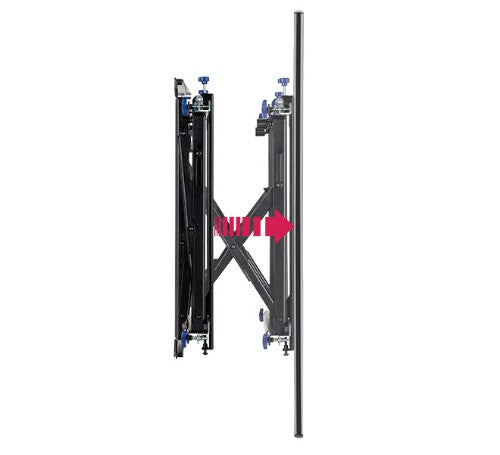

- Pop-out system with soft opening provides a safe and easy service access

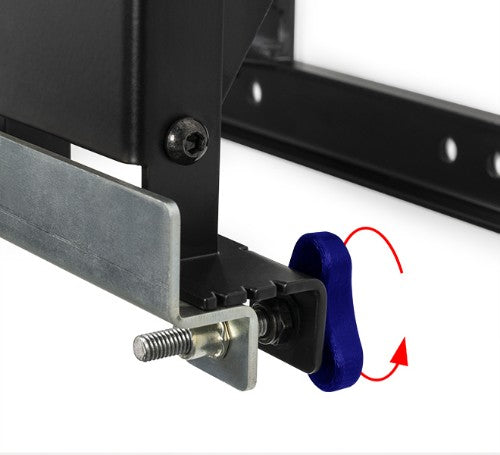

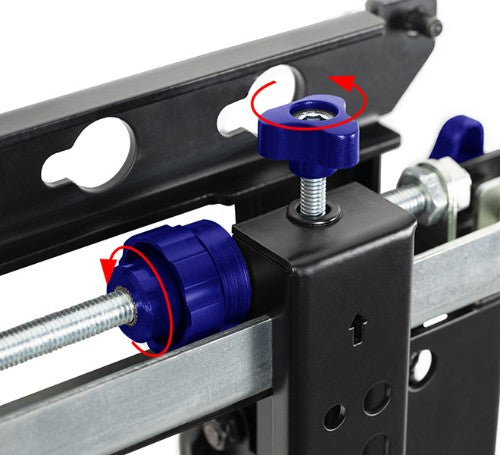

- Tool-less micro-adjustment of +/-7.5mm (0.3") at each corner for seamless display alignment

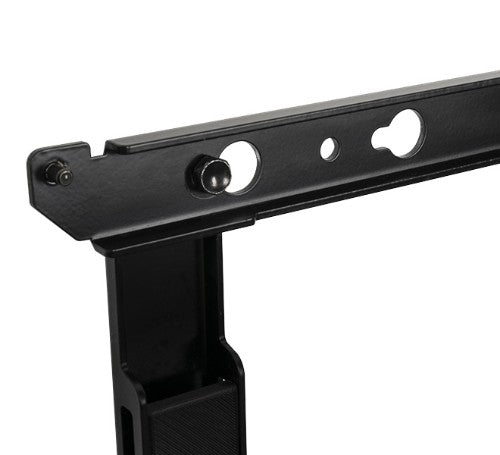

- Keyhole mounting for quick and easy installation
- Suitable for both wall or pole mounting
- Screen specific wall plate spacers kits are available (separately) to speed up installation times
- Integrated locking mechanism prevents accidental pop-out of mount
- Safety screws help prevent unauthorised removal of screens
- Adaptor arms for VESA 800 x 400 fixings (BT7565) available separately
Description
Designed to make video wall installations as quick and simple as possible, this modular video wall mount can be used to create unlimited video wall configurations in both landscape and portrait format. The BT8312 low profile design is ideal for mounting into walls with a shallow recess or when space in front of the wall is minimal. 8 points of micro-adjustment makes accurate screen alignment quick and easy and the soft opening features a controlled release enabling access to the rear of the mounted screen for servicing and maintenance.
Specifications
| Mounting |
|---|
| Minimum screen size |
106.7 cm (42") |
| Maximum weight capacity |
50 kg |
| Panel mounting interface |
200 x 100,400 x 400,600 x 400 |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Maximum screen size |
177.8 cm (70") |
| Ergonomics |
|---|

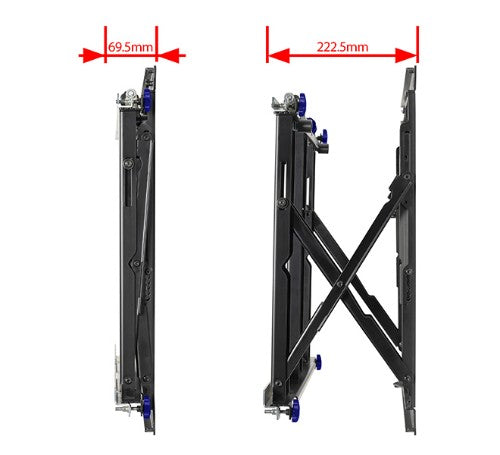

| Distance to the wall (min) |
6.31 cm |
| Distance to the wall (max) |
23.5 cm |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
620 mm |
| Height |
541.4 mm |
| Technical details |
|---|
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Distance to the wall (min) |
6.31 cm |
| Distance to the wall (max) |
23.5 cm |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
