Description

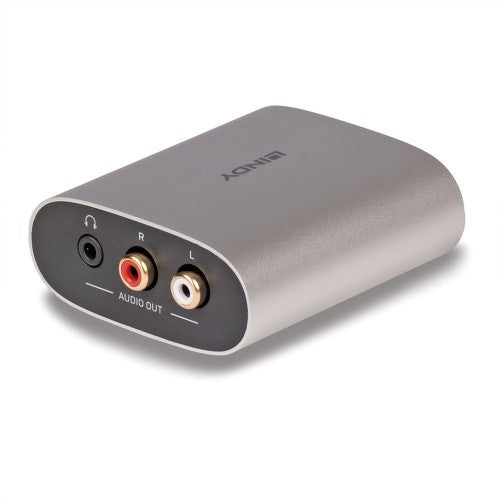

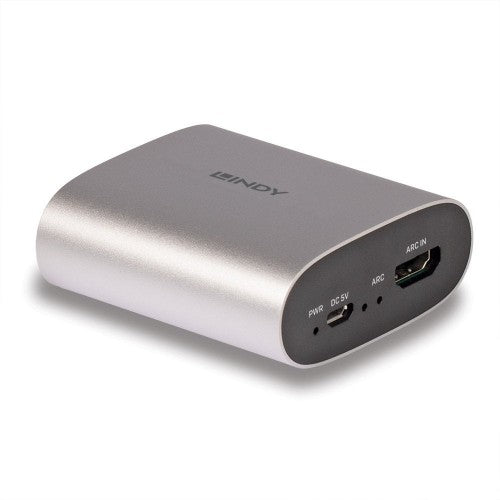

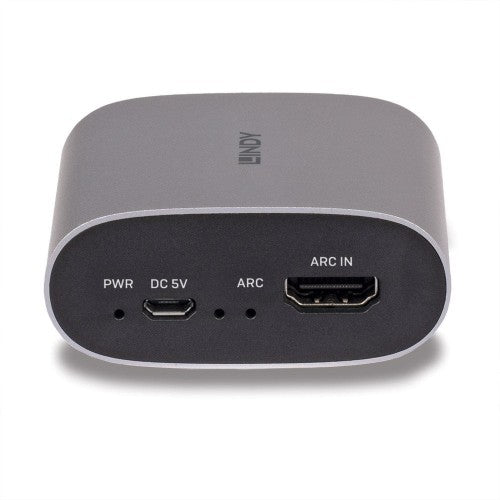

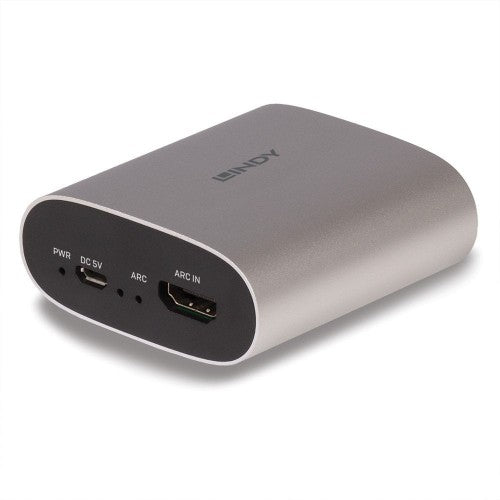

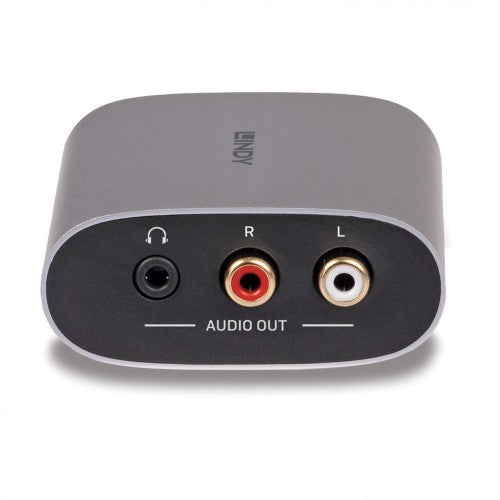

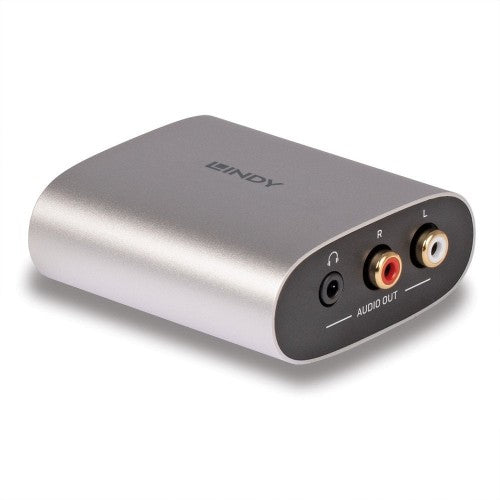

HDMI ARC Audio Extractor
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
Key Features
- ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analogue stereo output, for audio receiver/amplifier/headphones
- Support PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2 channel stereo audio output
- CEC Pass Through
- 2 Year Warranty
Description
The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
Specifications
| Inputs | |
|---|---|
| HDMI in | 1 |
| USB connector type | Micro-USB |
| Outputs | |
| Audio (L/R) out | 1 |
| Headphone out | Yes |
| Technical details | |
| Package width | 146 mm |
| Package height | 65 mm |
| Product colour | Silver |
| Certification | California Proposition 65 |
| Frequency range | 20 - 20000 Hz |
| Housing material | Plastic |
| Sustainability compliance | Yes |
| HDMI version | 1.4 |
| Chipset | SPHE8107S |
| CEC pass-through | Yes |
| Output impedance | 100 Ω |
| Supported sample rates | 192 kHz |
| Warranty period | 2 year(s) |
| Signal-to-Noise Ratio (SNR) | 101 dB |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Power | |
| Power consumption | 500 mA |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 65 mm |
| Height | 27 mm |
| Package depth | 105 mm |
| Package weight | 174 g |
| Package width | 146 mm |
| Package height | 65 mm |
| Weight | 81 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Colour | |
| Product colour | Silver |
| Certificates | |
| Certification | California Proposition 65 |
| Packaging data | |
| Package depth | 105 mm |
| Package weight | 174 g |
| Package width | 146 mm |
| Package height | 65 mm |
| Quantity | 1 |
| Cables included | USB Type-A to Micro-USB Type-B |
| Manual | Yes |
| Package type | Box |
