Description

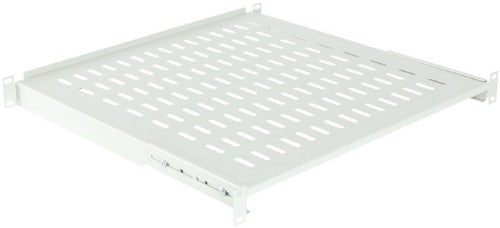

by Logon 1U 19" FRONT, 1U 19" REAR CONNECTED D=450mm SHELF
19" 4 point connected rack mount shelves for all cabinets
Dimensions(mm): W: 486 x D: 450 x H: 44
Maximum static load(kg): 50
Color: RAL 7035
Rack mounts with 4 point connections in total, as 2 on the front and 2 on the back, are cabinet shelves adaptable to all 19" cabinets and bearing ventilation slots thereon. By means of 2 depth adjustable side brackets at the back, they may be installed at various depths
Description
Model: Logon RAS405WH19" 4 point connected rack mount shelves for all cabinets
Dimensions(mm): W: 486 x D: 450 x H: 44
Maximum static load(kg): 50
Color: RAL 7035
Rack mounts with 4 point connections in total, as 2 on the front and 2 on the back, are cabinet shelves adaptable to all 19" cabinets and bearing ventilation slots thereon. By means of 2 depth adjustable side brackets at the back, they may be installed at various depths
Specifications
| Features | |
|---|---|
| Compatible rack width | 19" |
| Rack capacity | 1U |
| Maximum weight capacity | 50 kg |
| Product colour | White |
| Mounting hole shape | Oval |
| Harmonized System (HS) code | 9403208000 |
| Housing material | Steel |
| Weight & dimensions | |
| Package weight | 2.47 kg |
| Width | 486 mm |
| Weight | 2.4 kg |
| Height | 44 mm |
| Depth | 450 mm |
| Maximum weight capacity | 50 kg |
| Packaging data | |
| Package weight | 2.47 kg |
| Technical details | |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 486 x 450 x 44 mm |
| Static load | 50 |
| Colour | |
| Product colour | White |
| Logistics data | |
| Harmonized System (HS) code | 9403208000 |
| Other features | |
| Dimensions (WxDxH) | 486 x 450 x 44 mm |
| Static load | 50 |
