Description

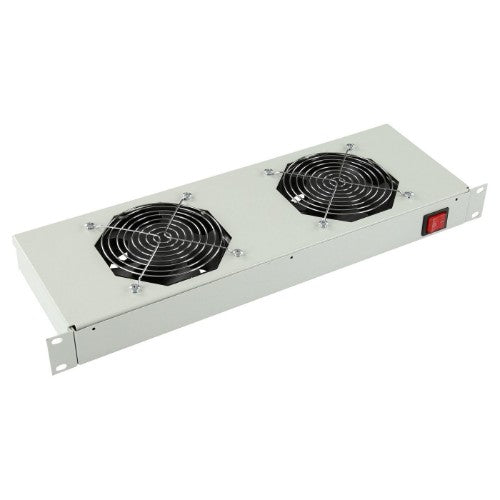

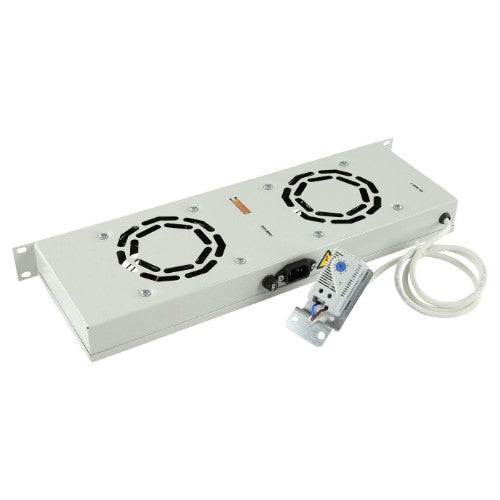

by Logon 2 FANS, ANALOG THERMOSTAT RACK MOUNT FAN MODULE 1U
2 Fan Module rack mounted module with analog thermostat
Specifications
2 Fans
Analog thermostat
Air Flow: 280m³/hour
Universal
Rack mounted 1U
RAL7035
Key Features
- 42,5db - 44,5db noise level
Description
MODEL: LOGON RAF115WH2 Fan Module rack mounted module with analog thermostat
Specifications
2 Fans
Analog thermostat
Air Flow: 280m³/hour
Universal
Rack mounted 1U
RAL7035
Specifications
| Features | |
|---|---|
| Compatible rack width | 19" |
| Number of fans | 2 fan(s) |
| International Protection (IP) code | IP20 |
| Airflow | 280 m³/h |
| Rack capacity | 1U |
| Product colour | White |
| Mounting hole shape | Oval |
| Harmonized System (HS) code | 8473302000 |
| Housing material | Steel |
| Noise level | 50 dB |
| Cooling | |
| Number of fans | 2 fan(s) |
| Airflow | 280 m³/h |
| Power | |
| AC input frequency | 50 Hz |
| Power plug type | Type F |
| Weight & dimensions | |
| Package weight | 2.8 kg |
| Width | 486 mm |
| Weight | 2.8 kg |
| Height | 44 mm |
| Depth | 133 mm |
| Packaging data | |
| Package weight | 2.8 kg |
| Technical details | |
| Rack capacity | 1U |
| Dimensions (WxDxH) | 486 x 133 x 44 mm |
| Colour | |
| Product colour | White |
| Logistics data | |
| Harmonized System (HS) code | 8473302000 |
| Other features | |
| Dimensions (WxDxH) | 486 x 133 x 44 mm |
