Description

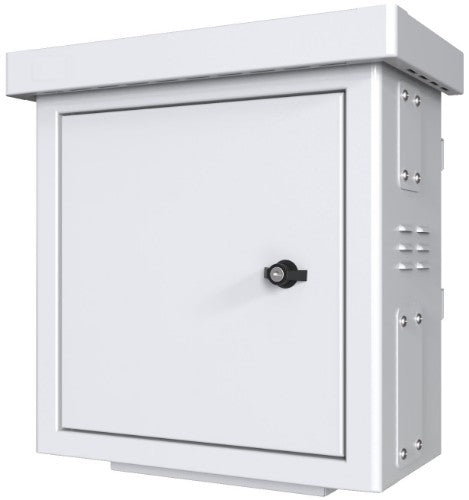

by Logon Mini Radius Pole Mounted CCTV Cabinet For 4 cameras
If you are looking for a durable and reliable camera cabinet that can withstand harsh weather conditions and external impacts, look no further than the Radius Series Pole Type Camera Cabinet.
This product offers a range of features that make it ideal for outdoor surveillance and security applications including four camera installation points, one of which is movable.
Features
The double wall structure and gaskets on the doors and top cap provides maximum weather and dust protection for active devices inside the cabinet by creating a layer of insulation between the inner and outer walls.
A fan module with 2 fans and a thermostat is provided to ensure that the devices inside the cabinet are cooled properly. The module features a replaceable ventilation filter inside the cabinet which prevents dust and water inlets without compromising sufficient airflow.
DIN rails are provided for the devices and electric equiments to be used inside the cabinet.

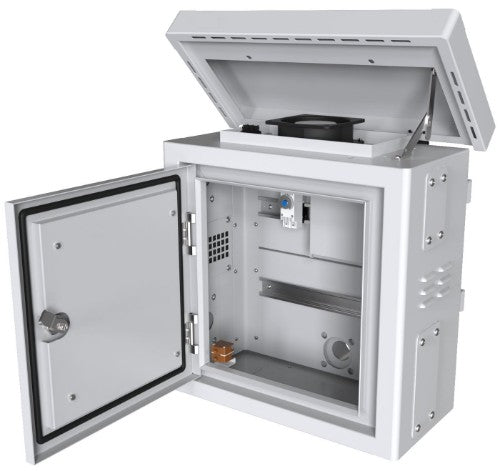

The hinged top cap enables you to open the top cap easily from inside the cabinet, so you can access the fan modules and other components without any hassle.
Oval corners allows Radius Camera Cabinets to be minimally affected by windy conditions.
Easy installation

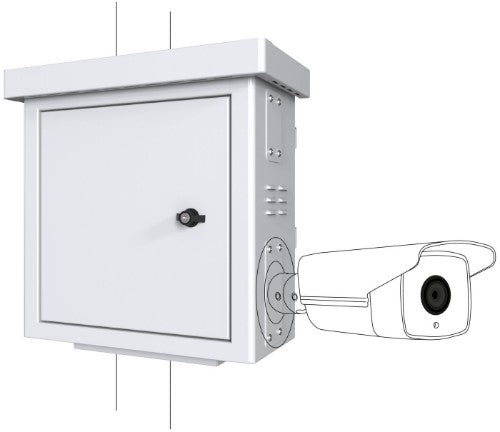

The pole installation allows you to fix the cabinet to the pole easily after the internal assembly is finished. You don't need any special tools or skills to install this product.
1. Steel Door
2. Pole mounting brackets included
3. Galvanized Steel
4. RAL7035
Key Features
- 1 Way fan with thermostat and IP filter
- Pole mounting brackets included
- Galvanized Steel
- 2 x Din Rails
- 1 x Door switch
Description
Product Dimensions: W:450 x D:250 x H:500mmIf you are looking for a durable and reliable camera cabinet that can withstand harsh weather conditions and external impacts, look no further than the Radius Series Pole Type Camera Cabinet.
This product offers a range of features that make it ideal for outdoor surveillance and security applications including four camera installation points, one of which is movable.
Features
The double wall structure and gaskets on the doors and top cap provides maximum weather and dust protection for active devices inside the cabinet by creating a layer of insulation between the inner and outer walls.
A fan module with 2 fans and a thermostat is provided to ensure that the devices inside the cabinet are cooled properly. The module features a replaceable ventilation filter inside the cabinet which prevents dust and water inlets without compromising sufficient airflow.
DIN rails are provided for the devices and electric equiments to be used inside the cabinet.
The hinged top cap enables you to open the top cap easily from inside the cabinet, so you can access the fan modules and other components without any hassle.
Oval corners allows Radius Camera Cabinets to be minimally affected by windy conditions.
Easy installation
The pole installation allows you to fix the cabinet to the pole easily after the internal assembly is finished. You don't need any special tools or skills to install this product.
1. Steel Door
2. Pole mounting brackets included
3. Galvanized Steel
4. RAL7035
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 500 mm |
| Package width | 300 mm |
| Package height | 550 mm |
| Package weight | 25 kg |
| Width | 450 mm |
| Depth | 250 mm |
| Height | 500 mm |
| Weight | 25 kg |
| Features | |
| Frame type | Closed |
| Rack capacity | 0U |
| International Protection (IP) code | IP66 |
| Front door construction | Steel |
| Material | Galvanized steel |
| Cooling type | Passive |
| Product colour | White |
| Packaging data | |
| Package depth | 500 mm |
| Package width | 300 mm |
| Package height | 550 mm |
| Package weight | 25 kg |
| Technical details | |
| Package width | 300 mm |
| Package height | 550 mm |
| Cooling type | Passive |
| Rack capacity | 0U |
| International Protection (IP) code | IP66 |
| Colour | |
| Product colour | White |
| Material | |
| Material | Galvanized steel |
