Description

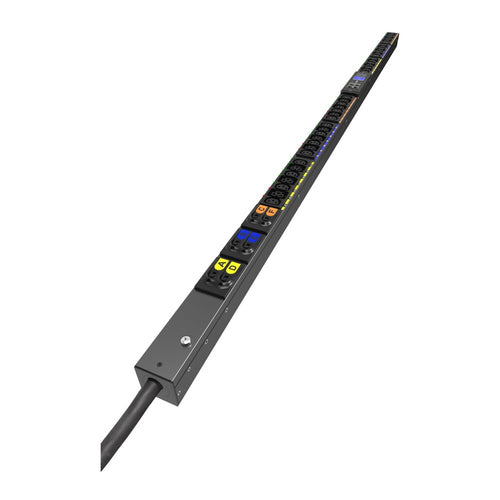

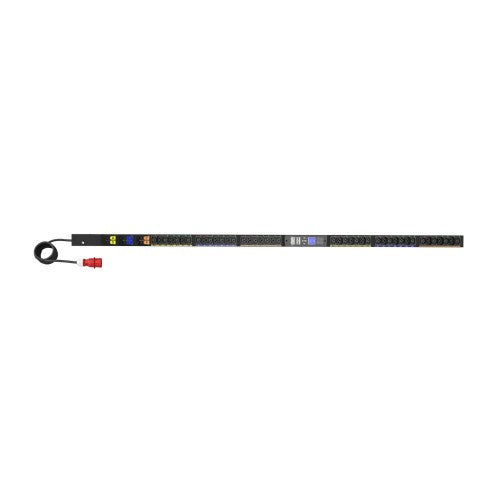

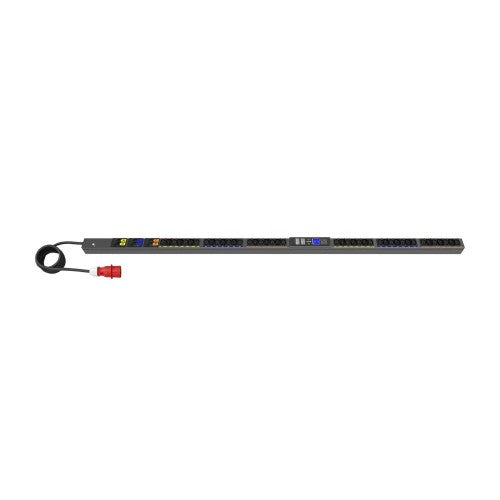

Managed G4 Rack PDU, 39U, 22 kW, 32 A, 21xC13, 18xC39, 3 m cord
Key Features
- Remote Site Management
- Versatile C39 outlet supports C14 or C20 power cord plug
- High retention outlets designed to securely fit standard power cords and support P-Lock power cords
- Cybersecurity standards UL 2900-1 and IEC 62443-4-2
- Hot-Swap network control module
- Network Cascading, connect up to 32 PDUs via network loop
- Power sharing between two network modules PDUs ensures constant access to PDU data & sensors
- 1% IEC Class 1 billing grade measurement accurancy
- Gigabit network card with 2x Gb ports
- Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
- 1% measurement accuracy at the outlet level (V, W, A)
- Outlets control for On/Off, reboot, and sequential start-up capabilities
Description
Specifications
| Design | |
|---|---|
| Type | Three-phase |
| PDU types | Managed |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Rack capacity | 39U |
| Housing material | Aluminium |
| Ports & interfaces | |
| USB ports quantity | 2 |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C39 coupler |
| Power plug | IEC 60309 |
| Ethernet LAN (RJ-45) ports | 4 |
| Features | |
| Cable length | 3 m |
| Colour-coded outlets | Yes |
| Security algorithms | SNMP |
| Management features | |
| Supported network protocols | HTTPS |
| Ergonomics | |
| Cable length | 3 m |
| Display | LCD |
| Power | |
| Maximum power | 22000 W |
| Nominal input voltage | 240/415 V |
| Maximum current | 32 A |
| AC input frequency | 50/60 Hz |
| Packaging content | |
| Manual | Yes |
| Packaging content | Rack PDU Rack mounting accessories Quickstart guide Safety Instructions |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Security | |
| Security algorithms | SNMP |
