5-Port 10/100Mbps Desktop Fast Ethernet Switch
Key Features
- 5 10/100Mbps TP interfaces
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Supports 2K absolute MAC address
- Automatic address learning and address aging
- Supports Automatic MDI/MDI-X function
- Full/half-duplex capability on each TX port
- LED indicators for simple diagnostics and management
- FCC Class B, CE compliant
Description

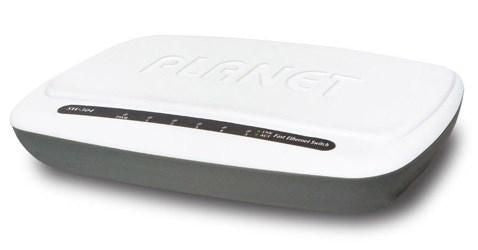

With concepts of "Easy to install and use", "Compact-sized design", and "Simple troubleshooting", PLANET SW-504 provides cost-conscious business and home users with the foundation of an integrated system of small-office / home-office networking. The SW-504 is a fancy-shaped plastic model, which is just right for your network of 10 to 50 users.
The SW-504 Desktop Fast Ethernet Switch is simple and cost-effective, and offers highly reliable network . And it is the ideal device for bridging Ethernet and Fast Ethernet workgroups or networks. Therefore, PLANET SW-504 switch will be recognized as one of the most important building blocks for today’s networking technology.
To segment the network and ease the network traffic, the 5-port 10/100Mbps is useful for the SOHO switched networks as the friendly network backbone. With LED indicators, the network status can be monitored at a glance.
Specifications
| Technical details |
|---|
| Product colour |
White |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Throughput |
0.744 Mpps |
| MAC address table |
2000 entries |
| Switching capacity |
1 Gbit/s |
| Store-and-forward |
Yes |
| Certificates |
|---|
| Certification |
FCC Part 15 Class B, CE |
| Design |
|---|
| Product colour |
White |
| LED indicators |
Yes |
| Certification |
FCC Part 15 Class B, CE |
| Performance |
|---|
| Harmonized System (HS) code |
85176990 |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Power consumption (typical) |
3.7 W |
| Input current |
1 A |
| DC input voltage |
5 V |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
168 mm |
| Depth |
100 mm |
| Height |
29 mm |
| Weight |
142 g |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Packaging content |
|---|
| AC adapter included |
Yes |
